Martin M6 Instructions Manual

Replacing the dongle

Hide thumbs Also See for M6:

Download this manual

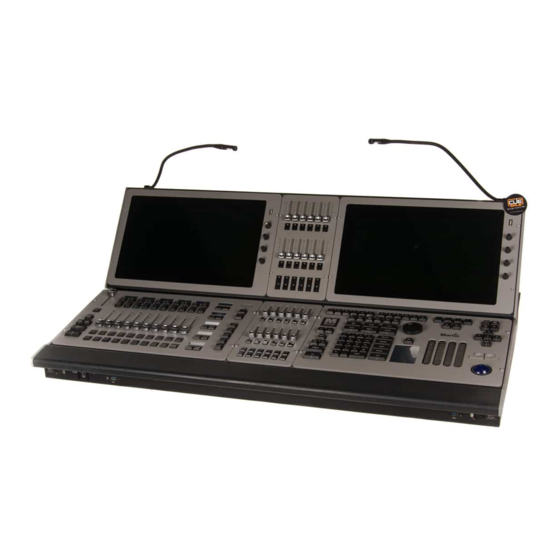

M6™ Controller

Replacing the dongle with a new dongle version

Symptom

users that have to replace the dongle with a new version of the dongle must read the

instructions below to correctly replace the dongle with this new version.

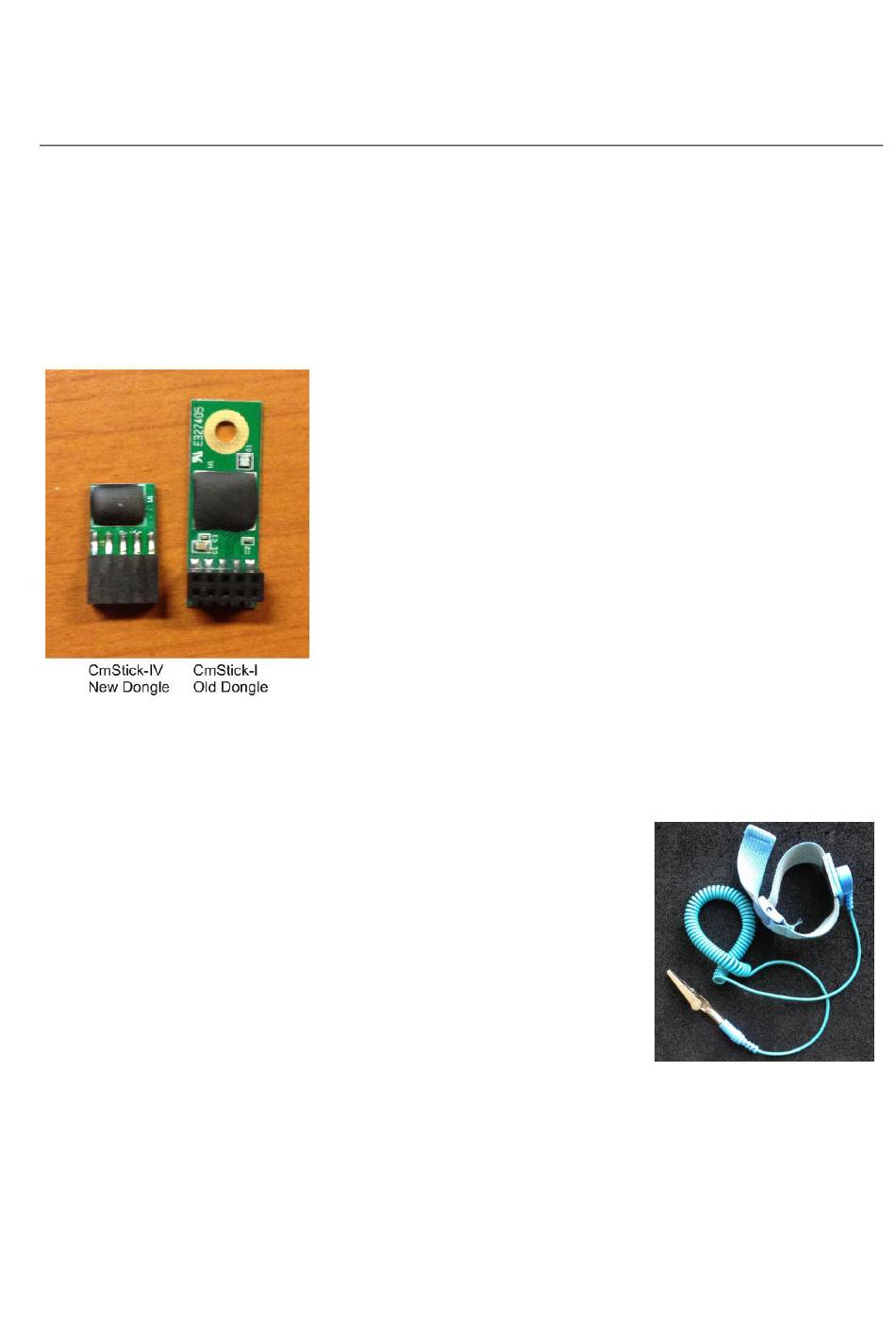

Old dongle and new dongle

Anti-Static Precautions

Important! Static electricity can destroy electronic

components. Follow these ESD precautions to prevent damage

to the product and injury to the user.

Carry out the service at an anti-static workstation.

Wear a grounded anti-static wristband.

Touch a grounded conductor every few minutes to discharge any

static buildup.

Hold components by their edges only. Do not touch the surfaces or

any of the contacts of the PCBs.

Need help?

Do you have a question about the M6 and is the answer not in the manual?

Page 1 M6™ Controller Replacing the dongle with a new dongle version Symptom users that have to replace the dongle with a new version of the dongle must read the instructions below to correctly replace the dongle with this new version. Old dongle and new dongle...
Page 2: Package Contents
Package contents 1x Dongle : 70758580 Tools www.martin.com • Olof Palmes Allé 18 • DK-8200 Aarhus N • Denmark Tel. (+45) 8740 0000 • Fax (+45) 8740 0010...
Page 3 2. Remove the right hand back cover from the controller: unscrew 7 screws (Use a torx T-10) www.martin.com • Olof Palmes Allé 18 • DK-8200 Aarhus N • Denmark Tel. (+45) 8740 0000 • Fax (+45) 8740 0010...
Page 4 3. Slide the cover plate from the controller 4. Locate and remove the old dongle from the DMX board www.martin.com • Olof Palmes Allé 18 • DK-8200 Aarhus N • Denmark Tel. (+45) 8740 0000 • Fax (+45) 8740 0010...
Page 5 6. Power up the controller and go into a show. Check the status field on the screen. It must say ‘LIVE’ 7. Close the controller. www.martin.com • Olof Palmes Allé 18 • DK-8200 Aarhus N • Denmark Tel. (+45) 8740 0000 • Fax (+45) 8740 0010...
Page 6 • Olof Palmes Allé 18 • DK-8200 Aarhus N • Denmark Tel. (+45) 8740 0000 • Fax (+45) 8740 0010...
