M6™ Controller
Power cycle reliability improvement

Symptom

TM
In some M6
controllers, the mainboard may not start-up while all other parts of the controller
are powered-up normally.

Solution

Jumper J_ATXCTL1 must be set from position 1-2 to position 2-3.

Anti-Static Precautions

Important! Static electricity can destroy electronic
components. Follow these ESD precautions to prevent damage
to the product and injury to the user.
Carry out the service at an anti-static workstation.

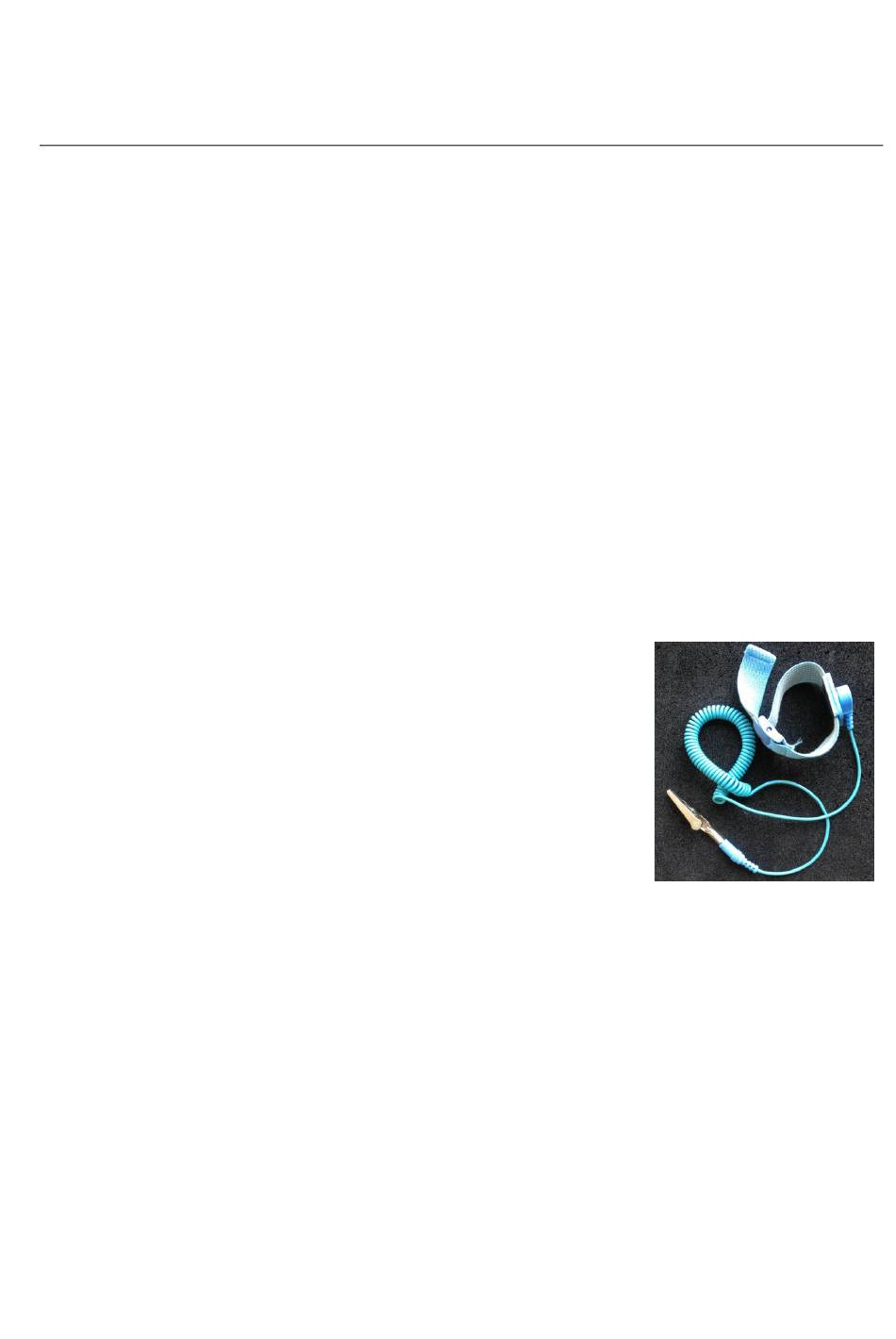

Wear a grounded anti-static wristband.
Touch a grounded conductor every few minutes to discharge any
static buildup.
Hold components by their edges only. Do not touch the surfaces or
any of the contacts of the PCBs.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M6 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Martin M6 Series

  • Page 1 M6™ Controller Power cycle reliability improvement Symptom In some M6 controllers, the mainboard may not start-up while all other parts of the controller are powered-up normally. Solution Jumper J_ATXCTL1 must be set from position 1-2 to position 2-3. Anti-Static Precautions Important! Static electricity can destroy electronic components.
  • Page 2 (seen from the back of the controller): unscrew 5 screws (Use a torx T-10) 3. Slide the cover plate from the controller www.martin.com • Olof Palmes Allé 18 • DK-8200 Aarhus N • Denmark Tel. (+45) 8740 0000 • Fax (+45) 8740 0010...
  • Page 3 4. Locate Jumper “J_ATXCTL1” on the mainboard (see arrow). www.martin.com • Olof Palmes Allé 18 • DK-8200 Aarhus N • Denmark Tel. (+45) 8740 0000 • Fax (+45) 8740 0010...
  • Page 4 9. Power-on again (mains switch on the front). The mainboard should now start automatically. 10. Power-off again and close the controller. www.martin.com • Olof Palmes Allé 18 • DK-8200 Aarhus N • Denmark Tel. (+45) 8740 0000 • Fax (+45) 8740 0010...
