DURADRIVE HDC01.1 Drive Controller
Data rate, transmitter power
Position of switch
Data rate
LSA Control S.L. www.lsa-control.com comercial@lsa-control.com (+34) 960 62 43 01
Switch S20
The transmitter power and the data rate for the SERCOS interface are set
with the switch S20.
The HDC is factory set to an average transmitter power (-4.5 dBm) and
the lowest data rate(2 Mbit/s).
The switches are in OFF position if the switch lever is facing the rear (rear
panel). Switch S20/1 is down (see marking on the unit).
Distortion LED of the
SERCOS interface
ERROR
H20
3
2
1

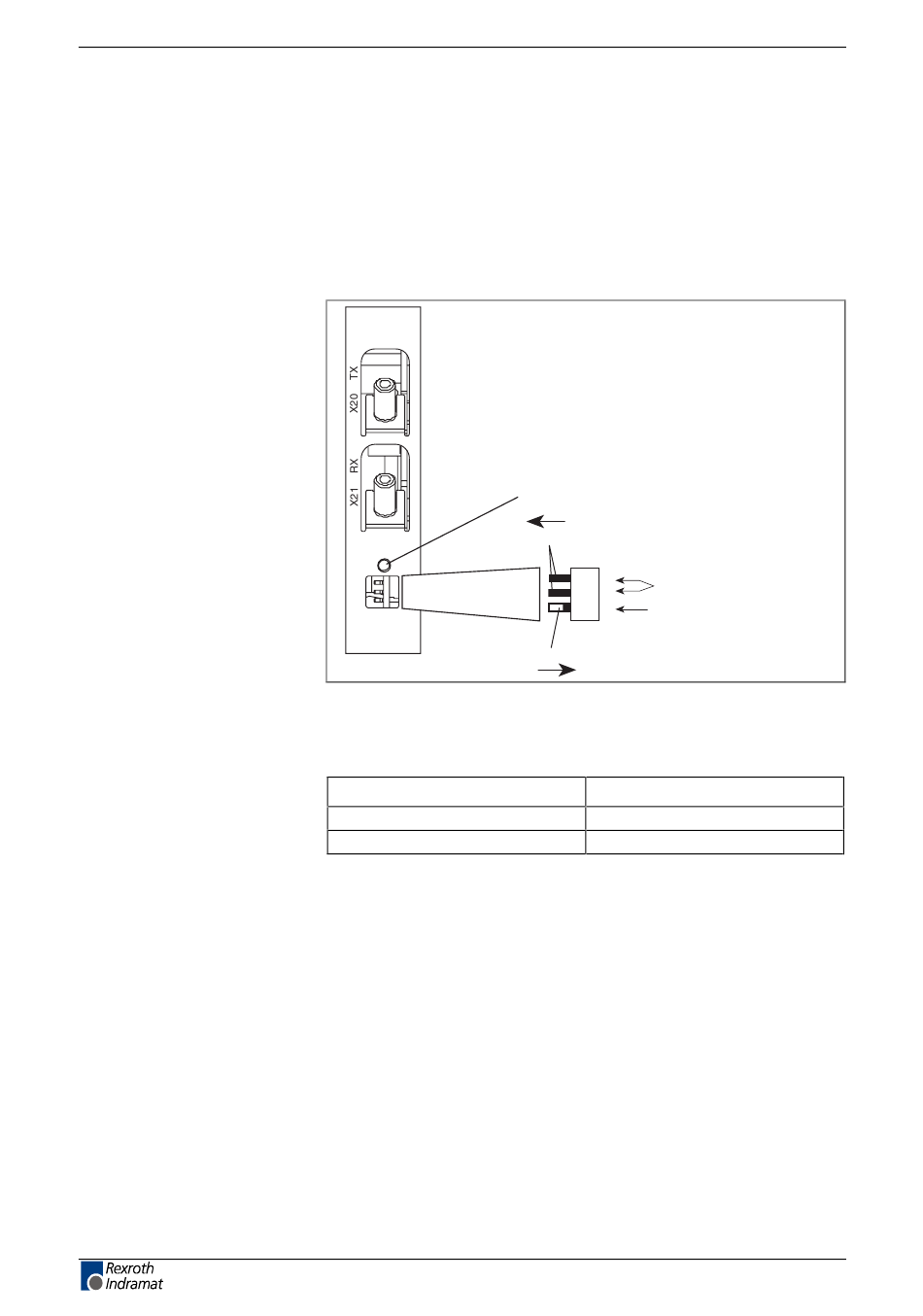

Fig. 4-121: Position of the switch for data rate and transmitter power
demonstrating how to switch it ON and OFF
The data rate is set with the switch S20/1.
Position of switch S20/1
OFF
ON
Fig. 4-122: Relationship between switch position S20/1 and the data rate
DURADRIVE Drive Controllers
OFF
S20
3
Switch for setting the transmitter power
2
1 Switch for setting the data rate
ON
Data rate in Mbit/s
2
4
