DURADRIVE Drive Controllers
X13, Mains connection
Illustration
Connection
X14, Ventilator connection
DOK-DURADR-HDC01.1****-PR02-EN-P
LSA Control S.L. www.lsa-control.com comercial@lsa-control.com (+34) 960 62 43 01
Technical description of connector

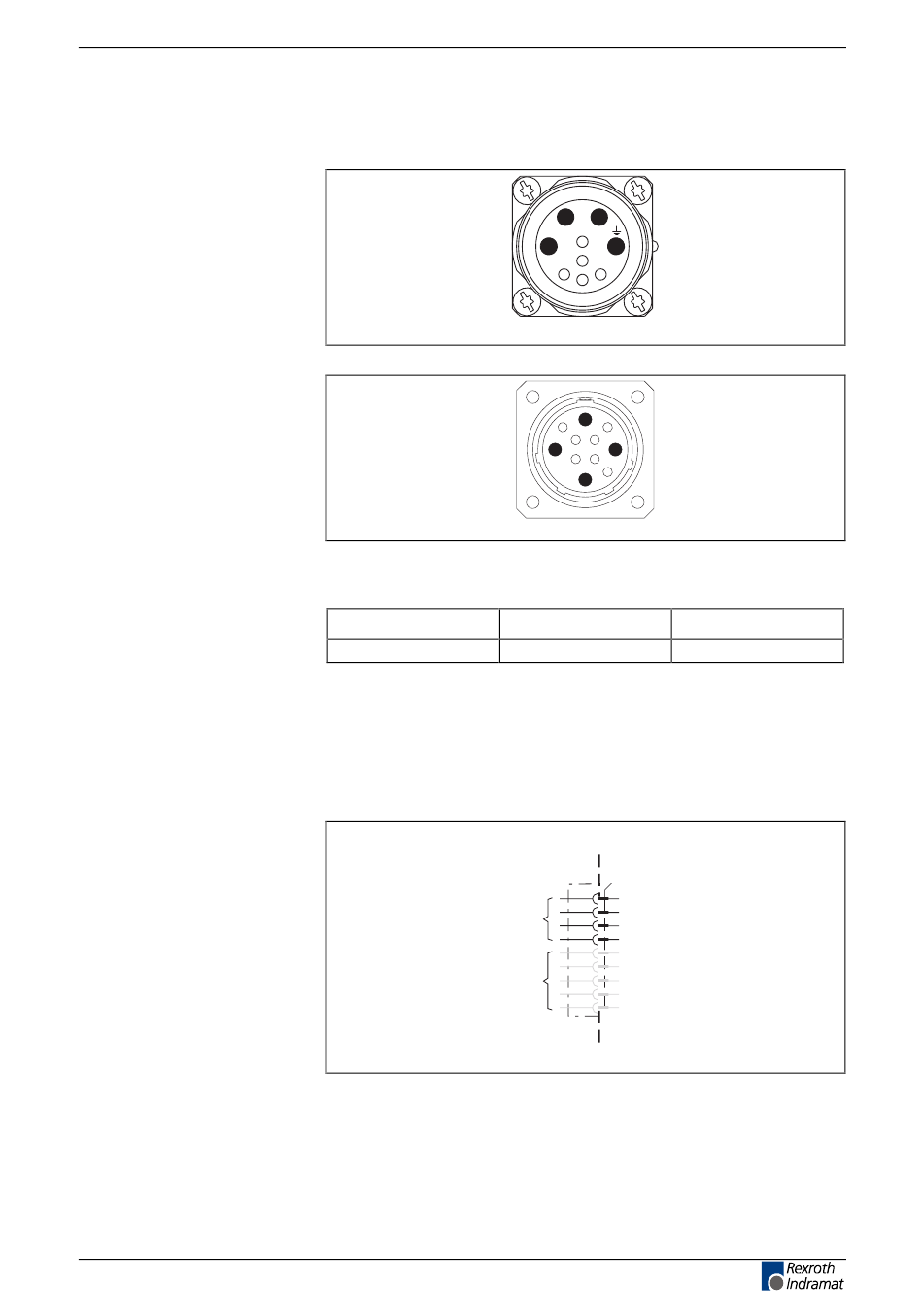

Fig. 4-107: Connector X13 (HDC01.1-A040N)
Fig. 4-108: Connector X13 (HDC01.1-A100/200N)
Design
Type
Circular connector
Fig. 4-109: Design
Mains connection
The mains connector serves as the connection of the drive controller with
the power supply.
Mains
Fig. 4-110: Mains connection
See also page 7-1: "Mains Connections"
DURADRIVE HDC01.1 Drive Controller
B
C
G
A
F
L
E
H
AP5354F1.FH7
D
F
H E
G
C
J
K
L
B
AP5379F1.FH7
No. of pins
4
device-external
X13
A
B
mains connection
C
D
E
F
G
not fitted
H
I
D
A
Design
Pins on unit
device-internal
L1
L2
L3
PE
AP5367F1.FH7
4-61
