Ergotron StyleView LiFe Power Upgrade System Installation Manual page 11

CARTS WITH DUAL T-SLOTS ON REAR OF CART:
SV31
NEO-FLEX WIDEVIEW
WORKFIT C
Double T-slot bracket -
ordered separately
(For center mounting
on back of cart)
4

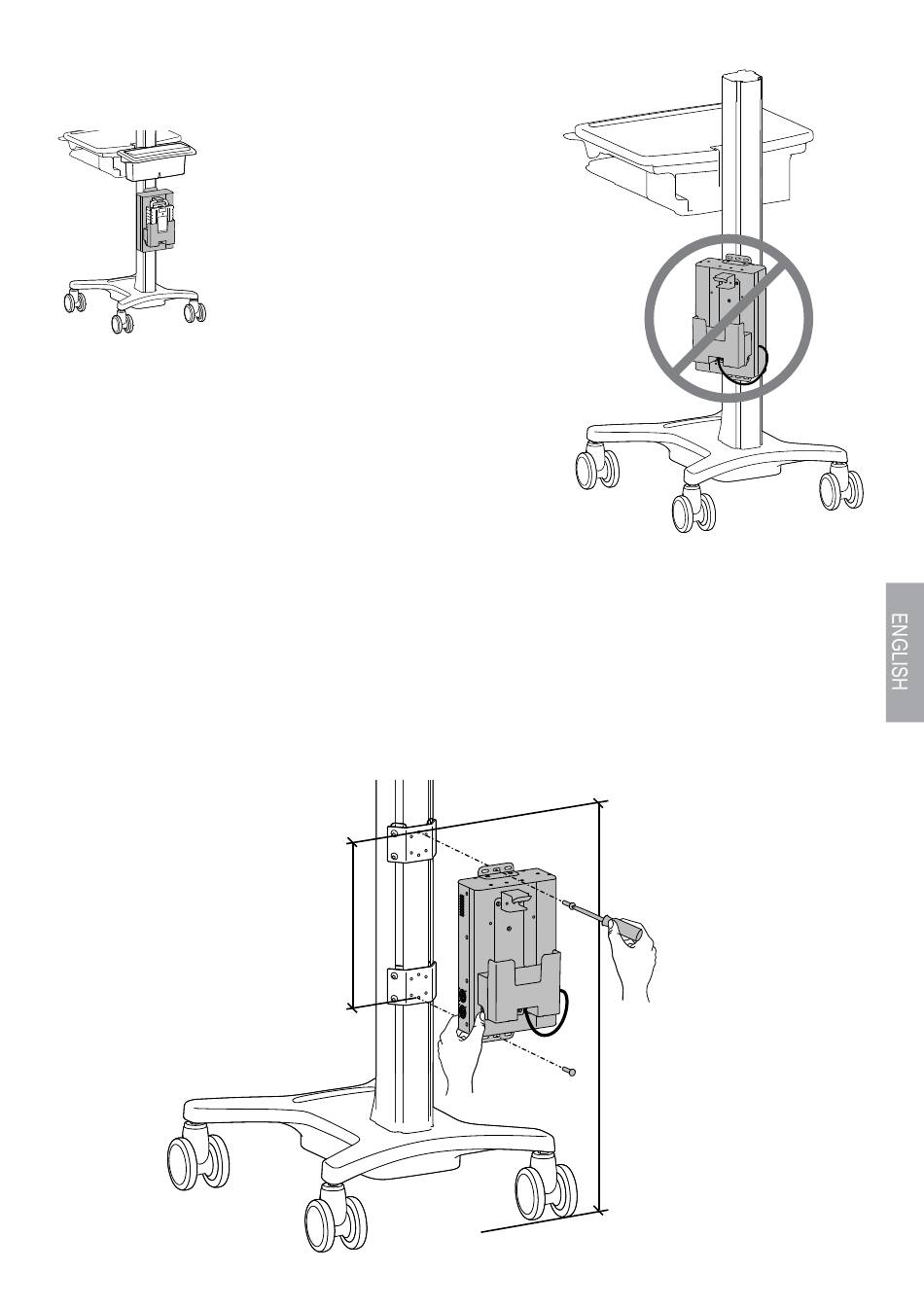

Follow instructions provided with the
mounting brackets.
5
Attach power module to mounting brackets.
888-83-072-G-01 rev. D• 01/15
CAUTION: TIPPING HAZARD
DO NOT mount off-center
on either rear corner of cart. Doing
so will create an unstable situation
and may result in personal injury or
equipment damage.
15.25"
(387 mm)
32"
(813 mm)
11 of 17
