Ergotron StyleView Hot Swap Power system User Manual

120wh li-ion battery

Advertisement

Quick Links

The StyleView Hot Swap Power System is intended to provide DC power to
For the latest User Installation Guide please visit: www.ergotron.com
User's Guide - English
Guía del usuario - Español
Manuel de l'utilisateur - Français
Gebruikersgids - Nederlands
Benutzerhandbuch - Deutsch
Guida per l'utente - Italiano
Användarhandbok - svenska
ユーザーガイ ド : 日本語
用户指南 : 汉语
888-83-071-G-00 rev. B • 11/13
StyleView Hot Swap Power system
support DC powered computer equipment.
User's Guide
120Wh Li-Ion battery
1 of 13

Advertisement

loading
Need help?

Need help?

Do you have a question about the StyleView Hot Swap Power system and is the answer not in the manual?

Questions and answers

Summary of Contents for Ergotron StyleView Hot Swap Power system

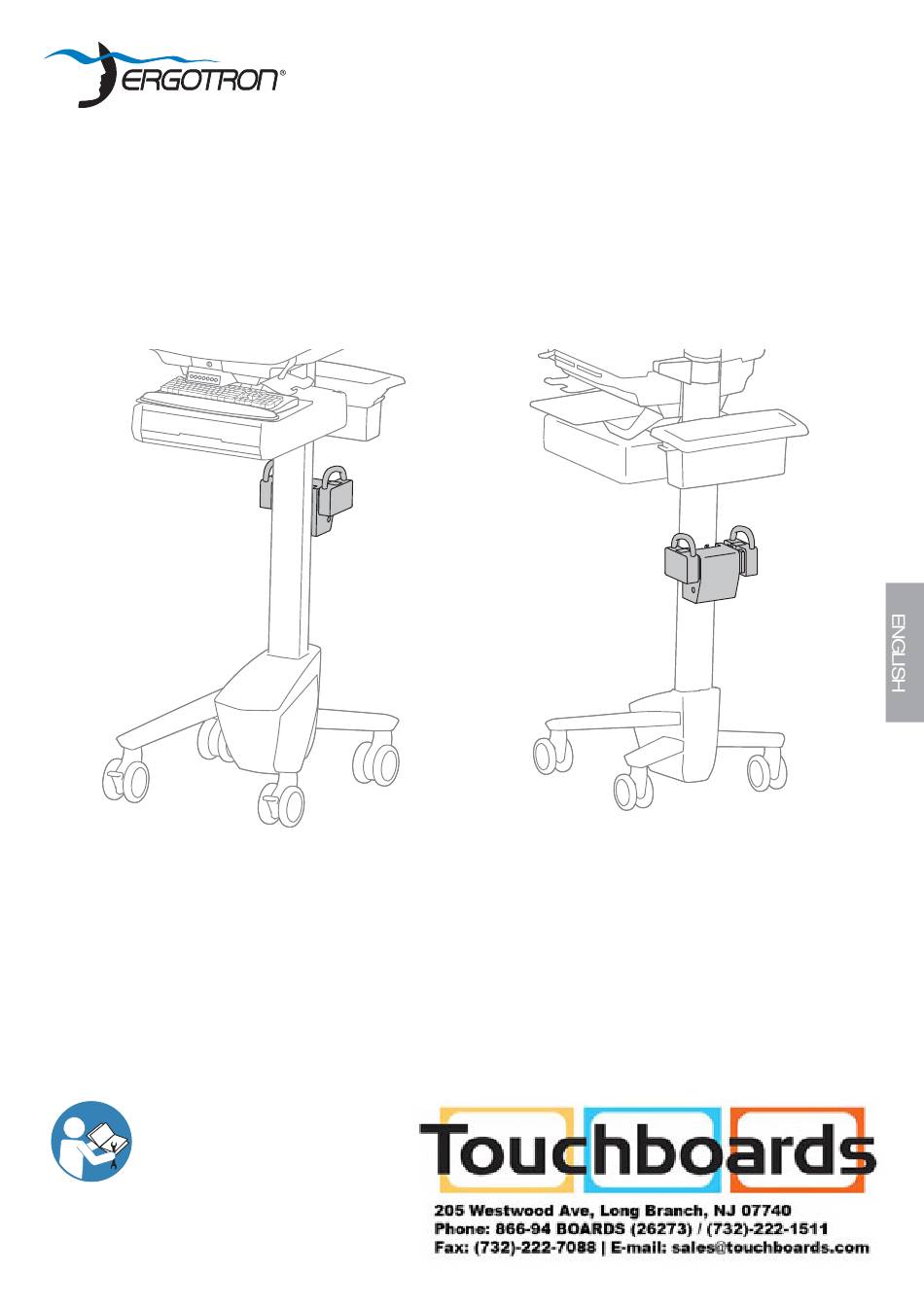

  • Page 1 User's Guide StyleView Hot Swap Power system 120Wh Li-Ion battery The StyleView Hot Swap Power System is intended to provide DC power to support DC powered computer equipment. For the latest User Installation Guide please visit: www.ergotron.com User's Guide - English Guía del usuario - Español...
  • Page 2: Features And Specifications

    Safety • Never remove both batteries from the docking station at one time or power will be lost. • The system works best when both batteries are swapped with fully charged replacements. • When not using the battery for long periods, battery should be fully charged before storage. WARNING: DO NOT charge batteries with any other charger other than 97-808.
  • Page 3: Tools Needed

    Components Components purchased separately M5 x 10mm M5 x 10mm PENTA M4 x 12mm Tools Needed CHARGE BATTERIES Nominal charge time*: 3.5 hours from 0% - 100% - Steady GREEN 3 hours from 0% - 85% - Flashing GREEN *Charge time can vary depending on age, condition and remaining capacity of each battery at the time it is placed on the charger.
  • Page 4 SV40/SV41 180˚ M5 x 10mm PENTA M5 x 10mm 32" (813 mm) 888-83-071-G-00 rev. B • 11/13 4 of 13...
  • Page 5 SV40/SV41 43" (1092 mm) Attach user interface to worksurface as shown for each confi guration. 888-83-071-G-00 rev. B • 11/13 5 of 13...
  • Page 6 SV40/SV41 Open worksurface. To increase space and improve airfl ow, adapters may be stored under the storage area. LCD Carts Laptop Carts M4 x 12mm M4 x 12mm 888-83-071-G-00 rev. B • 11/13 6 of 13...
  • Page 7 SV40/SV41 Route cables into storage compartment and plug Ethernet cable into user interface and power cables into DC adapters. NOTE: Leave enough slack in cable to allow for full lift motion of cart! Close worksurface. 888-83-071-G-00 rev. B • 11/13 7 of 13...
  • Page 8 BATTERY ATTACHMENT/REMOVAL After batteries are fully charged, remove batteries from charger. Attach batteries to cart. How to remove batteries from cart. END OF INSTALLATION 888-83-071-G-00 rev. B • 11/13 8 of 13...
  • Page 9 CARTS WITH DUAL T-SLOTS ON REAR OF CART: SV31 NEO-FLEX WIDEVIEW WORKFIT C Double T-slot bracket - Single T-slot bracket - ordered separately see page 10 (For center mounting (For off-center mounting on back of cart) on either rear corner of cart) Follow instructions provided with the mounting brackets.
  • Page 10 CARTS WITH DUAL T-SLOTS ON REAR OF CART: How to remove the basket and handle on SV31 carts: 180˚ How to remove the handle on NEO-FLEX WIDEVIEW carts: M5 x 10mm PENTA M5 x 10mm 32" (813 mm) 888-83-071-G-00 rev. B • 11/13 10 of 13...
  • Page 11 CARTS WITH DUAL T-SLOTS ON REAR OF CART: Attach user interface. Route cables a. If using DC Adapters, attach the two available power cables to those. b. Route Ethernet cable to user interface. NOTE: Leave enough slack in cable to allow for full lift motion of cart! END OF DUAL T-SLOT INSTALLATION - SEE PAGE 8 FOR BATTERY ATTACHMENT/REMOVAL STEPS 888-83-071-G-00 rev.
  • Page 12 NEO-FLEX NEO-FLEX Mounting brackets ordered separately 32" 7.5" (813 mm) Follow instructions provided with (190 mm) the mounting brackets. Attach user interface. Route cables a. If using DC Adapters, attach the two available power cables to those b. Route Ethernet cable to user interface NOTE: Leave enough slack in cable to allow for full lift motion of cart! END OF NEO-FLEX CART INSTALLATION - SEE PAGE 8 FOR BATTERY ATTACHMENT/REMOVAL STEPS...
  • Page 13 For local customer care phone numbers visit: http://contact.ergotron.com NOTE: When contacting customer service, refer- ence the serial number. 888-83-071-G-00 rev. B • 11/13 13 of 13...
