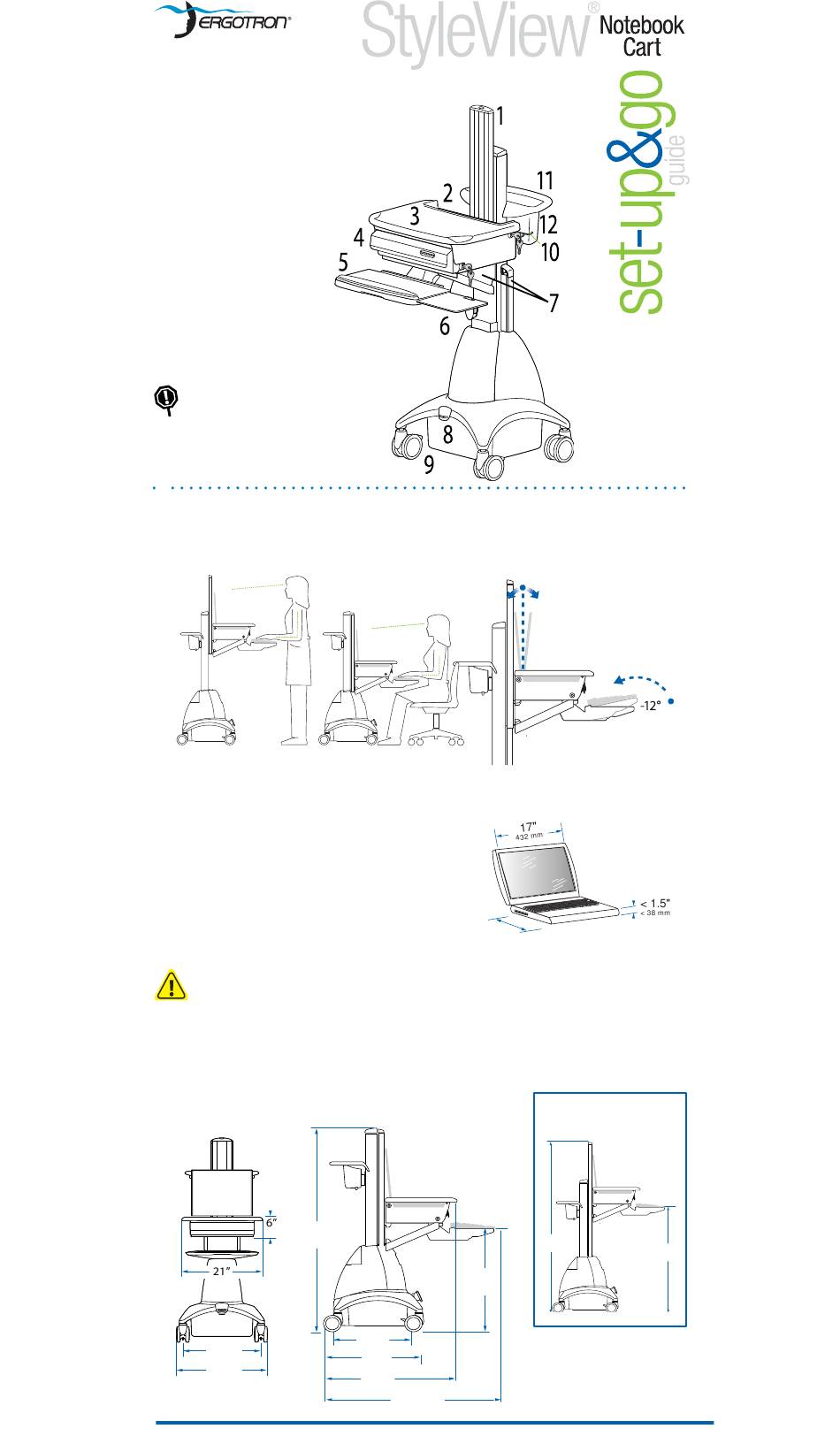

- SV21-91008
1
Riser
2
Notebook Enclosure
3
Worksurface
4
Electronic Autolock Drawer
5
Tilting Keyboard Tray and Wrist Rest
6
Right/Left Mouse Tray and Holder
7
Cable Management
8
Riser Lift Brake
9
Locking Front Casters
10
Scanner Holder Bracket
11
Ergonomic Rear Handle
12
Storage Basket
Please read all parts of this guide.
When set-up is complete, do not discard
this guide. The guide should be fi led in a
secure place for future reference.
Cart Specifi cations
Range of motion
Vertical Adjustment Range: 20" (508 mm)
STAND
Weight capacities
Notebook
6-18 lbs
Drawer
Worksurface
CPU Holder
Keyboard Tray
Mouse Holder
Scanner Holder
Basket
CAUTION: The lift brake locks vertical lift of riser during normal use but it DOES NOT increase
load capacity. DO NOT load riser with equipment totalling more than the maximum weight
capacity specifi ed by Ergotron. Ensure optimum lift function by testing and if necessary, re-adjusting
tension whenever the weight mounted to the riser changes (i.e., equipment is removed or added). See
"Set Riser Lift Tension" adjustment instructions in step 7 on page 4.
Dimensions
Riser in Lowest Position
50.8"
157 mm
1290 mm
533 mm
18"
457 mm
21"
533 mm
1 1
SIT
2.72-8.26 kg
4 lbs
1.8 kg
2.5 lbs
1.1 kg
25 lbs
11 kg
2.5 lbs
1.1 kg
.5 lb
.23 kg
.5 lb
.23 kg
5 lbs
2.3 kg
610 mm
18"
457 mm
22.3"
566 mm
28"
711 mm
38"
965 mm
EN
Tilt: ±15° Viewing Angle
Based on a 10" High x 1/2"
deep Notebook
Keyboard Tray Tilt: -12°
Maximum
Notebook Size
12.5
"
318 mm
Riser at Full Height
70.5"
1791 mm
24"
For more information
on this or other Ergotron
products, visit our website:
www.ergotron.com
888-SV-21MN-00 rev C
44"
1118 mm
