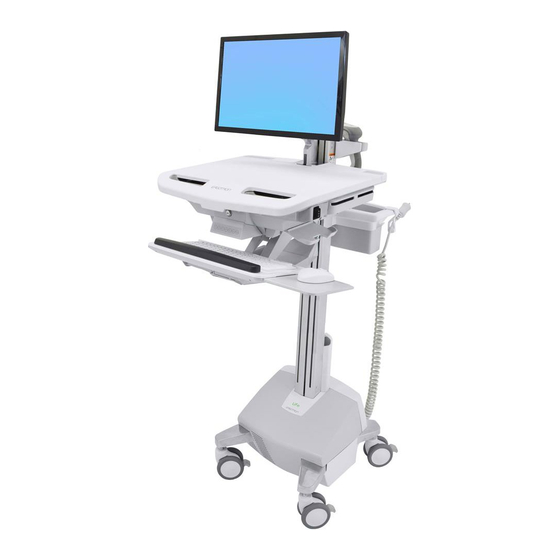

Ergotron StyleView SV42 LiFE Tech Sheet

Lift engine replacement for life powered carts
Hide thumbs Also See for StyleView SV42 LiFE:

Advertisement

Quick Links

Download this manual

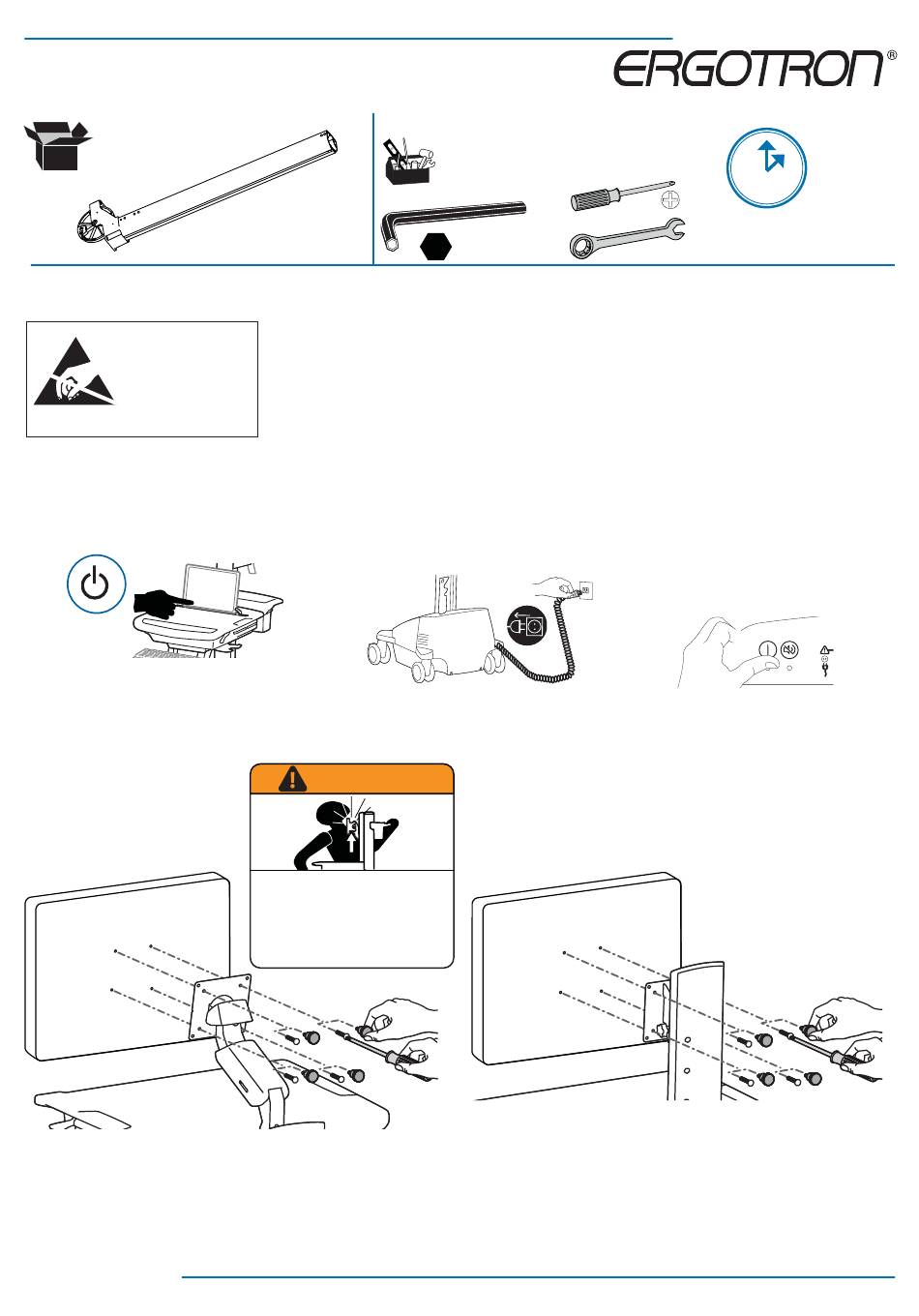

Tech Sheet
StyleView SV42 LiFE, LCD
Lift Engine Replacement for LiFe Powered Carts
1x
This product uses semiconductors that can be damaged by electrostatic discharge (ESD).
Always handle with care to avoid damage to electrostatic-sensitive components.
ATTENTION
OBSERVE PRECAUTIONS
ELECTROSTATIC
SENSITIVE DEVICES
827-181-00
1
Turn off all mounted equipment.
4
Remove monitor.
888-05-053-G-00 rev. A • 02/15
To prevent equipment damage, discharge body static before handling
the printed circuit boards or any module containing a printed
circuit board. To discharge body static, use a conductive wrist strap
attached to a good earth ground or discharge body static by touching
a grounded bare metal surface. Handle printed circuit boards or
modules by their edges once removed from protective antistatic bags.
2
Disconnect Power System
from power source.
WARNING
Impact Hazard!
Moving Parts can Crush and Cut.
Raise monitor to top of vertical
adjustment BEFORE removing.
Failure to heed this warning may result in
serious personal injury or property damage!
822-310
Estimated Completion Time
5/32" (4mm)
13mm
3
60
minutes
Turn power system off by
holding down the AC Outlet
Power button for 1 - 3 seconds.
Power light will shut off .
1/19

Advertisement

loading
Need help?

Need help?

Do you have a question about the StyleView SV42 LiFE and is the answer not in the manual?

Questions and answers

Related Manuals for Ergotron StyleView SV42 LiFE

Summary of Contents for Ergotron StyleView SV42 LiFE

  • Page 1 Tech Sheet StyleView SV42 LiFE, LCD Lift Engine Replacement for LiFe Powered Carts Estimated Completion Time minutes 5/32" (4mm) 13mm This product uses semiconductors that can be damaged by electrostatic discharge (ESD). Always handle with care to avoid damage to electrostatic-sensitive components.

  • Page 2: Rear View

    Tech Sheet StyleView SV42 LiFE, LCD Remove rear base cover. Remove front base cover. FRONT VIEW REAR VIEW Remove power module bracket. Remove battery bracket. Unplug all cables and remove power module. Coiled Cord Outlet Box Battery Cables RUI "Grey" Comm 1 RUI "Black"...
  • Page 3 Tech Sheet StyleView SV42 LiFE, LCD Remove cam cover. Remove cable routing channels. Remove basket and handle. 180˚ 888-05-053-G-00 rev. A • 02/15 3/19...
  • Page 4 Tech Sheet StyleView SV42 LiFE, LCD Open worksurface. Unlock CPU and remove all contents in the storage area. Remove ground wire if present, then remove the four screws and Arm or Lift. If removed, save the star washer from the ground wire for reattachment.
  • Page 5 Tech Sheet StyleView SV42 LiFE, LCD Remove left rear worksurface portion and save for attachment to the new head unit. If present, disconnect the two UI cables and pull them down and out through the bottom of the head unit.
  • Page 6 Tech Sheet StyleView SV42 LiFE, LCD Unplug all cables from drawer controller. Pull cable up into storage area. Disconnect power cable. 888-05-053-G-00 rev. A • 02/15 6/19...
  • Page 7 Tech Sheet StyleView SV42 LiFE, LCD Remove bottom drawer cabinet. If you do not have a bottom drawer - continue to step 21. Remove the top drawer(s). Unscrew the bottom cabinet M4 x 12mm Slide bottom cabinet off . 888-05-053-G-00 rev. A • 02/15...
  • Page 8 Tech Sheet StyleView SV42 LiFE, LCD Remove bottom drawer cabinet from lift engine. If you do not have a bottom drawer - continue to step 22 Disengage brake cable. Remove brake cover. 888-05-053-G-00 rev. A • 02/15 8/19...
  • Page 9 Tech Sheet StyleView SV42 LiFE, LCD Loosen nut. 13mm Remove ball end of cable from brake. Remove the bottom 2 screws from the head unit. 888-05-053-G-00 rev. A • 02/15 9/19...
  • Page 10 Tech Sheet StyleView SV42 LiFE, LCD 5/32" (4mm) Loosen screws Lift head unit off Remove screws. Unscrew and remove lift engine. 888-05-053-G-00 rev. A • 02/15 10/19...
  • Page 11 Tech Sheet StyleView SV42 LiFE, LCD Insert new lift engine and screw in. Hang head unit on screws. Insert two screws and leave them protruding to allow head unit to hang on them. Attach the two bottom screws and if removed, attach the ground wire with star washer, then tighten top two screws.
  • Page 12 Tech Sheet StyleView SV42 LiFE, LCD Engage brake cable. Insert ball end of cable into brake. 13mm Tighten cable tension tighten nut. (do not tigthten nut at this time). Replace brake cover. 888-05-053-G-00 rev. A • 02/15 12/19...
  • Page 13 Tech Sheet StyleView SV42 LiFE, LCD Attach drawer cabinet to lift engine. If you do not have a drawer - skip to step 33. Slide the bottom drawer cabinet only halfway onto the bottom tracks of the top drawer. If you do not have a bottom drawer skip to step 32.
  • Page 14 Tech Sheet StyleView SV42 LiFE, LCD Screw in bottom cabinet. Slide bottom drawer on all the way. M4 x 12mm Slide all drawers into the cabinet. Pull cable down through storage area. Plug in drawer keypad cable, and USB cable.
  • Page 15 Tech Sheet StyleView SV42 LiFE, LCD Replace drawer controller cover. Reconnect power cable. If you disconnected the 2 UI cables, route them up into the new head unit and connect to the left rear worksurface portion you previously removed. 888-05-053-G-00 rev. A • 02/15...
  • Page 16 Tech Sheet StyleView SV42 LiFE, LCD Attach the left rear worksurface portion to the head unit. Plug in all cables from the USB hub. Reattach arm or lift with the 4 screws and ground wire with star washer. 5/32" (4mm) 888-05-053-G-00 rev.
  • Page 17 Tech Sheet StyleView SV42 LiFE, LCD Replace basket and handle. Replace cam cover. Replace cable channels. 888-05-053-G-00 rev. A • 02/15 17/19...
  • Page 18 Tech Sheet StyleView SV42 LiFE, LCD Replace power module and plug in cables. Coiled Cord Outlet Box Battery Cables RUI "Grey" Comm 1 RUI "Black" Comm 2 CAT5 "Yellow" Therm 1 Replace power module bracket. Replace battery bracket. Replace front base cover.
  • Page 19 Tech Sheet StyleView SV42 LiFE, LCD WARNING Reattach monitor. Impact Hazard! Moving Parts can Crush and Cut. Raise monitor to top of vertical adjustment BEFORE removing. Failure to heed this warning may result in serious personal injury or property damage! 822-310 Replace all contents in the storage area.
