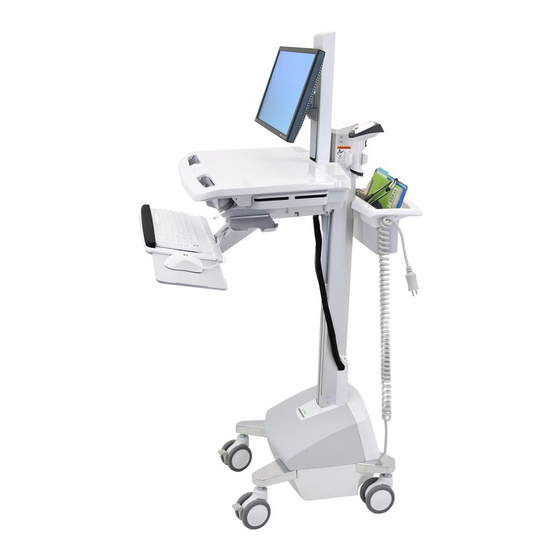

Ergotron StyleView SV42 User Manual
Replace battery for styleview sv32 & sv42 carts with life power system
Hide thumbs
Also See for StyleView SV42:
- User manual (23 pages) ,
- Tech sheet (21 pages) ,
- Installation manual (10 pages)
Advertisement
Quick Links
For Warranty visit: www.ergotron.com/warranty
For Service visit: www.ergotron.com
For local customer care phone numbers visit: http://contact.ergotron.com
For the latest User Installation Guide and StyleLink Software Download please visit: www.ergotron.com
www.ergotron.com
User's Guide - English
Guía del usuario - Español
Manuel de l'utilisateur - Français
Gebruikersgids - Nederlands
Benutzerhandbuch - Deutsch
Guida per l'utente - Italiano
Användarhandbok - svenska
ユーザーガイ ド : 日本語
用户指南 : 汉语
888-97-194-G-00 rev.D • 08/17
10mm (3/8")
or
8mm (5/16")
SV42
3
for StyleView® SV32 & SV42 Carts
Depends on battery
EN
User Guide
Replace Battery
with LiFe Power System
SV32
5
1/8
Advertisement
Related Manuals for Ergotron StyleView SV42
Summary of Contents for Ergotron StyleView SV42

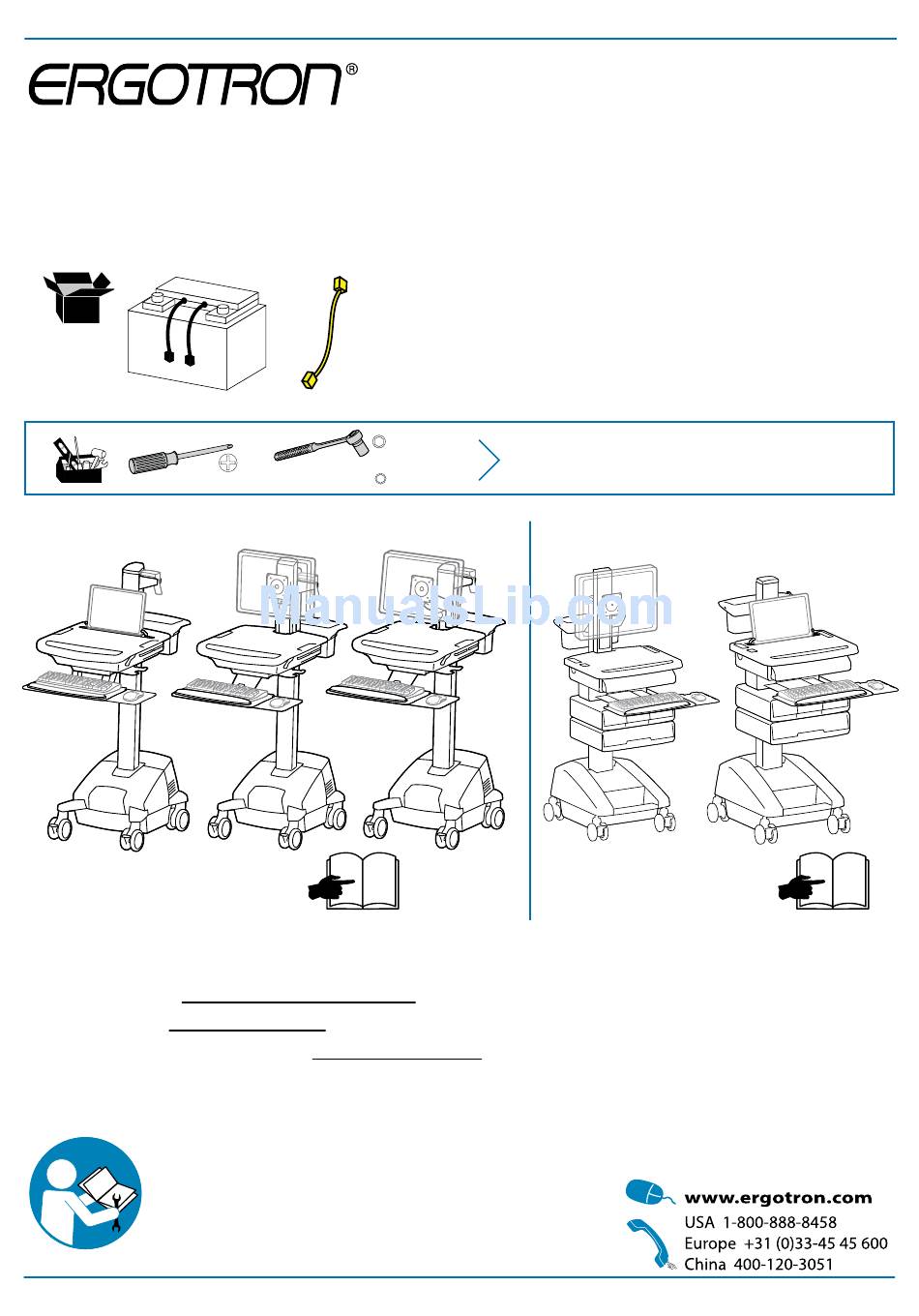

- Page 1 SV32 For Warranty visit: www.ergotron.com/warranty For Service visit: www.ergotron.com For local customer care phone numbers visit: http://contact.ergotron.com For the latest User Installation Guide and StyleLink Software Download please visit: www.ergotron.com www.ergotron.com User's Guide - English Guía del usuario - Español Manuel de l’utilisateur - Français...
- Page 2 Failure to heed this warning may result in severe damage to NOTE batteries, power module and possible re hazard. • Only Ergotron-specified batteries may be used in the StyleView Power System. REMPLACEMENT DE LA BATTERIE Seule la batterie suivante est compatible avec ce système : Contact Ergotron customer care for more details.
- Page 3 SV42 Turn power system off by holding down Turn off all mounted equipment. Disconnect Power System from power source. the AC Outlet Power button for 1 - 3 seconds. Power light will shut off. Battery Harness Battery "Yellow" Comm 3 Caution: Do NOT swap battery cables, doing so will cause sparking and trip the circuit breaker.
- Page 4 SV42 Black Torque to Torque to 110 in-lbs 110 in-lbs Caution: Connect Red (+) before connecting Black (-). PLUG BATTERY HARNESS IN FIRST! Battery Harness Battery "Yellow" Comm 3 Follow Battery Charge/Discharge Initial Power on steps a, b, c. 888-97-194-G-00 rev.D • 08/17...
- Page 5 SV32 Turn power system off by holding down Disconnect Turn off all mounted equipment. the AC Outlet Power button for 1 - 3 Power System seconds. Power light will shut off. from power source. Battery "Yellow" Comm 3 Battery Harness Caution: Remove Black (-) before removing Red (+).
- Page 6 SV32 Caution: Connect Red (+) before connecting Black (-). Black Torque to Torque to 110 in-lbs 110 in-lbs PLUG BATTERY HARNESS IN FIRST! Battery Harness Battery "Yellow" Comm 3 Follow Battery Charge/Discharge Initial Power on steps. 888-97-194-G-00 rev.D • 08/17...
-
Page 7: Battery Charge/Discharge
When dark, power system is off. If other lights are flashing red/green it could indicate a power system fault. If this occurs contact Ergotron Customer Care. NOTE: Frequent operation of the cart while battery charge levels are below 10% will significantly reduce the life of your battery. - Page 8 © 2015 Ergotron, Inc. All rights reserved. 888-97-194-G-00 rev.D • 08/17...
