Ergotron StyleView User Manual

Telemedicine bin
Hide thumbs Also See for StyleView:
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual See also: User Manual

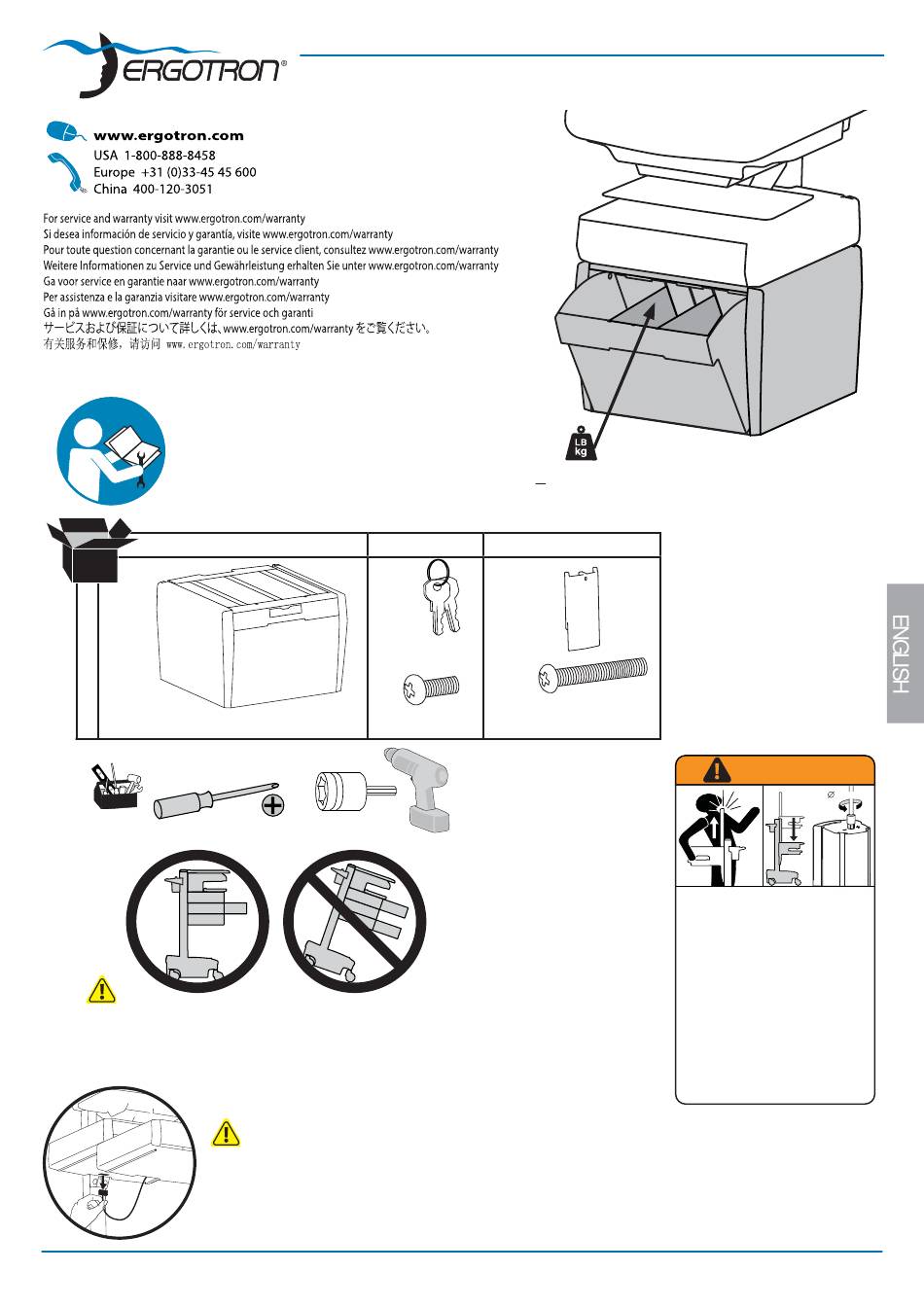

www.ergotron.com
User's Guide - English
Guía del usuario - Español
Manuel de l'utilisateur - Français
Gebruikersgids - Nederlands
Benutzerhandbuch - Deutsch
Guida per l'utente - Italiano
Användarhandbok - svenska
ユーザーガイ ド : 日本語
用户指南 : 汉语
1x
1
CAUTION: Close worksurface before opening drawers. Open only one drawer at a time. Do Not
push cart when drawers or worksurface are open. Failure to follow these instructions may cause
the cart to be unstable.
NOTE: When removing drawers from the cart, make sure to
disconnect the cable.
888-97-366-G-00 rev. C • 03/15
A
1x
M4 x 12mm
14mm (9/16")

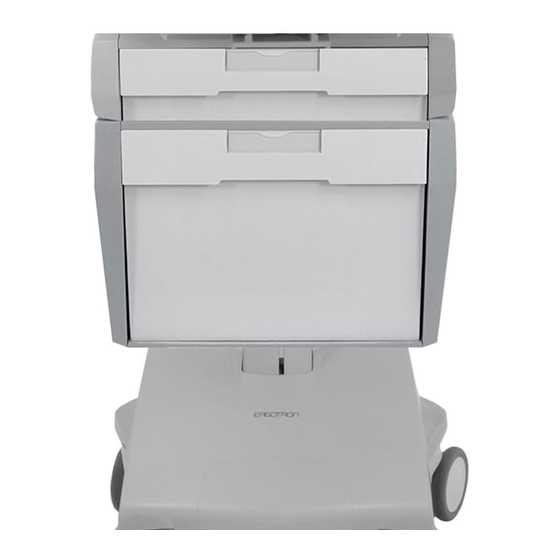

StyleView® Telemedicine Bin
< 2 lbs (1 kg)
B
C
1x
2x
1x
M3 x 25mm
User Guide
WARNING
14mm (9/16")
IMPACT HAZARD!
MOVING PARTS CAN CRUSH AND CUT.
Minimize Lift Tension BEFORE:
· Removing Mounted Equipment.
· Shipping Cart
· Storing Cart
To Minimize Lift Tension
1. Lower worksurface to lowest position.
2. Turn adjustment nut at top of riser
counterclockwise until it stops
(Adjustment may require 40-60 revolutions).
Failure to heed this warning may result in
serious personal injury or property damage!
For More information and instructions refer to product
guide at http://4support.ergotron.com or contact
Ergotron Customer Care at 1-800-888-8458.
822-052
1/9

Advertisement

loading
Need help?

Need help?

Do you have a question about the StyleView and is the answer not in the manual?

Questions and answers

Related Manuals for Ergotron StyleView

Summary of Contents for Ergotron StyleView

  • Page 1 Failure to follow these instructions may cause serious personal injury or property damage! For More information and instructions refer to product guide at http://4support.ergotron.com or contact the cart to be unstable. Ergotron Customer Care at 1-800-888-8458.
  • Page 2 5.3" 12.8" (134 mm) 10.7" (324 mm) (272 mm) 5.4" (138 mm) Top View 12" (308 mm) 13" (329 mm) 11" (280 mm) 15.6" (395 mm) 12.6"- 24.4” (320-620 mm) Side View Front View Turn power system off by Disconnect Power System from power source. Turn off all mounted equipment.
  • Page 3 Attach the Travel Stop bracket to the lift engine to keep the drawer from hitting the base. M3 x 25mm Remove plug cover. 888-97-366-G-00 rev. C • 03/15...
  • Page 4 Slide the drawer only half way onto the bottom tracks of the top drawer. Plug the cable on the bottom drawer into the Slide the drawer completely onto the jack on the bottom of the drawer above it. bottom tracks of the top drawer. 888-97-366-G-00 rev.
  • Page 5 Remove the top drawer(s). Secure the bottom drawer by attaching the two screws. M4 x 12mm Replace the top drawer(s). 888-97-366-G-00 rev. C • 03/15...
  • Page 6 Reconnect drawer power. Replace top cover on drawer. 888-97-366-G-00 rev. C• 03/15...
  • Page 7 Adjustment It is important that you adjust this product according to the weight of the mounted equipment as described in the following steps. Any time equipment is added or removed from this product, resulting in a change in the weight of the mounted load, you should repeat these adjustment steps to ensure safe and optimum operation.
  • Page 8 - PINs entered on the cart and not managed by StyleLink may vary in length from 4-7 digits. - Ergotron recommends the following for choosing PIN digit length (assumes less than 1 in 25 chance of guessing random User PIN): Max number of User PINs >50, 5+digit length recommended...
  • Page 9 Telemedicine Bin - includes dividers, 3 USB ports inside and 2 USB ports on back of drawer. 6' max USB cable length for stored devices. Divider Confi guration Options 3 Slots 2 Slots 1 Slot © 2015 Ergotron, Inc. All rights reserved. 888-97-366-G-00 rev. C • 03/15...
