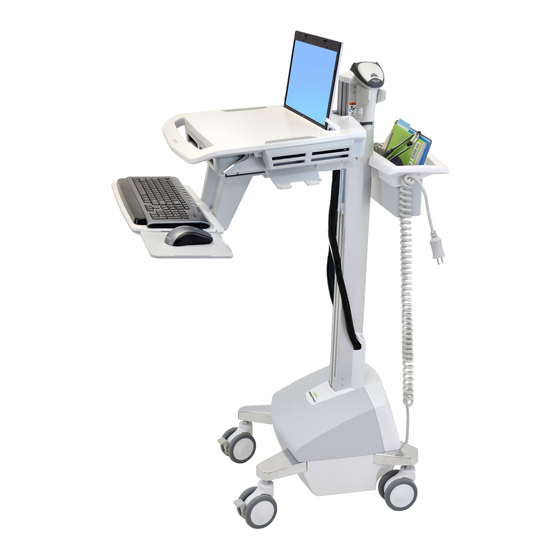

Ergotron SV42 series User Manual
  1. Manuals
  2. Brands
  3. Ergotron Manuals
  4. Medical Equipment
  5. SV42 series
  6. User manual

Ergotron SV42 series User Manual

Coiled cord replacement
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
1x
1
Turn off all mounted equipment.
2
Disconnect Power System from power source.
3
Turn power system off by holding down the AC Outlet Power button for 1 - 3 seconds.
Power light will shut off .
SLA Power Systems
4
Remove front base cover.
For the latest User Installation Guide please visit: www.ergotron.com
888-97-378-G-00 rev. A • 10/14
SV42 Coiled Cord Replacement
LiFe Power Systems
User's Guide
4
1 of 6

Advertisement

loading
Need help?

Need help?

Do you have a question about the SV42 series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ergotron SV42 series

Summary of Contents for Ergotron SV42 series

  • Page 1 Turn power system off by holding down the AC Outlet Power button for 1 - 3 seconds. Power light will shut off . SLA Power Systems LiFe Power Systems Remove front base cover. For the latest User Installation Guide please visit: www.ergotron.com 888-97-378-G-00 rev. A • 10/14 1 of 6...
  • Page 2 SLA Power Systems LiFe Power Systems Remove rear base cover. Remove retainer bracket. Unplug coiled cord and plug in new cord. 888-97-378-G-00 rev. A • 10/14 2 of 6...
  • Page 3 SLA Power Systems LiFe Power Systems Reattach retainer bracket. Replace rear base cover. Replace front base cover. End of Instructions for SLA Power Systems 888-97-378-G-00 rev. A • 10/14 3 of 6...
  • Page 4 LiFe Power Systems Remove rear base cover. Remove retainer bracket. 888-97-378-G-00 rev. A • 10/14 4 of 6...
  • Page 5 LiFe Power Systems Unplug coiled cord and plug in new cord. Reattach retainer bracket. 888-97-378-G-00 rev. A • 10/14 5 of 6...
  • Page 6 Replace rear base cover. End of Instructions for LiFe Power Systems For local customer care phone numbers visit: http://contact.ergotron.com 888-97-378-G-00 rev. A • 10/14 6 of 6...
