PID Groups Screen

MTM400 MPEG Transport Stream Monitor User Manual
PIDs can be grouped together to enable composite bit rate and test reporting of
user-selected PIDs, perhaps carrying similar information. Up to 32 PID Groups can
be formed. A maximum of 128 PIDs can be included in each of these 32 groups.

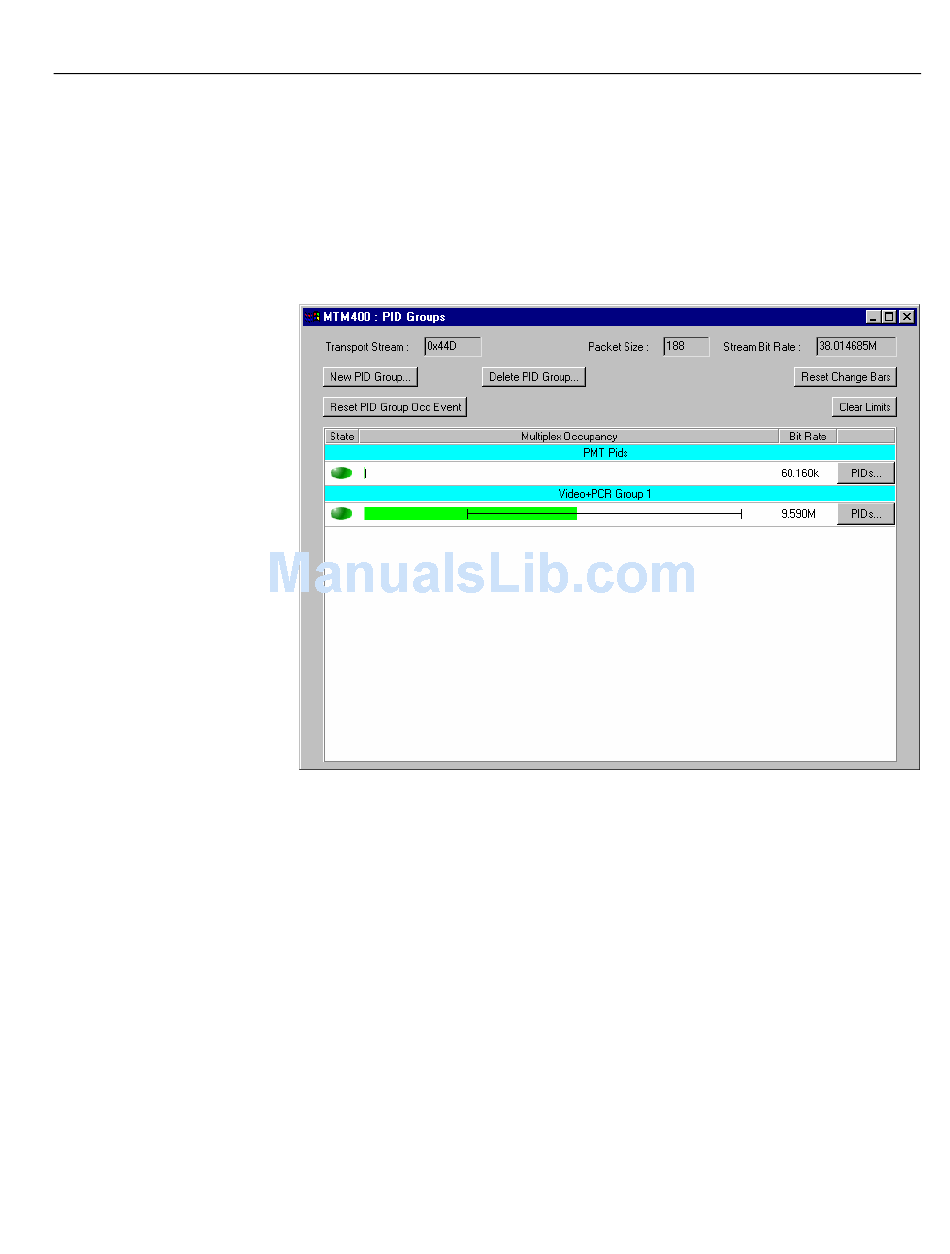

Figure 3-14: Stream view - PID groups

In this view, the PID Groups set up for the incoming transport stream are
displayed. PID Group editing is performed using this screen.
Only users logged on as Administrator can adjust bit rate limits and modify the
PID Groups.
The view consists of the following elements (a more detailed description follows
where necessary):
Title Bar The title bar of the screen displays the name of the stream
under test (assigned on the Configuration Screen, page 3-76).
Transport Stream: The transport stream identity.
Packet Size: The transport stream packet size.
Stream View
