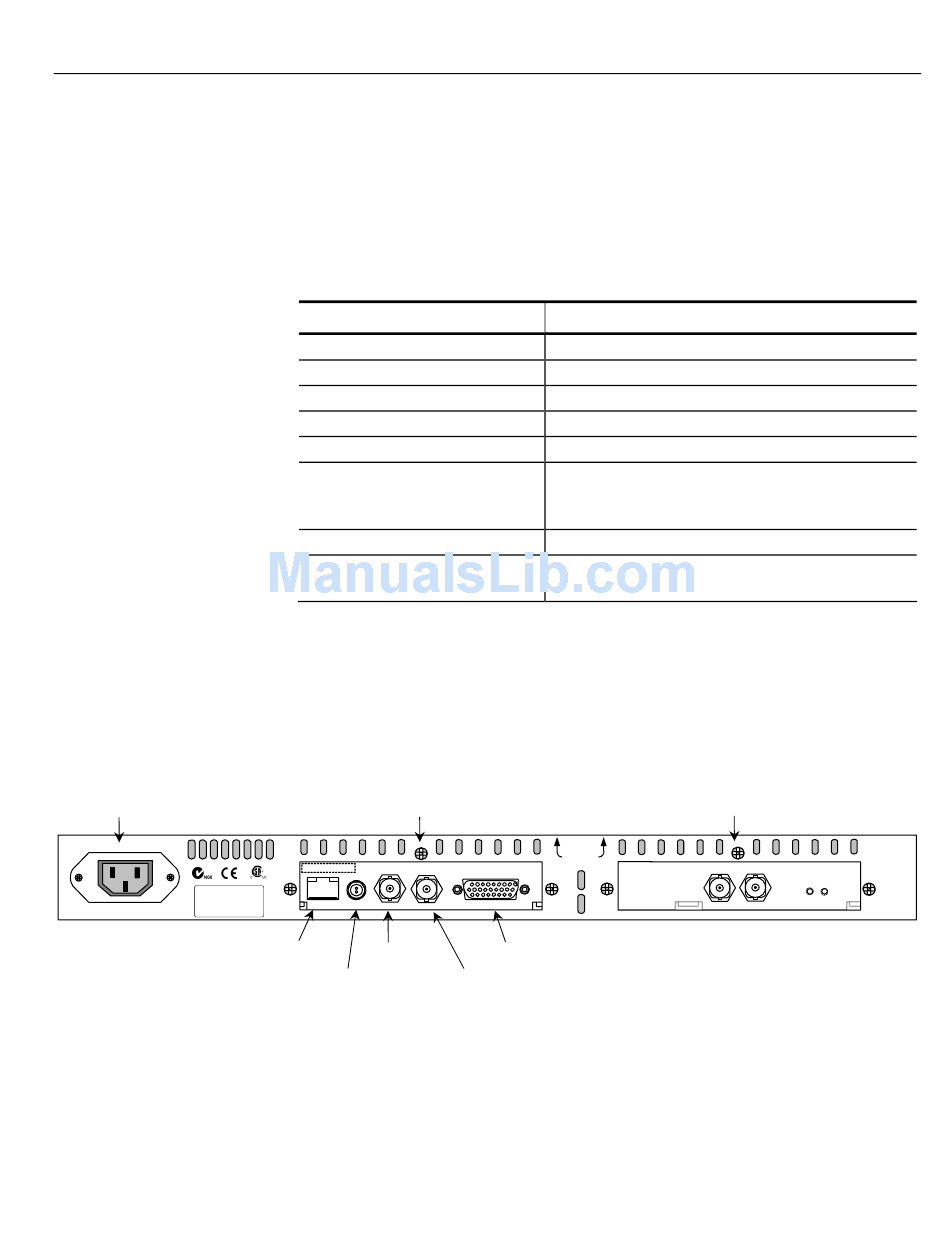

Figure 1-1: MTM400 connectors (shown with QPSK interface)

MTM400 MPEG Transport Stream Monitor User Manual
Electrical Installation
The electrical operating requirements of the MTM400 are summarized in
Table 1-6; see the MTM400 MPEG Transport Stream Monitor Technical
Reference for more detailed electrical characteristics.

Table 1-6: Electrical operating requirements

Requirement
Temperature, operating
Altitude, operating
Source Voltage
Power Consumption (maximum)
Peak Inrush Current
Fuse Rating
Overvoltage Category
Pollution Degree
Use the following procedure to make electrical, signal, and network connections:
1. After the MTM400 has been mounted in the rack, connect the power cord
(provided with the unit) to the power connector on the rear panel. Connect the
power cord plug to a properly grounded outlet.
Transport Stream
Processor Card
ASI/
00-01-F8-A7-33-CC
IN
OUT
SMPTE
LAN LTC
Ethernet TS Input
LTC In TS Output
2. Make the necessary transport stream, network and peripheral device
connections using the connectors at the rear of the unit.
Specification
+5 ˚C to +40 ˚C
0 m to 3000 m (9800 ft)
100 VAC to 240 VAC, 50 Hz/60 Hz
1 Amp
7.2 A peak at 240 VAC, 50 Hz
Mains fuse is 3.15 A, 250 V, Fast; Not operator
replaceable. Refer servicing to qualified service
personnel.
II (as defined in IEC61010-1)
2 (as defined in IEC61010-1).
Rated for indoor use only.
Additional
information
found on label
on top panel
QPSK (L-BAND)
ALARMS
1
2
6
Alarms
Getting Started
Interface Card
(where installed)
IN OUT
IN LNB
LOCK POWER
1-9
