Triggered Recording; Figure 3-37: Triggered Recording Dialog Box - Tektronix MTM400 User Manual

Triggered Recording

MTM400 MPEG Transport Stream Monitor User Manual
To examine offline events that occur in a stream, recordings can be made whose
start is triggered by the event itself, manually, or by an alarm. The recording is
held in RAM and can be downloaded from the MTM400 to the client PC for
storage and further analysis. The file is stored as a valid MPEG file; however extra
information is endcoded in the file to allow Tektronix MPEG analysis products to
reconstruct the real-time timing artifacts present at the time of recording.
The Triggered Recording setup is accessed by the Recording... button on the
Stream button bar. The Triggered Recording dialog box contains two panels:
Settings and Operation.

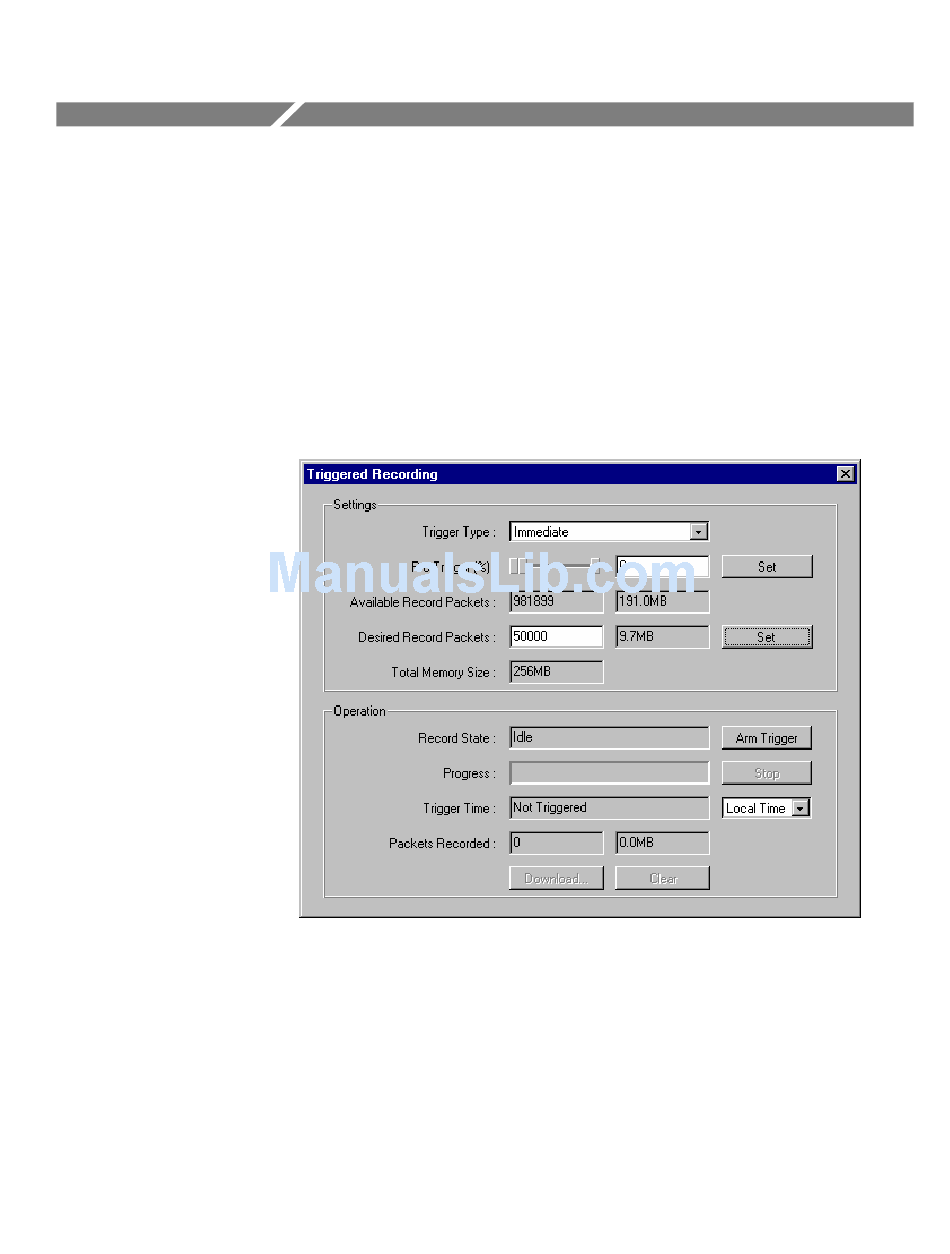

Figure 3-37: Triggered Recording dialog box
