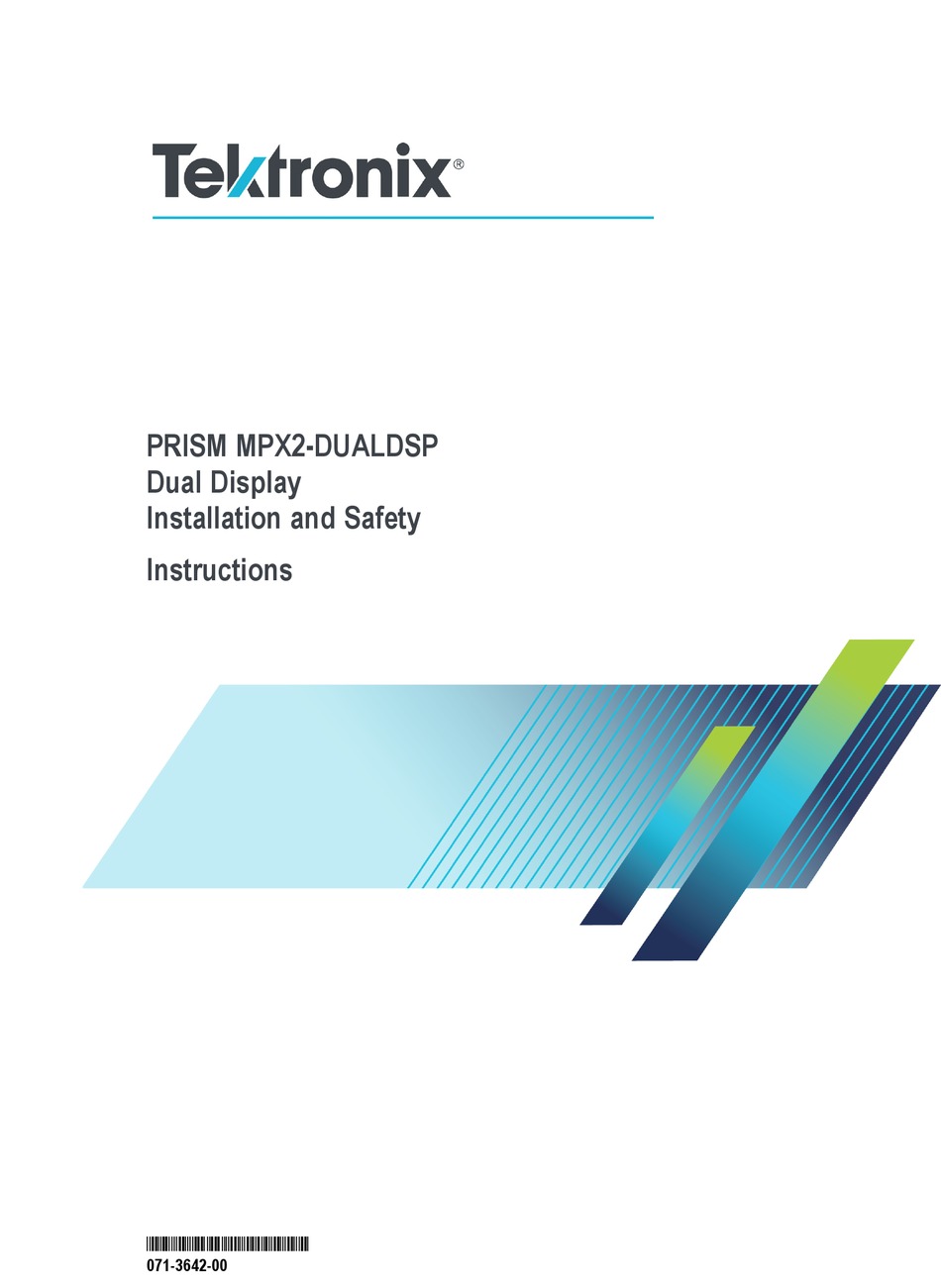

  • Page 1 PRISM MPX2-DUALDSP Dual Display Installation and Safety Instructions *P071364200* 071-3642-00...
  • Page 3 PRISM MPX2-DUALDSP Dual Display Installation and Safety Instructions Register now! Click the following link to protect your product. ► www.tek.com/register www.tek.com 071-3642-00...
  • Page 4 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
  • Page 5 Warranty Tektronix warrants that this product will be free from defects in materials and workmanship for a period of one (1) year from the date of shipment. If any such product proves defective during this warranty period, Tektronix, at its option, either will repair the defective product without charge for parts and labor, or will provide a replacement in exchange for the defective product.
  • Page 6 2. Transfer the Program to any person or organization outside of Customer or the corporation of which Customer is a part without the prior written consent of Tektronix, except in connection with the transfer of the equipment within which the programs are encoded or incorporated;...
  • Page 7 The license granted herein is effective upon acceptance by Customer, and shall remain in effect until terminated as provided herein. The license may be terminated by Customer at any time upon written notice to Tektronix. The license may be terminated by Tektronix or any third party from whom Tektronix may have obtained a respective licensing right if Customer fails to comply with any term or condition and such failure is not remedied within thirty (30) days after notice hereof from Tektronix or such third party.
  • Page 9: Table Of Contents

    Environmental considerations ....................PRISM MPX2-DUALDSP Installation and Safety Instructions...
  • Page 10 Table of Contents PRISM MPX2-DUALDSP Installation and Safety Instructions...
  • Page 11: Important Safety Information

    To safely perform service on this product, additional information is provided at the end of this section. (See page v, Service safety summary.) The MPX2-DUALDSP is designed only for use with the Tektronix MPX2, do not use this product for any other purpose. General safety summary Use the product only as specified.
  • Page 12 Avoid improper or prolonged use of keyboards, pointers, and button pads. Improper or prolonged keyboard or pointer use may result in serious injury. Be sure your work area meets applicable ergonomic standards. Consult with an ergonomics professional to avoid stress injuries. PRISM MPX2-DUALDSP Installation and Safety Instructions...
  • Page 13: Service Safety Summary

    (This symbol may also be used to refer the user to ratings in the manual.) The following symbol(s) may appear on the product: PRISM MPX2-DUALDSP Installation and Safety Instructions...
  • Page 14: Preface

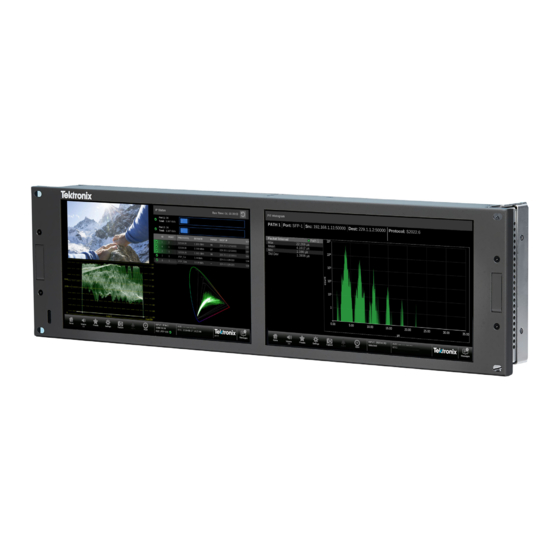

    Product description The PRISM MPX2-DUALDSP provides a 3RU dual touch display unit for the PRISM family of waveform monitors to create fully integrated audio, video, and data monitoring suite. The PRISM Dual Display module is 19 inches wide with a shallow installation depth and comes with two sets of USB/Headphone connectors that can be mounted on each rack ear.
  • Page 15: Documentation

    Download this manual link. See the image below for an example of the location. NOTE. The first seven numbers of the P/N are the Tektronix part number from the product documentation table. The last two numbers are the revision level number.
  • Page 16: Conventions Used In This Manual

    Figure ii: Location of the document part number and the date it was last updated. Conventions used in this manual The following icons may be used throughout this manual. Sequence Step Front panel Connect power Network SVGA power viii PRISM MPX2-DUALDSP Installation and Safety Instructions...
  • Page 17: Installation

    Avoid the use of chemical cleaning agents that might damage the plastics used in the module. Use a 75% isopropyl alcohol solution as a cleaner and rinse with deionized water. Before using any other type of cleaner, consult your Tektronix Service Center or representative. PRISM MPX2-DUALDSP Installation and Safety Instructions...
  • Page 18: Accessories

    When ordering the A99 option, it is the responsibility of the end user to ensure that a certified power cord, for the country or region it is installed, is used with this module. CAUTION. To reduce risk of fire and shock, use the certified power cord provided with the product. PRISM MPX2-DUALDSP Installation and Safety Instructions...
  • Page 19: Operating Requirements

    To ensure proper airflow, there must be at least 2 inches of clearance on both sides of Instrument the instrument, at least 2 inches of clearance from the rear of the instrument, and at least a 1/2 inch of clearance from the top of the instrument. PRISM MPX2-DUALDSP Installation and Safety Instructions...
  • Page 20 The following table lists the physical characteristics of the Dual Display. Table 3: Physical characteristics Parameter Description Dimensions Height 13.28 cm (5.23 in.) Width 48.26 cm (19 in.) Depth 7.62 cm (3 in.) Weight 2.73 kg (6.02 lbs.) Shipping Typically 4.54 kg (10 lbs.) PRISM MPX2-DUALDSP Installation and Safety Instructions...
  • Page 21: Rear Panel Connectors

    Rear panel connectors The following figure shows the external connections to the rear panel of the Dual Display module. A description of each connector is provided in the following table. Figure 1: PRISM MPX2-DUALDSP rear panel connectors Item number (See Figure 1.) Description AC power input.
  • Page 22: Dual Display Installation

    WASHER, FLAT; 0.203 ID X 0.625 OD X 0.062, ZINC PLATED STEEL 210-1298-XX WASHER; SHOULDER & RETAINER, 0.195 ID X 0.195 THK, PLASTIC, TV GRAY, 6.575 OD 212-0591-XX SCREW, MACHINE; 10-32 X 0.750 OVAL HEAD, POZI PRISM MPX2-DUALDSP Installation and Safety Instructions...
  • Page 23 3. Guide the USB/headphone cables through the front of each rack ear. 4. Use the four screws from step 1 to secure the USB/headphone connector from the back of each rack ear. Figure 3: Guide the connections through the rack ears and secure with screws PRISM MPX2-DUALDSP Installation and Safety Instructions...
  • Page 24 1. Locate four 10-32 X 0.750 oval head screws from the hardware kit (016-1133-XX). 2. Use a screwdriver with a PoziDriv tip to secure the Dual Display in the rack with two screws on each rack ear. Figure 4: Secure the Dual Display to the rack PRISM MPX2-DUALDSP Installation and Safety Instructions...
  • Page 25 3. Connect the cables from the USB port and headphone jack on each rack ear to the rear of the Dual Display. Figure 5: Connect USB and headphone connections (optional) 4. Connect the power cable to the Dual Display. (See page 12, Power cord installation.) PRISM MPX2-DUALDSP Installation and Safety Instructions...
  • Page 26 1. Connect DisplayPort1 on the MPX2 to the DisplayPort connector on Display 1. 2. Connect any USB port on the MPX2 to the USB B port on Display 1. Figure 6: Connect the MPX2 to Display 1 (primary) PRISM MPX2-DUALDSP Installation and Safety Instructions...
  • Page 27 3. Connect DisplayPort2 on the MPX2 to the DisplayPort connector on Display 2. 4. Connect any USB port on the MPX2 to the USB B port on Display 2. Figure 7: Connect the MPX2 to Display 2 (extended) PRISM MPX2-DUALDSP Installation and Safety Instructions...
  • Page 28: Power-On And Power-Off Procedures

    To minimize the risk of damage to the Dual Display, it is strongly recommended that the power cord be connected to the Dual Display before the power cord is connected to the AC power source. PRISM MPX2-DUALDSP Installation and Safety Instructions...
  • Page 29 2. To completely remove power from the display, disconnect the power cord from the Dual Display. The power cord has a locking mechanism to keep it attached to the Dual Display. Push the button on the cord housing to release the locking mechanism. PRISM MPX2-DUALDSP Installation and Safety Instructions...
  • Page 30: Operation

    For example, if you change the USB port connections on the back of the MPX2 instrument. Figure 8: Extended display mode configuration PRISM MPX2-DUALDSP Installation and Safety Instructions...
  • Page 31: Compliance Information

    Australia / New Zealand EMC Complies with the EMC provision of the Radiocommunications Act per the following standard, in accordance with ACMA: PRISM MPX2-DUALDSP Installation and Safety Instructions...
  • Page 32: Safety Compliance

    Use – Part 1: General Requirements. Additional compliances IEC 61010-1. Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use – Part 1: General Requirements. Equipment type Test and measuring equipment. Safety class Class I – grounded product. PRISM MPX2-DUALDSP Installation and Safety Instructions...
  • Page 33 Only mains power supply circuits have an overvoltage category rating. Only measurement circuits have a measurement category rating. Other circuits within the product do not have either rating. Mains overvoltage category rating Overvoltage category II (as defined in IEC 61010-1). PRISM MPX2-DUALDSP Installation and Safety Instructions...
  • Page 34: Environmental Considerations

    This symbol indicates that this product complies with the applicable European Union requirements according to Directives 2012/19/EU and 2006/66/EC on waste electrical and electronic equipment (WEEE) and batteries. For information about recycling options, check the Tektronix Web site (www.tek.com/productrecycling). PRISM MPX2-DUALDSP Installation and Safety Instructions...
