Stream View
3-38

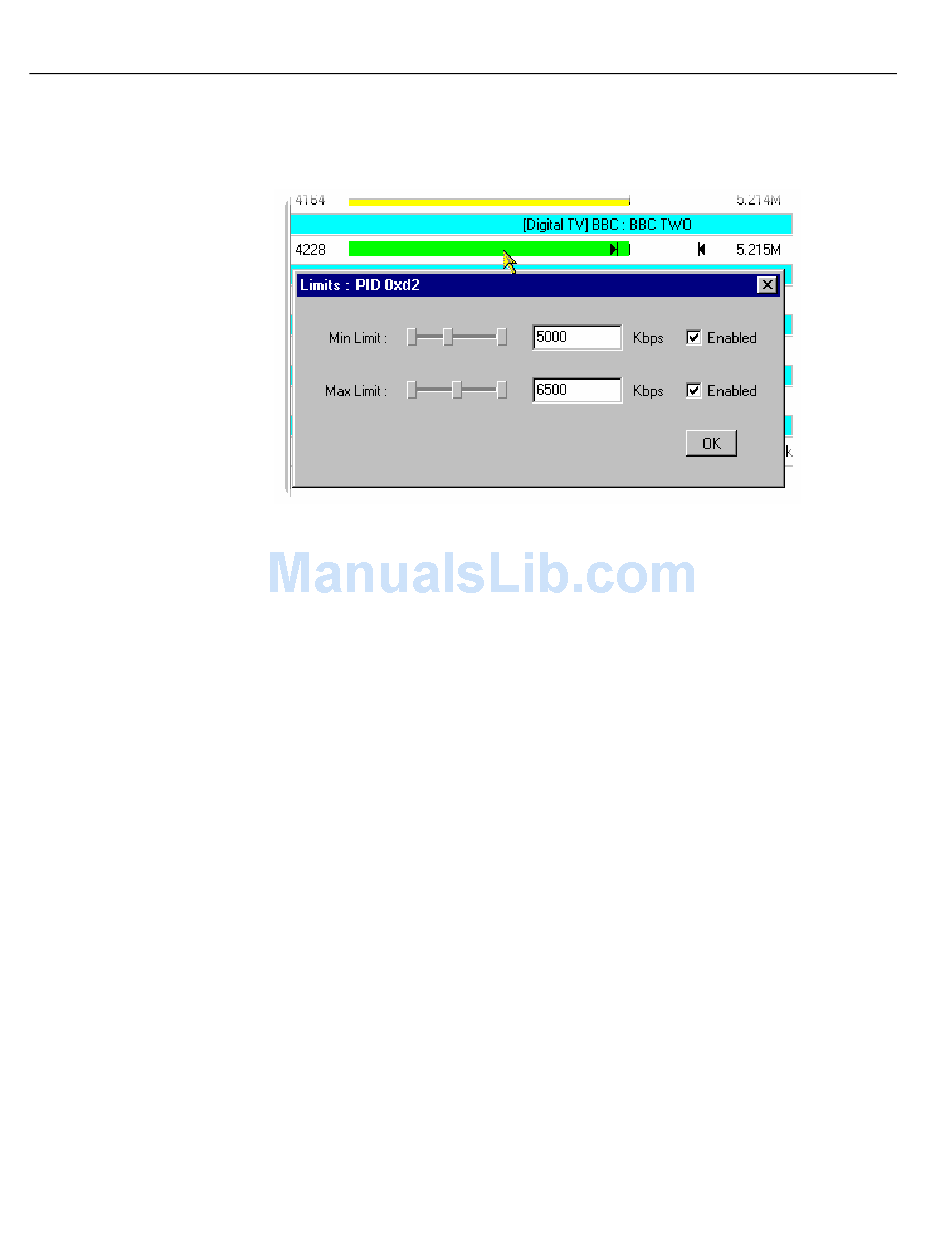

The maximum and minimum bit rate limits are set in the Limits dialog. Click on
the program bar to open the dialog box:
The maximum and minimum values can be set either using the appropriate slider
bar or by entering a value in the numeric field. Values are expressed in kilobytes
per second. The Enabled checkbox must be selected before the limit will be tested.
The Bit Rate Limits of all PIDs in a stream can be disabled and reset by selecting
the Clear Limits button at the top of the PIDs screen.
User PIDs
You can add PIDs that are not automatically recognized in the stream to the
display. The additional PIDs will appear in the Other PIDs in the Multiplex
section of the display.
