Figure 1-2: Logging On - Tektronix MTM400 User Manual

MTM400 MPEG Transport Stream Monitor User Manual
The MTM400 splash screen is displayed overlaid shortly thereafter by the
Login Details dialog:

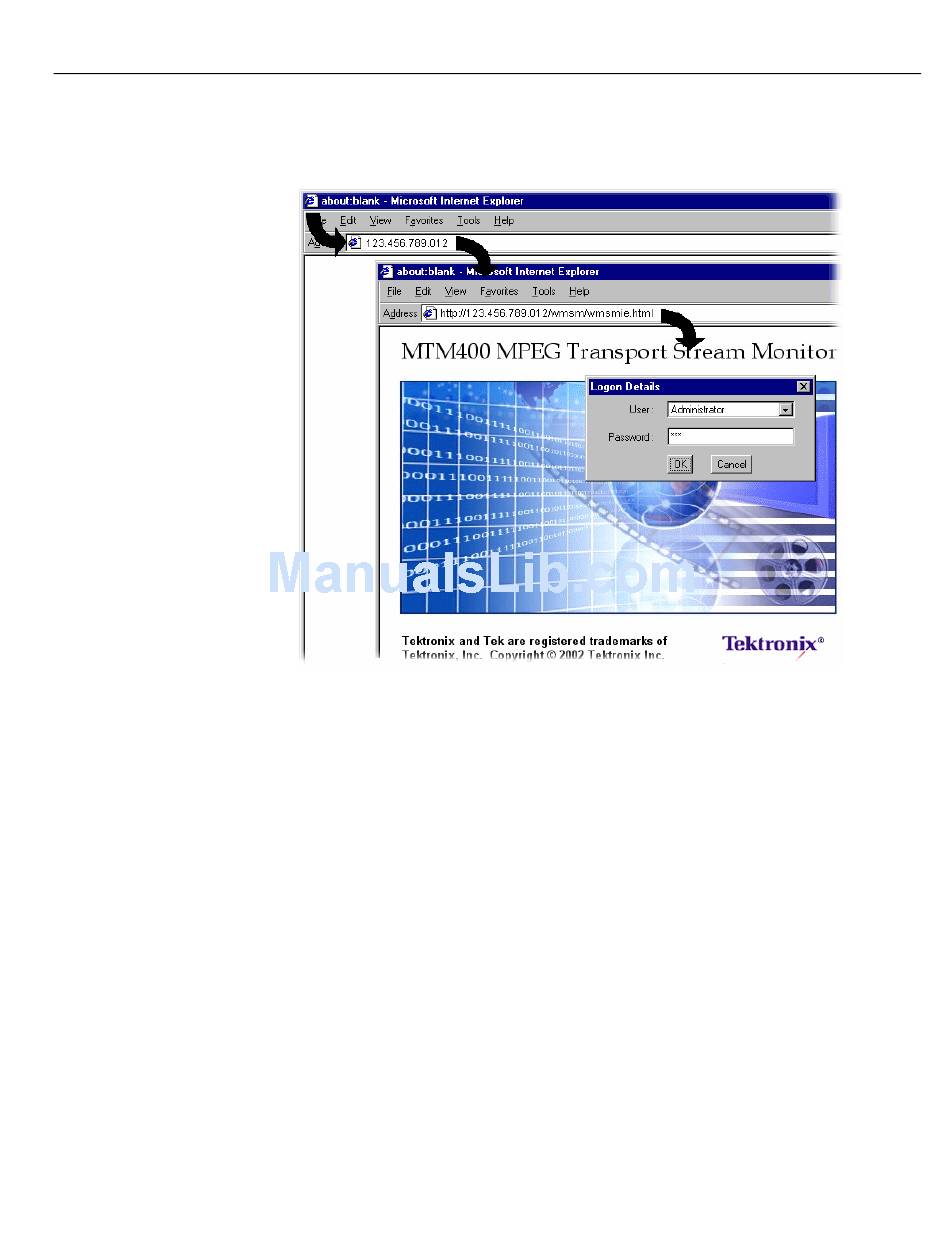

Figure 1-2: Logging on

3. Select the User name (Administrator or User from the drop-down list).
Two User Names are available at installation: Administrator and User.
Administrator: Gives full read/write access to all views and settings,
including options where installed.
User: Gives read only access to all views and settings, including options
where installed. You can also reset alarms.
4. Enter the password. The default password for the Administrator is
password is allocated to the User. The password can be modified using the
Device Configuration screen (see page 3-13).
Select OK to accept the details. Select Cancel to close the dialog.
(To redisplay the Logon Details dialog, either reenter the network identity of
the MTM400 or select the Refresh button in the browser.)
Getting Started
; no
tek
1-15
