Interface Configuration and Interpretation

QAM (Annex A and Annex C)

3-114
The QAM Annex A and Annex C interfaces have common settings. The Annex A

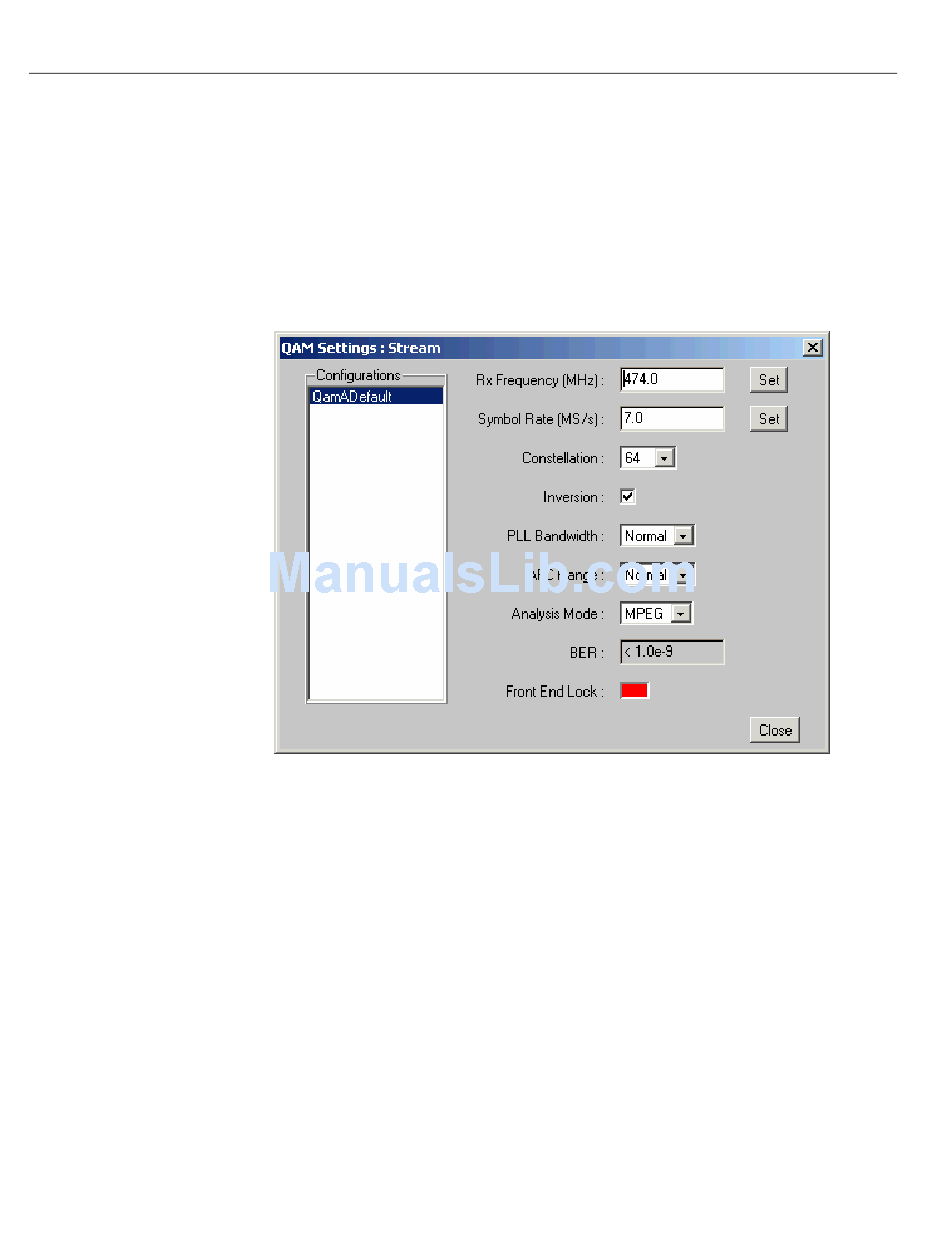

interface appears as shown in Figure 3-40:
Configuration - QAM (Annex A and Annex C)

Figure 3-40: Interface configuration - QAM (Annex A and Annex C)

Configurations The QAM Settings dialog provides an option to recall a number
of settings configuration files. The configuration files are created
and stored in the MTM400. To select a configuration file,
highlight the required name in the list.
Rx Frequency (MHz)
Receive frequency.
Enter the required value and select Set.
Symbol Rate (MS/s)
Symbol rate value.
Enter the required value and select Set.
