Interface Configuration and Interpretation

8VSB

3-126

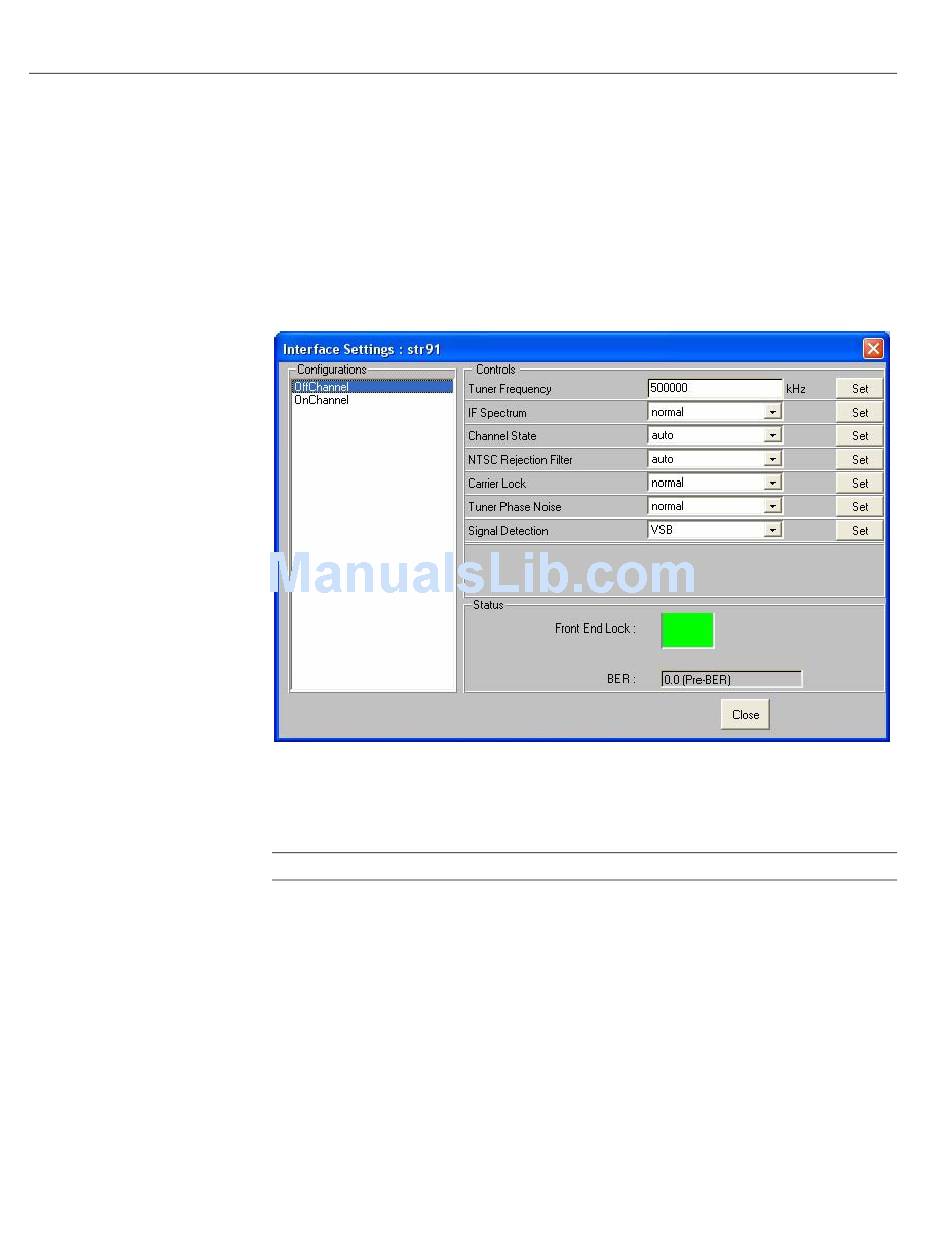

The 8VSB (Vestigial Sideband) Settings dialog box is shown in the following
screenshot:
Configuration - 8VSB

Figure 3-46: 8VSB interface configuration (example)

For each of the settings, enter the required change and select Set to apply the new
value.
NOTE. These settings can also be made from the Input Card screen.
Configurations This dialog box provides an option to recall a number of settings
configuration files. The configuration files are created and stored
in the MTM400. To select a configuration file, highlight the
required name in the list.
Tuner Frequency (kHz)
Enter the required tuned (channel) frequency. Remember to
enter the center channel frequency, not the "pilot" frequency.
