Device View

MTM400 MPEG Transport Stream Monitor User Manual
The Reference section provides a detailed description of each of the views
available in the RUI. The descriptions are given in the order in which they appear
in the two primary views: Device and Streams.
The Device view allows you to monitor and set parameters specific to the
MTM400 unit. The view consists of a menu bar with various buttons, and an
information view. You can choose the information that appears in the view by
pressing the appropriate button. The color coding of buttons is explained in the
previous section (see Color Coding, page 2-11.)

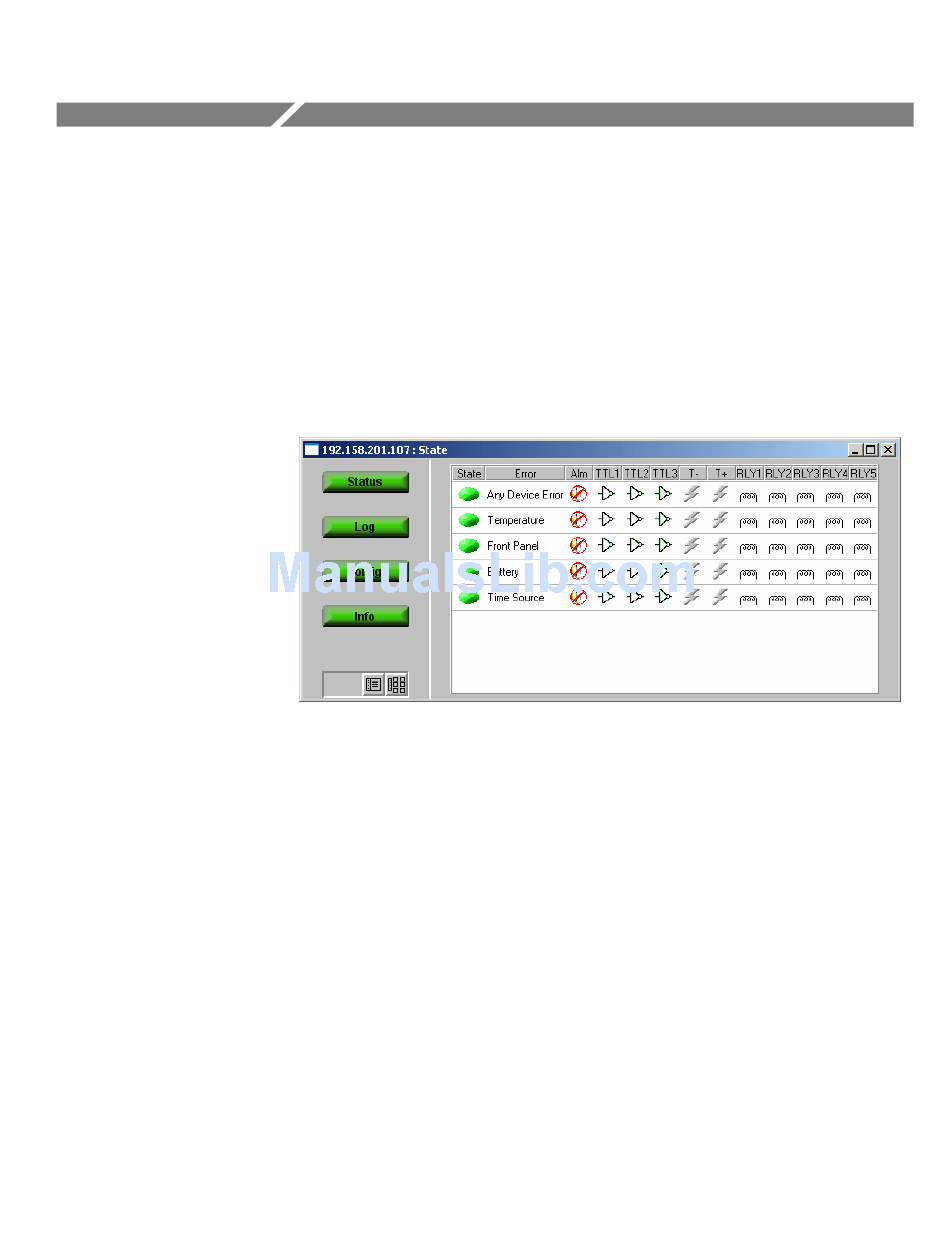

Figure 3-1: Device view

The title bar displays the Device Name and the current view type.
The screens provided are:
Status Displays the state of hardware items that are installed on the
MTM400. It also allows administrators to configure alarms and
relays and parameters associated with each item. (See page 3-2.)
Log Displays the MTM400 device log. (See page 3-4.)
Config Displays general configuration parameters for the MTM400.
administrators can modify certain parameters. (See page 3-6.)
Info The Information view details the software and hardware build
state of the MTM400. (See page 3-15.)
3-1
