6 Panoramic and 3D calibrations and adjustments
3. Press Patient Positioning.
4. Remove the lower shelf bottom cover.

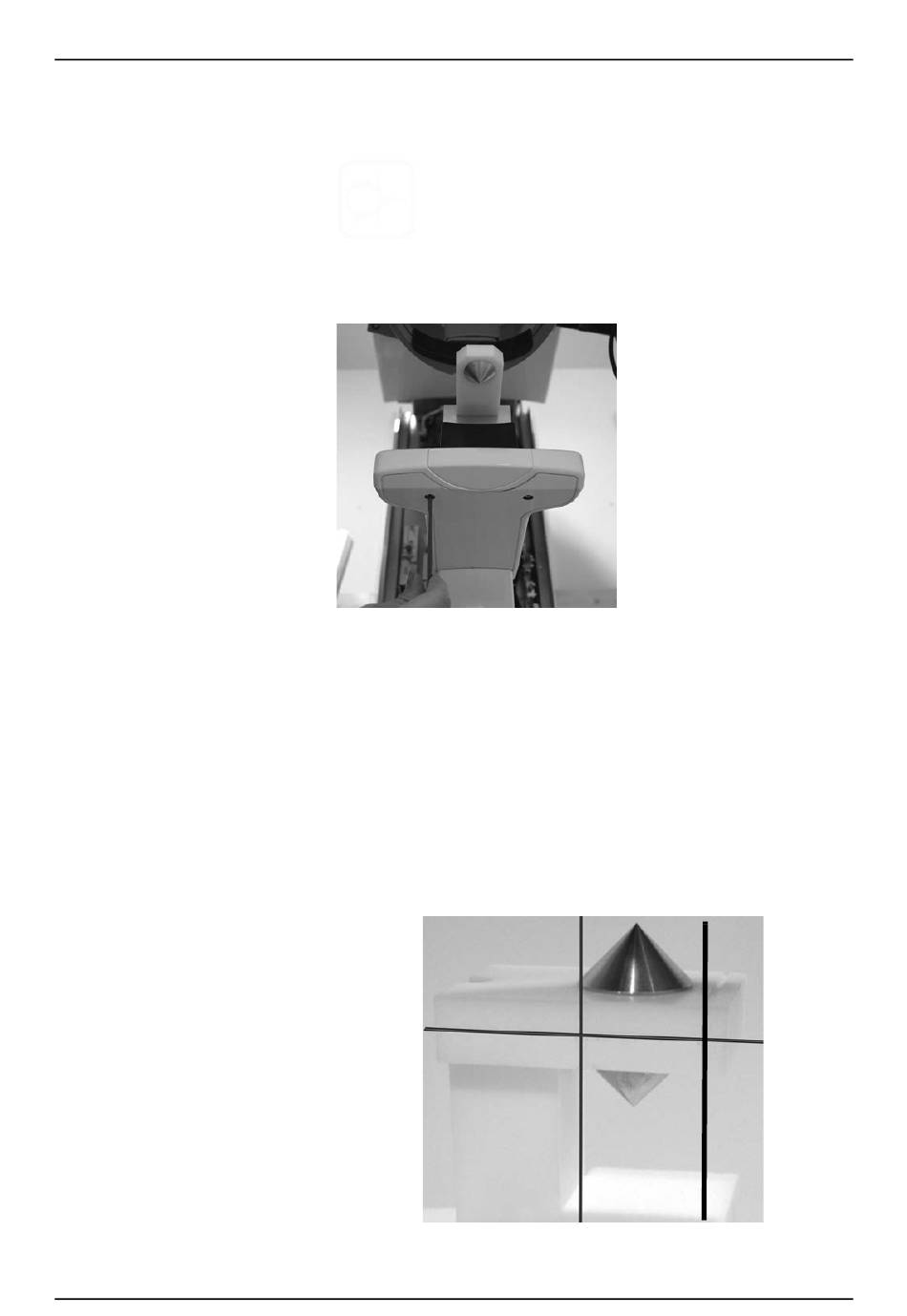

5. Align the layer laser, FH-laser and mid-sagittal lasers to
the corresponding grooves by mechanically adjusting the
lasers. The layer laser is adjusted by the screws below
the chin rest.
Adjustment of the laser located in the rotator is software
based. Use the chin support adjustment buttons to adjust
the angle of the laser and occlusion correction buttons to
adjust the Y-position of the laser to match the backmost
groove on the calibration tool.
