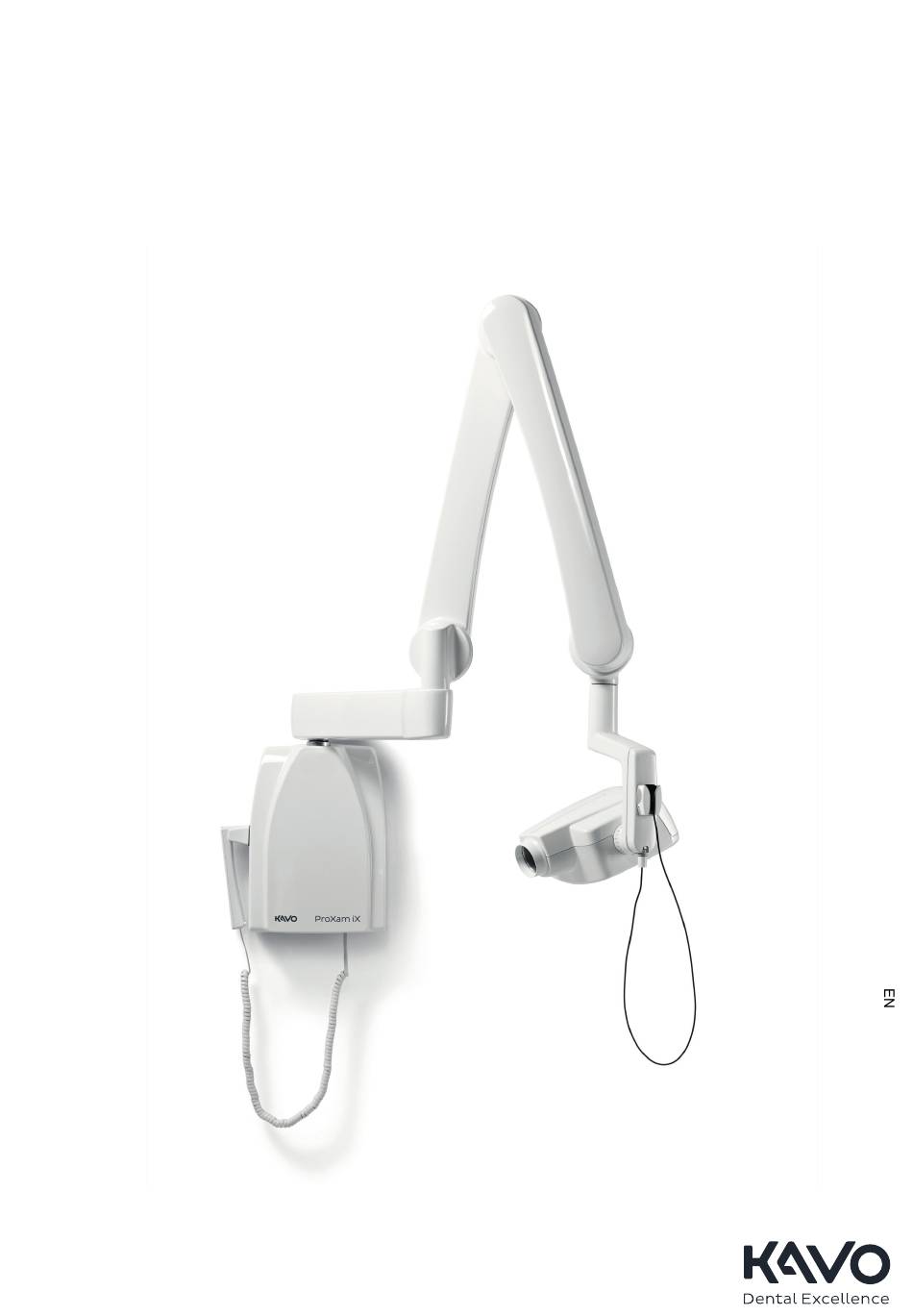

Page 1 KaVo ProXam Intraoral systems Instructions for use Constancy test...
Page 2 The manufacturer, assembler and importer are responsible for the safety, reliability and performance of the unit only if: - installation, calibration, modification and repairs are carried out by qualified authorised personnel - electrical installations are carried out according to the appropriate requirements such as IEC 60364 - equipment is used according to the operating instructions.
Page 3: Table Of Contents
Table of contents Introduction..............................1 Constancy test tools........................... 3 Preparing Romexis............................. 4 Performing constancy test.......................... 5 Positioning sensor.......................... 5 Positioning imaging plate........................6 Positioning cone..........................7 Selecting exposure values......................8 Taking test exposure........................9 Evaluating image constancy........................11 Test results, constancy test for digital intraoral X-ray system..............12 Instructions for use Intraoral constancy test...
Page 4 Table of contents Intraoral constancy test Instructions for use...
Page 5: Introduction
1 Introduction 1 Introduction This manual describes how to carry out a constancy test on KaVo intraoral X-ray systems. The manual applies to the following: • KaVo ProXam iX intraoral X-ray unit • KaVo ProXam iS digital sensor • KaVo ProXam iP imaging plate scanner NOTE Read these instructions thoroughly before performing the constancy test.
Page 6 1 Introduction Phone +49 7351 56-0 Fax +49 7351 56-1488 Intraoral constancy test Instructions for use...
Page 7: Constancy Test Tools
2 Constancy test tools 2 Constancy test tools Quart Set for KaVo ProXam iS/ProXam iP (2.023.3003) is required for the constancy test. The test phantom is optional and available as a spare part. NOTE Handle the test phantom with care and do not drop it.
Page 8: Preparing Romexis
3 Preparing Romexis 3 Preparing Romexis Steps 1. New patient is set up by a service technician. Images are filed based on patient's name. The patient must therefore be selected before the exposure. The service technician sets up a corresponding “patient” in the Romexis program so that test exposures can be prepared.
Page 9: Performing Constancy Test
4 Performing constancy test 4 Performing constancy test 4.1 Positioning sensor Steps 1. Push the sensor into the large slot of the test phantom (under the groove) as shown. 1 Test phantom 2 Groove 3 Sensor: Active surface facing up •...
Page 10: Positioning Imaging Plate
4 Performing constancy test 4.2 Positioning imaging plate Steps 1. Push the imaging plate into a light protection cover. Ensure that the active surface (blue side) of the imaging plate is facing the black side (without text) of the light protection cover. 2.
Page 11: Positioning Cone
4 Performing constancy test 3. Push the light protection cover into the large slot of the Quart test phantom (under the groove) as shown. 1 Test phantom 2 Groove 3 Imaging plate with light protection cover • The black side (without text) of the light protection cover must be facing up.
Page 12: Selecting Exposure Values
4 Performing constancy test 2. Position the cone as shown below. 1 X-ray unit 2 Long cone 3 Test phantom 4 Sensor/imaging plate 5 Correct positioning • Place the test phantom (3) on a flat surface. • Position the cone of the X-ray unit (1) vertically on the test phantom. •...
Page 13: Taking Test Exposure
4 Performing constancy test 4.5 Taking test exposure Steps 1. In the Romexis, right-click on the Patient for the test exposure from the patient list. 2. Select Capture. • For sensors, select the intraoral exposure. • For imaging plates, select Scan. 3.
Page 14 4 Performing constancy test 6. Select the Display properties option and name the exposure in the Comment field. This name differentiates the new test exposure from the other test exposures to be performed later on. The information is stored with the image and displayed as reference text.
Page 15: Evaluating Image Constancy
5 Evaluating image constancy 5 Evaluating image constancy Evaluate the constancy of the test image according to the following criteria. • Visual resolution capacity: The visual resolution capacity is tested with the aid of a lead line test pattern. The monitor image of the test exposure must have a minimum resolution of 5 line pairs/mm (clearly separate lines visible).
Page 16: Test Results, Constancy Test For Digital Intraoral X-Ray System
6 Test results, constancy test for digital intraoral X-ray system 6 Test results, constancy test for digital intraoral X-ray system Practice ACCEPTANCE TEST (reference image) X-ray system X-ray unit:_____________________________________________________ Digital sensor:__________________________________________________ Imaging plate scanner:___________________________________________ Test parameters Exposure values & time: _____ kV _____ mA ______ s, or program key ___________ Serial number of X-ray unit:__________________________________________ Serial number of digital sensor:_______________________________________ Serial number of imaging plate scanner:________________________________...
Page 17 6 Test results, constancy test for digital intraoral X-ray system CONSTANCY TESTS Year: Month/Session Line pair resolution; lp/mm ≥ Low contrast resolution; at least 4 elements visible Initials Year: Month/Session Line pair resolution; lp/mm ≥ Low contrast resolution; at least 4 elements visible Initials Year: Month/Session...
Page 20 KaVo Dental GmbH | Bismarckring 39 | 88400 Biberach | Deutschland www.kavo.com...
