Care instructions

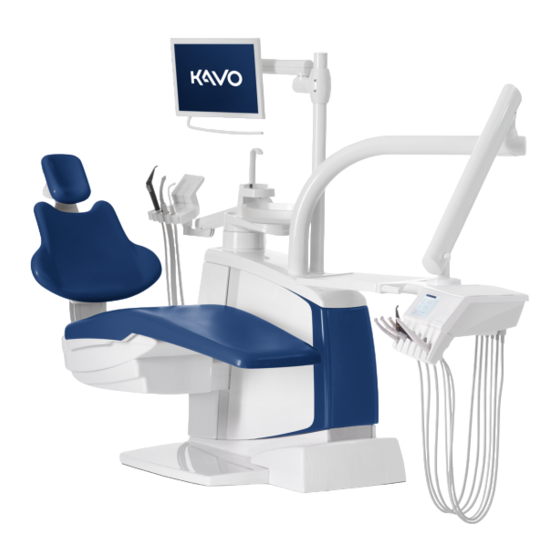

ESTETICA E70 Vision / E80 Vision

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESTETICA E70 Vision and is the answer not in the manual?

Questions and answers

Related Manuals for KaVo ESTETICA E70 Vision

Summary of Contents for KaVo ESTETICA E70 Vision

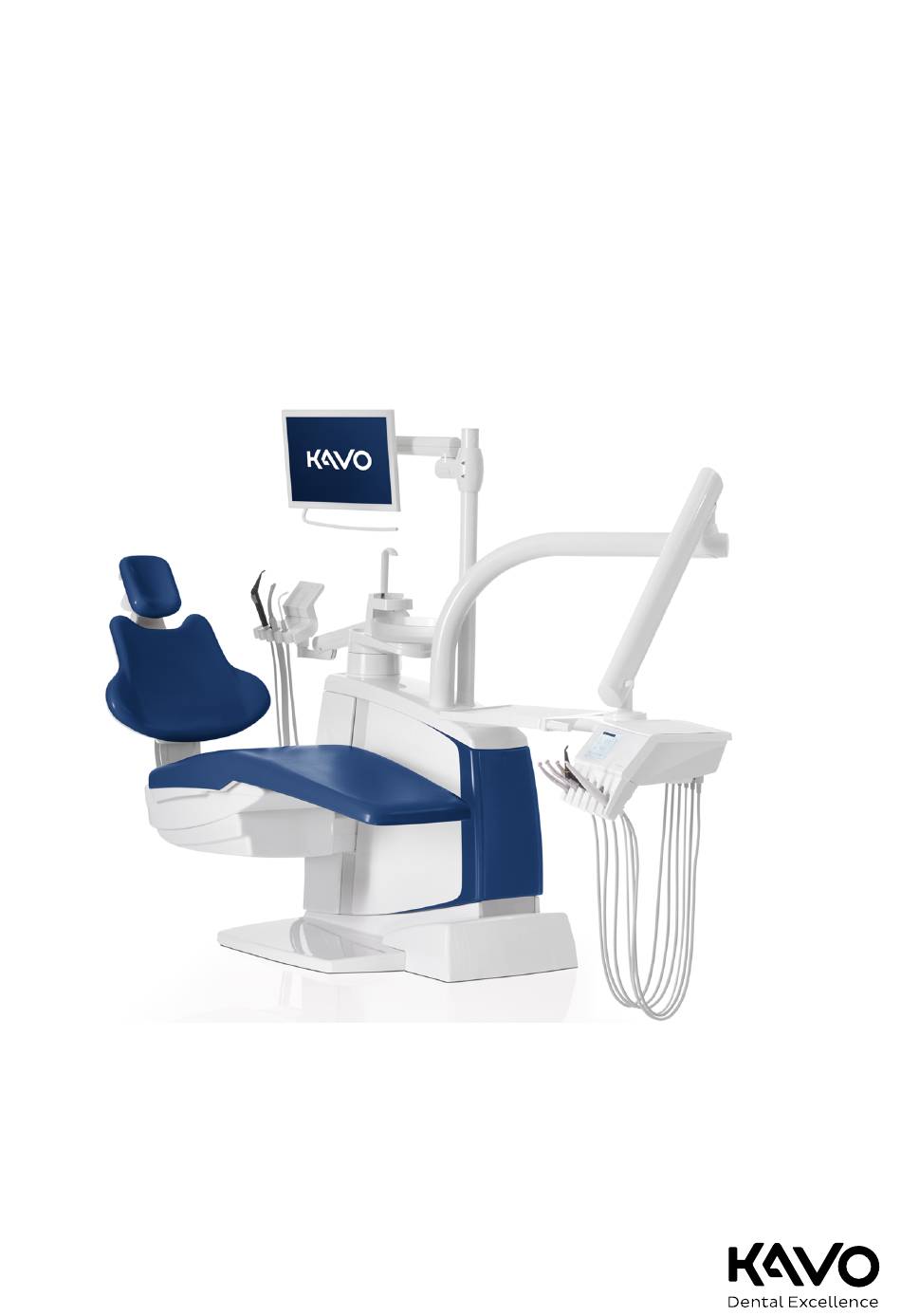

  • Page 1 Care instructions ESTETICA E70 Vision / E80 Vision...
  • Page 2 Distributed by: Manufacturer: KaVo Dental Technologies, LLC Kaltenbach & Voigt GmbH 11727 Fruehauf Drive Bismarckring 39 Charlotte, NC 28273 USA 88400 Biberach Tel. 847-550-6800 Germany Fax 847-550-6825 www.kavo.com...

  • Page 3: Table Of Contents

    Target group ...................... 4 2 Setup methods according to ISO 17664 ................5 2.1 instructions ........................5 2.2 General instructions for the reprocessing of KaVo treatment units........6 2.2.1 Overview of ESTETICA E70 Vision / E80 Vision reprocessing........8 2.3 Reprocessing of the surfaces of treatment centre / upholstery ..........9 2.4 Preparation of the dentist unit ..................

  • Page 4: User Instructions

    Care instructions ESTETICA E70 Vision / E80 Vision 1 User instructions | 1.1 User guide 1 User instructions 1.1 User guide Requirement Read these instructions prior to first startup to avoid misuse and prevent dam- age. Note Comply with the Instructions for Use of the treatment unit! 1.1.1 Abbreviations...

  • Page 5: Setup Methods According To Iso 17664

    Care instructions ESTETICA E70 Vision / E80 Vision 2 Setup methods according to ISO 17664 | 2.1 instructions 2 Setup methods according to ISO 17664 2.1 instructions The reprocessing consists of the following basic steps: ▪ Cleaning and disinfection ( manually or automatically) ▪...

  • Page 6: General Instructions For The Reprocessing Of Kavo Treatment Units

    Care instructions ESTETICA E70 Vision / E80 Vision 2 Setup methods according to ISO 17664 | 2.2 General instructions for the reprocessing of KaVo treatment units Note Dental Handpieces, Instruments and Accessories Please refer to respective manufacturer’s Instructions for Use (IFU) for ap- propriate cleaning, disinfecting and sterilization requirements.
  • Page 7 Care instructions ESTETICA E70 Vision / E80 Vision 2 Setup methods according to ISO 17664 | 2.2 General instructions for the reprocessing of KaVo treatment units Automatic disinfection KaVo recommends washer disinfectors in compliance with ISO 15883-1, which are operated using alkaline cleaning agents.

  • Page 8: Overview Of Estetica E70 Vision / E80 Vision Reprocessing

    Care instructions ESTETICA E70 Vision / E80 Vision 2 Setup methods according to ISO 17664 | 2.2 General instructions for the reprocessing of KaVo treatment units 2.2.1 Overview of ESTETICA E70 Vision / E80 Vision reprocessing Reprocessing items/medical Cleaning Disinfection...

  • Page 9: Reprocessing Of The Surfaces Of Treatment Centre / Upholstery

    See also: 2 Instructions for use of the treatment centre Locking the touchscreen ▶ Tap the "Lock screen" button on the dentist element or the KaVo Logo on the assistant element to lock the screen for wiping with a disinfectant. ð...
  • Page 10 Care instructions ESTETICA E70 Vision / E80 Vision 2 Setup methods according to ISO 17664 | 2.3 Reprocessing of the surfaces of treatment centre / upholstery ▶ Clean the surfaces and upholstery with a soft cloth and water, and wipe-dis- infect them with an approved surface disinfectant.

  • Page 11: Preparation Of The Dentist Unit

    Care instructions ESTETICA E70 Vision / E80 Vision 2 Setup methods according to ISO 17664 | 2.4 Preparation of the dentist unit 2.4 Preparation of the dentist unit 2.4.1 Preparation of the handle and holder pad/ anti- slip mat Cleaning and disinfection of the handle and holder pad/ antislip mat (T table / S table) ▶...

  • Page 12: Preparing The Instrument Holder

    Care instructions ESTETICA E70 Vision / E80 Vision 2 Setup methods according to ISO 17664 | 2.4 Preparation of the dentist unit 2.4.2 Preparing the instrument holder Note The handpiece tray with 5-handpieces holder (Mat. no. 30014236) and with 6-handpieces holder (Mat. no. 30014251) can be removed for easier cleaning.

  • Page 13: Reprocessing Of The Swing-Arm S Table (E70 Vision Only)

    Care instructions ESTETICA E70 Vision / E80 Vision 2 Setup methods according to ISO 17664 | 2.4 Preparation of the dentist unit Sterilize the instrument holder NOTICE Damage caused by sterilisation. ▶ Do not sterilise the instrument holder. 2.4.3 Reprocessing of the swing-arm S table (E70 Vision...

  • Page 14: Setting Up The Triple-Function And Multifunction Handpiece

    Note Wet the O-rings of the gripping sleeves after sterilisation using silicone grease (Mat. no. 1.000.6403) or KaVo Rota Spray 2 (Mat. no. 0.411.7510). After replacing the cannula, the air channel must be blown out before the start of treatment to ensure that the air exiting during treatment is dry.
  • Page 15 Care instructions ESTETICA E70 Vision / E80 Vision 2 Setup methods according to ISO 17664 | 2.4 Preparation of the dentist unit Accessories required: ▪ Tap water 30 C ± 5 ▪ Brush, e.g. medium-hard toothbrush ▶ Disassemble the gripping sleeve and cannula.
  • Page 16 Requirement The multifunctional handpiece has been reprocessed. ▶ Apply KaVo silicone grease (Mat. no. 1.000.6403) or KaVo Rota Spray 2 (Mat. no. 0.411.7510) to the O-rings of the joint between the gripping sleeve and cannula. Use cotton buds for this purpose.

  • Page 17: Preparation Of The Instrument Hoses

    Care instructions ESTETICA E70 Vision / E80 Vision 2 Setup methods according to ISO 17664 | 2.4 Preparation of the dentist unit Sterilisation in a steam sterilizer in compliance with ISO 13060 ▶ Weld the cannula and grip sleeve in sterile goods packaging.

  • Page 18: Reprocessing Of The Kit For Physiological Saline Solution And Surgical Motor

    Care instructions ESTETICA E70 Vision / E80 Vision 2 Setup methods according to ISO 17664 | 2.4 Preparation of the dentist unit ▶ If necessary, replace the turbine return air filter (Mat. no. 0.200.3098) and clean the filter holder. Note The turbine return air filter is in the same position in the dentist element vari- ant with S table.
  • Page 19 Permissible disinfectants (application range in accordance with the available manufacturer's instructions and national guidelines. Please note material safety data sheets.) KaVo recommends the following products based on the compatib- ility of the materials. The microbiological efficacy must be confirmed by the dis- infectant manufacturer.
  • Page 20 The re-processing steps for the handpiece tray are as follows: KaVo recommends washer disinfectors in compliance with ISO 15883-1, which are operated using alkaline cleaning agents. ▶ For program settings as well as cleansers and disinfectants to be used, please refer to the Instructions for Use of the thermodisinfector.
  • Page 21 The user is responsible for observing the regulations and conditions for steril- ity. The coolant container needs to be disposed and the hoses need to be changed after each patient. KaVo medical devices released for sterilisation are temperature-resistant up to 138 ℃ (280.4 °F). The following parts are released for sterilisation: ▪...

  • Page 22: Reprocessing Kavo Ergocam One

    Care instructions ESTETICA E70 Vision / E80 Vision 2 Setup methods according to ISO 17664 | 2.4 Preparation of the dentist unit Storage of the assembly kit for physiological saline solution Observe all necessary measures for hygiene when storing sterile goods. Store protected from dust and in a dry place, release with identification on the pack- aging.

  • Page 23: Preparation Of The Assistant Unit

    Care instructions ESTETICA E70 Vision / E80 Vision 2 Setup methods according to ISO 17664 | 2.5 Preparation of the assistant unit NOTICE Damage to the camera due to improper disinfection. Irreversible destruction of the camera. ▶ Disinfect with wipes only, do not use disinfectant sprays! ▶...

  • Page 24: Preparing The Connector For The Suction Hose

    Care instructions ESTETICA E70 Vision / E80 Vision 2 Setup methods according to ISO 17664 | 2.5 Preparation of the assistant unit ▶ Place the handpiece hoses in the designated places of the hygiene centre during the cleaning and germ reduction of the handpiece holder.

  • Page 25: Reprocessing Of Sieve Inserts And Suction Hoses

    Care instructions ESTETICA E70 Vision / E80 Vision 2 Setup methods according to ISO 17664 | 2.5 Preparation of the assistant unit Cleaning and disinfection of the suction hose connector ▶ Clean the disassembled parts under running water. ▶ Thermodisinfect the disassembled parts for at least 10 minutes at 93 °C...

  • Page 26: Preparation Of The Sleeve Of The Aquamat Device

    Care instructions ESTETICA E70 Vision / E80 Vision 2 Setup methods according to ISO 17664 | 2.6 Reprocessing of the patient element (optional) ▶ If needed, insert a new sieve insert (Mat. no. 07633423) into the seat. ▶ Wipe the suction tubes with disinfectant.

  • Page 27: Preparation Of The Tumbler

    Care instructions ESTETICA E70 Vision / E80 Vision 2 Setup methods according to ISO 17664 | 2.6 Reprocessing of the patient element (optional) 2.6.1 Preparation of the tumbler ▶ Reprocess as specified by the manufacturer. 2.6.2 Preparation of the tumbler holder and filler NOTICE Water in the device.

  • Page 28: Preparation Of The Spittoon

    Care instructions ESTETICA E70 Vision / E80 Vision 2 Setup methods according to ISO 17664 | 2.6 Reprocessing of the patient element (optional) Sterilisation of the tumbler holder and filler NOTICE Damage caused by sterilisation. ▶ Do not sterilise the tumbler holder and filler.

  • Page 29: Automatic Cleaning Programmes

    During normal operation of the treatment center, the continuous germ reduc- tion function secures continuous germ reduction in the water conducting sys- tems due to the automatic dosing of the germ reduction liquid cleaner, KaVo OXYGENAL 6, making it more difficult for microorganisms to multiply and spread.
  • Page 30 Care instructions ESTETICA E70 Vision / E80 Vision 2 Setup methods according to ISO 17664 | 2.7 Automatic cleaning programmes ▶ Tap the button of the desired cleaning programme. ð The individual preparation steps are shown on the touchscreen and can be run in sequence.
  • Page 31 Care instructions ESTETICA E70 Vision / E80 Vision 2 Setup methods according to ISO 17664 | 2.7 Automatic cleaning programmes ð A progress bar indicates the cleaning steps. S-table ▶ Lock the swing-arm into the front catching position to ensure that the hand- piece is removed.

  • Page 32: Discontinuing A Cleaning Programme

    Care instructions ESTETICA E70 Vision / E80 Vision 2 Setup methods according to ISO 17664 | 2.7 Automatic cleaning programmes Placing the COMFORTbase in the hygiene centre Note A seat adapter for the germ reduction attachment is available for the COM- FORTbase.

  • Page 33: Cleaning Programs "Morning" And "Evening

    In the short cleaning programme "Evening", all instruments on the dentist ele- ment and assistant element are rinsed for 20 seconds each. In addition, the suction system and the spittoon bowl are cleaned with DEKAPURE Gel. KaVo re- commends running the "Evening" cleaning programme after surgical interven- tions.

  • Page 34: Weekly" Cleaning Programme

    Care instructions ESTETICA E70 Vision / E80 Vision 2 Setup methods according to ISO 17664 | 2.7 Automatic cleaning programmes Workflow of the cleaning programmes "Morning" and "Evening" Set rinsing time ▶ Tap "Settings" to open the "Settings" menu. ▶ Then tap "General settings" followed by "Advanced settings".
  • Page 35 The "Weekly" cleaning programme prevents the formation of microorganisms during extended downtimes. During the "Weekly" cleaning programme, the af- ferent water ducts are automatically filled with a higher concentration of KaVo OXYGENAL 6 cleaner. The "Weekly" cleaning programme takes approx. 45 minutes to complete.
  • Page 36 Care instructions ESTETICA E70 Vision / E80 Vision 2 Setup methods according to ISO 17664 | 2.7 Automatic cleaning programmes ð A progress bar indicates the cleaning steps: ▶ Wait for the cleaning programme to be completed. ð The following message is displayed after completion of the cleaning pro- gramme: ▶...

  • Page 37: Manual Internal Cleaning Of The Suction Hoses

    2 Setup methods according to ISO 17664 | 2.8 Reprocessing of the handpiece holder Additional intensive germ reduction during period of non-use KaVo recommends to run a second "weekly" cleaning, e.g. during semester breaks at universities. This flushes the parts of the unit and replaces the germ reduction liquid cleaner.
  • Page 38 Care instructions ESTETICA E70 Vision / E80 Vision 2 Setup methods according to ISO 17664 | 2.8 Reprocessing of the handpiece holder ▶ Lift the handpiece holder up and take it out. ▶ Check the drain. ▶ Clean the handpiece holder under running water and insert it.

  • Page 39: Preparation Of The Amalgam Separator

    Care instructions ESTETICA E70 Vision / E80 Vision 2 Setup methods according to ISO 17664 | 2.9 Preparation of the amalgam separator 2.9 Preparation of the amalgam separator The following systems can be used as options: ▪ "Dürr" Amalgam separator ▪...

  • Page 40: Reprocessing Of The Service Table 1568

    Care instructions ESTETICA E70 Vision / E80 Vision 2 Setup methods according to ISO 17664 | 2.11 Reprocessing of the service table 1568 2.11 Reprocessing of the service table 1568 Cleaning and disinfection NOTICE Non-colour-fast textiles. Non-colour-fast textiles can cause permanent discoloration.

  • Page 41: Replacing And Checking Cleaning And Germ Reduction Agents

    Care instructions ESTETICA E70 Vision / E80 Vision 3 Replacing and checking cleaning and germ reduction agents | 3.1 Replace the DEKAPURE Gel cleaner 3 Replacing and checking cleaning and germ reduction agents 3.1 Replace the DEKAPURE Gel cleaner Requirement The device must be turned on when changing the DEKAPURE Gel bottle.

  • Page 42: Replace The Oxygenal 6 Cleaner

    See also :Safety data sheet 3.2 Replace the OXYGENAL 6 cleaner Only KaVo OXYGENAL 6 cleaner (Mat. no. 0.489.3451) should be used for KaVo water germ reduction systems. ▶ Wipe up any spilled OXYGENAL immediately in order to prevent discoloura- tion of the surfaces.

  • Page 43: Check The Oxygenal 6 Concentration

    Care instructions ESTETICA E70 Vision / E80 Vision 3 Replacing and checking cleaning and germ reduction agents | 3.3 Check the OXYGENAL 6 concentration The touchscreen shows a status message when the bottle is taken out of the unit. In order to display the "No Oxygenal bottle" status message, tap first the arrow and then the status message.
  • Page 44 Care instructions ESTETICA E70 Vision / E80 Vision 3 Replacing and checking cleaning and germ reduction agents | 3.3 Check the OXYGENAL 6 concentration ▶ Immerse a Merckoquant Peroxide Test Strip in the liquid. ð Compare the colours and read the value: 5 mg/l is shown for a concentra- tion of 200ppm.
  • Page 45 Care instructions ESTETICA E70 Vision / E80 Vision 3 Replacing and checking cleaning and germ reduction agents | 3.3 Check the OXYGENAL 6 concentration Other concentrations can be tested using the following table: H2O2 concentration Measuring cup Ratio water : treated...
