Instructions for use
PHYSIO Evo/Evo F/One

Advertisement

Table of Contents
loading

Related Manuals for KaVo PHYSIO Evo

Summary of Contents for KaVo PHYSIO Evo

  • Page 1 Instructions for use PHYSIO Evo/Evo F/One...
  • Page 2 Distributed by: Manufacturer: KaVo Dental GmbH KaVo Dental GmbH Bismarckring 39 Bismarckring 39 88400 Biberach 88400 Biberach Germany Germany Phone +49 7351 56-0 www.kavo.com Fax +49 7351 56-1488...

  • Page 3: Table Of Contents

    6.3 PHYSIO One........................33 6.3.1 Adjust the seat height..................33 6.3.2 Adjusting the seat and backrest ................. 33 6.4 Trigger brake PHYSIO Evo/Evo F/One (castors with locking brake)........33 7 Reprocessing methods according to DIN EN ISO 17664 ..........35 3 / 40...
  • Page 4 Instructions for use PHYSIO Evo/Evo F/One Table of contents 7.1 General care instructions ....................35 7.2 Cleaning and disinfection ....................35 8 Troubleshooting ........................ 36 4 / 40...

  • Page 5: User Instructions

    See Chapter on User Instructions/Hazard Levels Original language German Service KaVo Technical Service If you have any questions or complaints, please contact the KaVo Technical Service: +49 (0) 7351 56-1000 service.einrichtungen@kavo.com or service.treatmentunits@kavo.com Please refer to the serial number of the product in all inquiries! For further in- formation, please visit: www.kavo.com...

  • Page 6: Terms And Conditions Of Warranty

    1 User instructions | 1.1 Terms and conditions of warranty 1.1 Terms and conditions of warranty KaVo provides the final customer with a warranty that the product cited in the transfer form will function properly and guarantees zero defects in the material...

  • Page 7: Information On The Packaging: Storage And Transportation

    Terms and Conditions, Art. 28). Outside Germany NOTE KaVo shall not be held liable for damage arising from transportation. The shipment must be checked on arrival. If the packaging is visibly damaged on delivery, please proceed as follows: 1. The recipient of the package must record the loss or damage on the delivery receipt.
  • Page 8 Instructions for use PHYSIO Evo/Evo F/One 1 User instructions | 1.2 Transport and storage Permissible stacking load Transport upright Properly dispose of cardboard 8 / 40...

  • Page 9: Safety

    Damage from unsuitable accessories. The use of accessories, other components, and cables other than those spe- cified, with the exception of components and cables sold by KaVo as spare parts for internal components, can increase emissions or reduce the electromagnetic immunity of the product.

  • Page 10: Description Of The Product

    3 Description of the product 3.1 Intended use The PHYSIO Evo/Evo F/One is a dentist chair for dentists in a dental surgery in accordance with DIN EN ISO 7493. All versions of the dentist chair PHYSIO Evo/Evo F/One are tested and approved in accordance with the currently applicable guidelines.

  • Page 11: Dentist Chair Physio Evo/Evo F/One

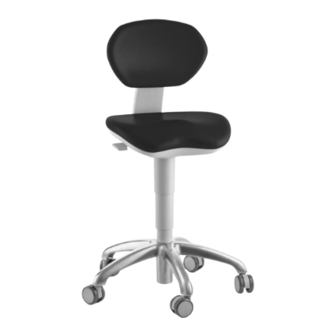

    Instructions for use PHYSIO Evo/Evo F/One 3 Description of the product | 3.2 Dentist chair PHYSIO Evo/Evo F/One 3.2 Dentist chair PHYSIO Evo/Evo F/One KaVo PHYSIO Evo/Evo F/One The dentist chair PHYSIO Evo/Evo F/One delivered from the factory with soft castors Mat.

  • Page 12: Rating Plates And Instruction Labels

    Instructions for use PHYSIO Evo/Evo F/One 3 Description of the product | 3.3 Rating plates and instruction labels 3.3 Rating plates and instruction labels The rating plates are located underneath the stool. Rating plate KaVo PHYSIO Evo/Evo F/One Device type...

  • Page 13: Technical Specifications Physio Evo F

    Instructions for use PHYSIO Evo/Evo F/One 3 Description of the product | 3.5 Technical Specifications PHYSIO Evo F Seat width max. 400 mm Seat depth 380 mm Adjustment range of the backrest in- 30° clination Seat inclination 15° Altitude 1000 mm Width: 600 mm...
  • Page 14 Instructions for use PHYSIO Evo/Evo F/One 3 Description of the product | 3.6 Technical Specifications PHYSIO One Adjustment range of the backrest in- 15° clination Seat inclination 15° Altitude 1000 mm Width: 600 mm Weight 12 kg Permissible load 150 kg 14 / 40...

  • Page 15: Installation

    5. 5% to 95% non-condensating 6. Air pressure 700 hPa to 1060 hPa 4.1.2 Packed items The dentist chair PHYSIO Evo/Evo F/One is packed in a special carton. Beside the dentist chair, the packaging contains further assembly kits according to the order.

  • Page 16: Mounting The Castors

    Instructions for use PHYSIO Evo/Evo F/One 4 Installation | 4.2 Assembly of dentist chair PHYSIO Evo/Evo F/One 4.2.1 Mounting the castors NOTE Use the castors that are appropriate for the flooring. Only use soft castors for hard flooring. Only use hard castors for soft flooring.

  • Page 17: Mounting The Upholstery

    Instructions for use PHYSIO Evo/Evo F/One 4 Installation | 4.2 Assembly of dentist chair PHYSIO Evo/Evo F/One 4.2.2 Mounting the upholstery 4 Engage the seat upholstery at the 4 ball pins. 17 / 40...

  • Page 18: Mounting The Backrest Upholstery

    Instructions for use PHYSIO Evo/Evo F/One 4 Installation | 4.2 Assembly of dentist chair PHYSIO Evo/Evo F/One 4.2.3 Mounting the backrest upholstery 4 Engage the backrest upholstery at the 4 ball pins. 18 / 40...

  • Page 19: Adjust The Gas-Pressure Spring

    NOTE The pressure point of the gas-pressure spring is set at the factory. If the seat of the dentist chair PHYSIO Evo/EvoF/One is not adjusted securely, the pres- sure point of the gas-pressure spring must be adapted. Also refer to: 6.1.1 Adjust the seat height, Page 29...

  • Page 20: Mounting The Top Part Of The Chair

    Instructions for use PHYSIO Evo/Evo F/One 4 Installation | 4.3 Assembly of dentist chair PHYSIO Evo F 4.3.1 Mounting the top part of the chair 4 Mount the intervention protection cover ① to the top part of the chair, slide them together and guide over gas-pressure spring ②.

  • Page 21: Mounting The Upholstery

    Instructions for use PHYSIO Evo/Evo F/One 4 Installation | 4.3 Assembly of dentist chair PHYSIO Evo F 4.3.2 Mounting the upholstery 4 Engage the seat upholstery at the 4 ball pins. 4.3.3 Mounting the backrest cushion 4 Engage the backrest upholstery at the 4 ball pins.
  • Page 22 Instructions for use PHYSIO Evo/Evo F/One 4 Installation | 4.3 Assembly of dentist chair PHYSIO Evo F 22 / 40...

  • Page 23: Disassembly

    Instructions for use PHYSIO Evo/Evo F/One 5 Disassembly | 5.1 Dismantling the dentist chair PHYSIO Evo/Evo F/One 5 Disassembly NOTE Only specially trained personnel may work on or exchange parts of the seat adjustment element. 5.1 Dismantling the dentist chair PHYSIO Evo/Evo F/ 4 Remove the backrest and seat upholstery to prevent damage.

  • Page 24: Dismantling The Gas-Pressure Spring

    If the gas-pressure spring is knocked out of the stool base too violently, this could lead to damage to the paintwork of the dentist chair PHYSIO Evo/One. To prevent damage to the paintwork, you can place a piece of wood between the gas-pressure spring and the hammer.
  • Page 25 Instructions for use PHYSIO Evo/Evo F/One 5 Disassembly | 5.3 Dismantling the gas-pressure spring 25 / 40...

  • Page 26: Dismantling The Gas-Pressure Spring Evo F

    Instructions for use PHYSIO Evo/Evo F/One 5 Disassembly | 5.3 Dismantling the gas-pressure spring 5.3.2 Dismantling the gas-pressure spring Evo F Also refer to: 5.2 Remove the intervention protection cover of the gas-pressure spring, Page 23 4 Dismantle the intervention protection cover of the gas-pressure spring on the top part of the chair.
  • Page 27 Instructions for use PHYSIO Evo/Evo F/One 5 Disassembly | 5.3 Dismantling the gas-pressure spring 4 Unscrew 3 countersunk screws. 27 / 40...
  • Page 28 Instructions for use PHYSIO Evo/Evo F/One 5 Disassembly | 5.3 Dismantling the gas-pressure spring 4 Dismantle the spring mechanism from the standpipe. 4 Use the soft hammer and an appropriate pipe, e.g. larger-sized socket wrench, to drive the gas-pressure spring out of the base.

  • Page 29: Operation

    Instructions for use PHYSIO Evo/Evo F/One 6 Operation | 6.1 PHYSIO Evo 6 Operation 6.1 PHYSIO Evo PHYSIO Evo ① Adjust the seat height ② Adjust the seat angle ③ Adjust the backrest angle 6.1.1 Adjust the seat height 4 Activate the lever ① on the left forwards.

  • Page 30: Adjust The Backrest Angle

    Instructions for use PHYSIO Evo/Evo F/One 6 Operation | 6.1 PHYSIO Evo 6.1.3 Adjust the backrest angle NOTE The backrest can be adjusted in two ways: - freely selectable inclination with locking - - freely moveable backrest for active support of the back muscles 4 Loading the seat and backrest.

  • Page 31: Physio Evo F

    Instructions for use PHYSIO Evo/Evo F/One 6 Operation | 6.2 PHYSIO Evo F 6.2 PHYSIO Evo F PHISIO Evo F ① Foot actuator plate for adjustment ② Adjust the seat angle of the seat height ③ Adjust the backrest angle 6.2.1 Adjust the seat height...

  • Page 32: Adjust The Backrest Angle

    Instructions for use PHYSIO Evo/Evo F/One 6 Operation | 6.2 PHYSIO Evo F 6.2.3 Adjust the backrest angle NOTE The backrest can be adjusted in two ways: - freely selectable inclination with locking - - freely moveable backrest for active support of the back muscles 4 Loading the seat and backrest.

  • Page 33: Physio One

    4 Incline the seat and backrest as you wish. 4 Release the rear lever ② on the right to fix the seat and backrest. 6.4 Trigger brake PHYSIO Evo/Evo F/One (castors with locking brake) 4 Move chair into position and press the locking lever downwards to lock the brake.
  • Page 34 Instructions for use PHYSIO Evo/Evo F/One 6 Operation | 6.4 Trigger brake PHYSIO Evo/Evo F/One (castors with locking brake) 34 / 40...

  • Page 35: Reprocessing Methods According To Din En Iso 17664

    Instructions for use PHYSIO Evo/Evo F/One 7 Reprocessing methods according to DIN EN ISO 17664 | 7.1 General care instructions 7 Reprocessing methods according to DIN EN ISO 17664 7.1 General care instructions CAUTION Product damage due to improper disinfection.
  • Page 36 NOTE The pressure point of the gas-pressure spring is set at the factory. If the seat of the dentist chair PHYSIO Evo/EvoF/One is not adjusted securely, the pres- sure point of the gas-pressure spring must be adapted. Also refer to: 4.2.4 Adjust the gas-pressure spring, Page 19...
