NOTE: If a delay Auto-Set time is needed, it is
recommended that this time is set to one minute
more than the Warning Period. The delay auto-
timer must always be set higher than the Warning
Period.
4. Select the areas to unset for the Auto-Unsets
programmed previously. These are usually the
same as the areas that have been selected to
'Set'.
5. The '12 month calendar' is used for repetitive
holidays that need to be repeated every year,
such as: this may be needed for national events,
memorial days or birthdays.
Once completed, exit the screen by clicking 'OK'
and download the data to the Panel.

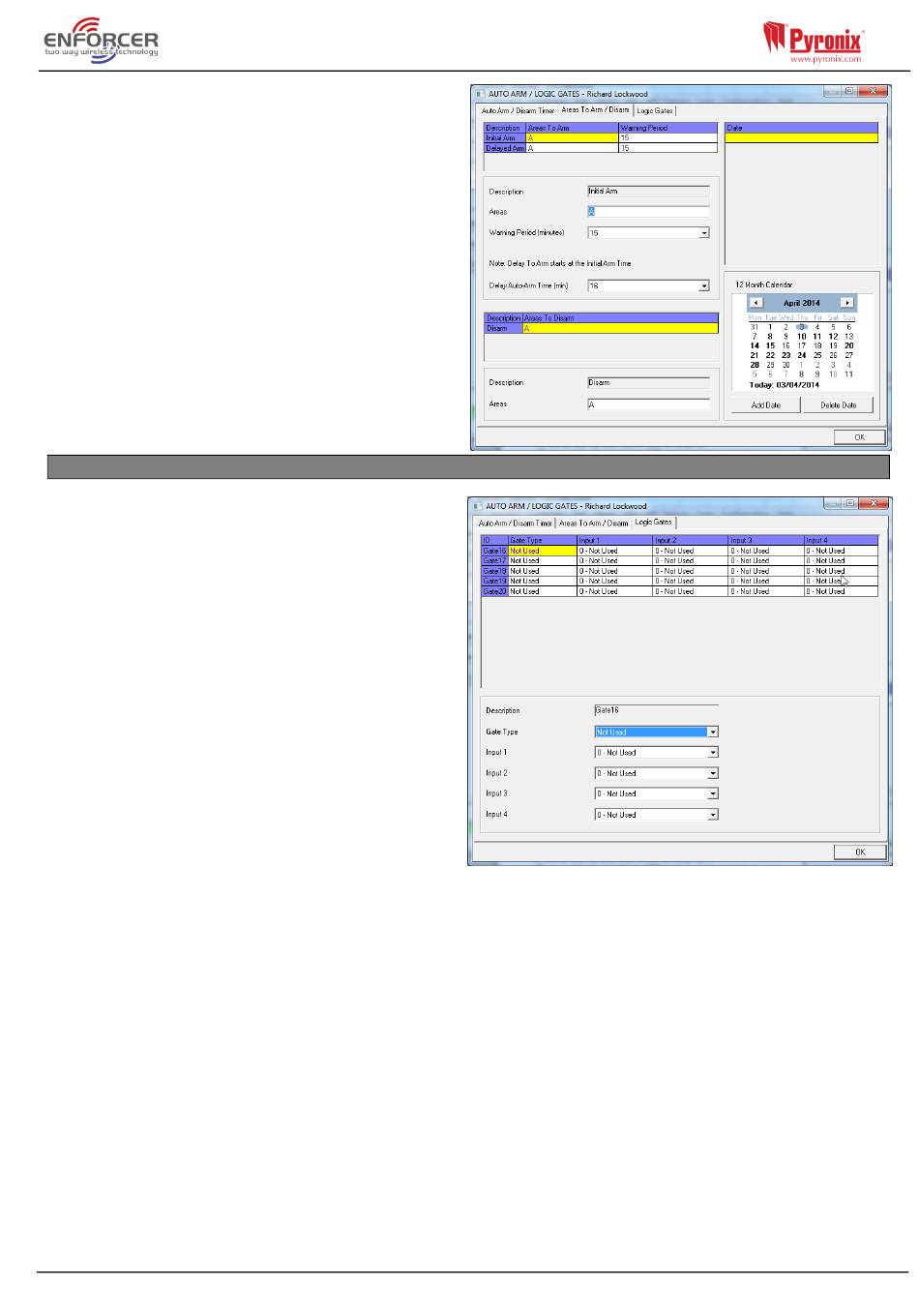

8.3 Programming Logic Gates

Logic Gates allow the use of 'logical operations'
('OR', 'AND' and 'NOT') to give greater control
over how an output is activated. Rather than
having an output activated following an 'intruder'
alarm, it is possible to create an output that is
activated, such as for example, when there is an
'intruder in area A' AND when area C is also set.
This could be useful in a scenario where different
offices are occupied in different areas, and do not
require an external communicator or siren to
signal an alarm in one area, if other areas are
still occupied.
Five Logic Gates are available for programming.
To program:
1. Select the 'Logic Gates' tab
2. Select the gate type: 'AND', 'OR', 'NOT'
3. Select the inputs (up to four can be selected).
These are the input types of the EURO 46 APP
Panel.
4. Up to five Logic Gates can be programmed (Gates 16-20). These can only be programmed in the
UDL software under the 'Inputs/Outputs' button.
NOTE 1: Each Logic Gate can only be programmed with one 'logical operator', such as: a Logic Gate
can be programmed as A or B or C, but NOT A or B and C. If it is desirable to combine different
logical operators, the Logic Gates will need to be split. Thus to obtain A or B and C the following logic
can be used: Logic Gate 1 = A OR B; Logic Gate 2 = Logic Gate 1 AND C. The following example
shows how to program the command:
{["Burglary Any" OR "Tamper Any"] AND "Ready C"}:
NOTE 2: Only Gates 16-20 can be programmed. Gates 1-15 are for future use
