2.1.2 Camber

We mount the wheels according to your specifications to
the desired camber. With the camber you can change the
distance at the top between the driving wheels (for the
possible measurements see chapter 2.1.1).

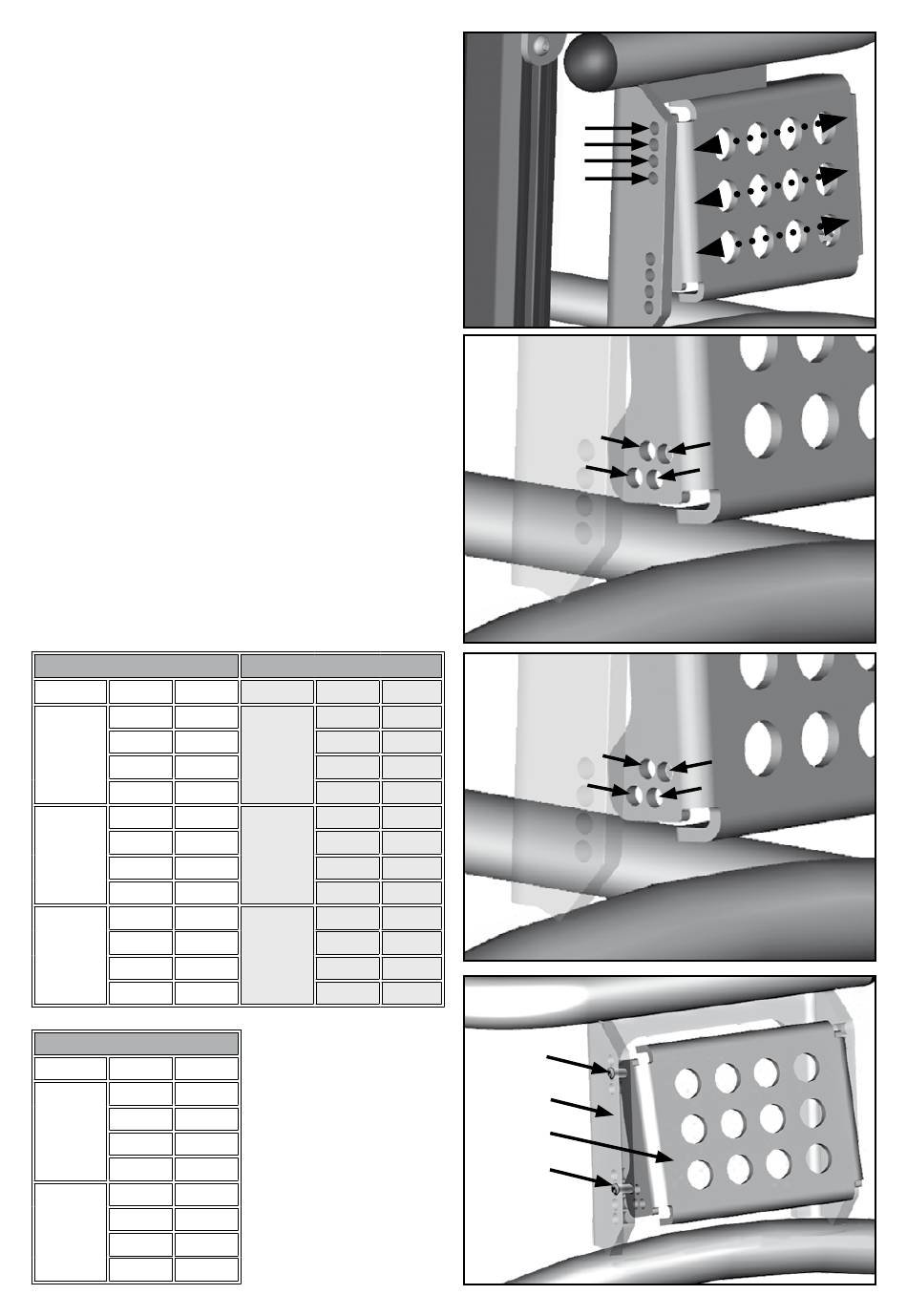

Picture 1 shows each row (1-3) of the quick release axle for
the appropriate wheel size (see chart below) as well as the
appropriate attachment (A, B, C, D) of the axle plate in the
axle plate holder.
Picture 2 shows the bore picture for the possible camber
setting for frame size 1 and 2,
Picture 3 shows the bore picture for the possible camber
setting for frame size 3 and 4.
(4) To change the camber remove the driving wheels and
secure the mobile standing device from rolling away with
the wheel locks of the back casters.
• Remove on both sides both screws (A).
• Remove on both sides both screws (B).
• Move the axle plate (C) in the axle plate holder (D)
corresponding to the details on the basis of the
chart below.
• Replace all of the screws and tighten them and re-
place the wheels.
Frame size 1
wheel size camber position wheel size camber position
3° 3A
6° 3A
24"
9° 3B
12° 3C
3° 2A
6° 2A
26"
9° 2B
12° 2C
3° 1A
6° 1A
28"
9° 1B
12° 1C
Frame size 3
wheel size camber position
0° 3A
3° 3A
32"
6° 3B
9° 3C
0° 1A
3° 1A
36"
6° 1B
9° 1C
Frame size 2
3° 3B
6° 3C
28"
9° 3C
12° 3D
3° 2A
6° 2A
30"
9° 2B
12° 2C
3° 1A
6° 1A
32"
9° 1B
12° 1C
(1)
A
B
C
D
(2)
9°
12°
(3)
6°
9°
(4)
(A)
(D)
(C)
(B)
Service Record
1
2
3
3°
6°
0°
3°
