ASSEMBLY GROUP 3D FOOT
PLATES WITH ANGLE ADJUSTMENT

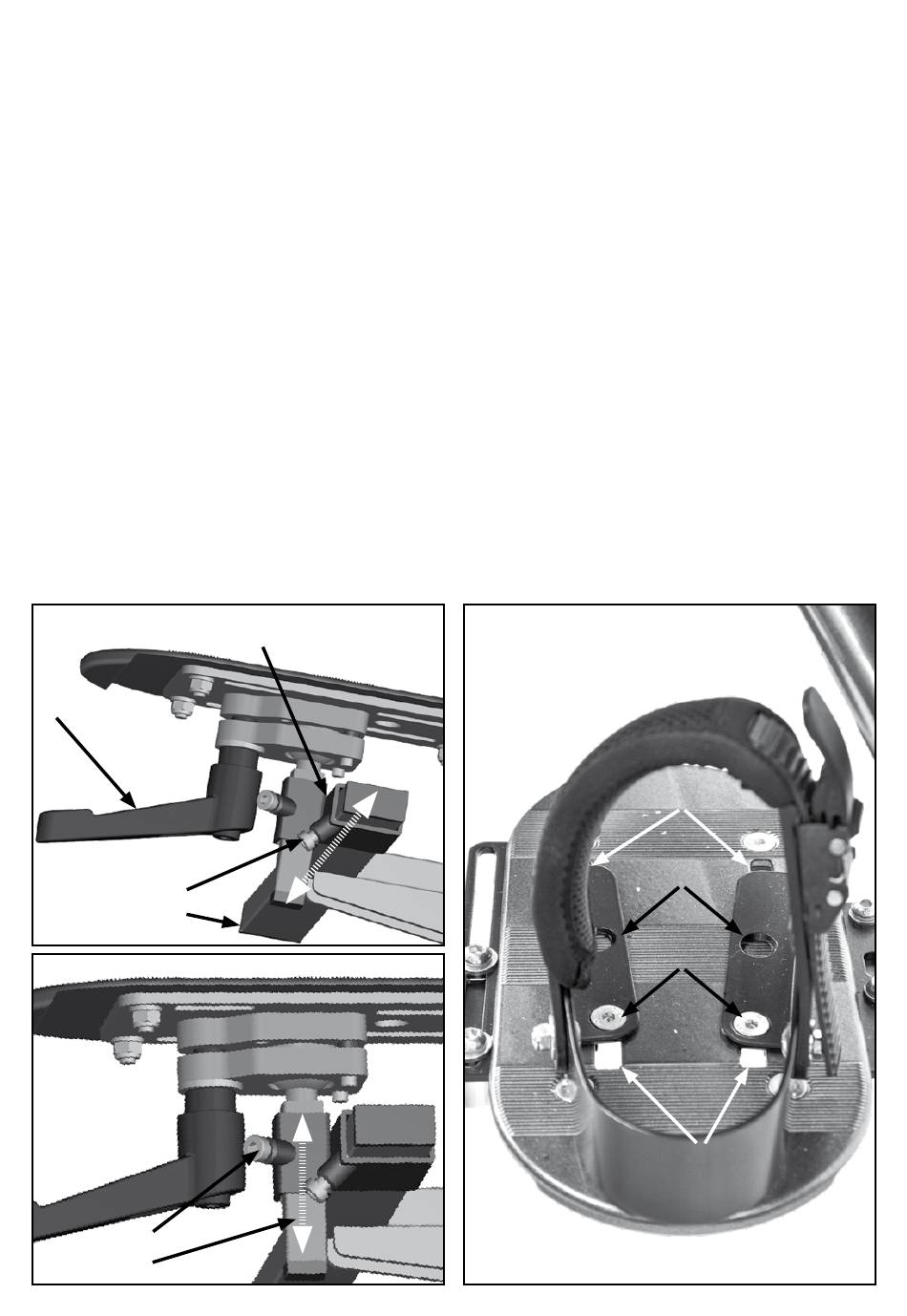

2.4.1 Setting the angle of the 3D foot plates

The 3D foot plates can be adjusted, tilted and turned three-
dimensional (This can be done seperately to one another
and stepless.).
(1) To adjust the 3D-angle:
Loosen the clamp lever (A) and place the foot plate
in the desired tilt/position/rotation.
Retighten the clamp lever (A).

2.4.2 Abducting the 3D foot plates

(1) To abduct:
Loosen the set screw (B) and move the foot plate
along the pillar (C) to the desired position.
Retighten the set screw (B).

2.4.3 Setting the height of the 3D foot plates

(2) To set the height:
Loosen the set screw (A) and
move the respective foot plate along the pillar (B)
in the desired position.
Retighten the set screw (A).
(1)
(A)
(B)
(C)
(2)
(A)
(B)
(D)

2.4.4 Setting the depth of the 3D foot plates

(1) To set the depth:
Loosen the set screw (B) and completely remove
the foot plate bracket (D).
Turn the bracket (D) 180° and
mount it back on the pillar (C).
Retighten the set screw (B).
2.5

FOOT SHELLS

(3) To shift the foot shells:
Loosen both screw connections (A),
slide the foot shell along the elongated hole
forward or backward in the desired position and
retighten the screw connections (A).
(3) To displace the foot shells:
Remove both screw connectioins (A),
displace the foot shell in the alternative drilled
holes (B) and/or the alternative elongated holes
(C),
Replace and retighten the screw connections (A).
(3)
Service Record
(C)
(B)
(A)
(C)
