2.9 ASSEMBLY GROUP POSTERIOR
TRUSS PAD WITH CRANK AND
SWIVEL BRACKET
ATTENTION
THE POSTERIOR TRUSS PAD MUST HAVE BEEN SET
TO THE INDIVIDUAL MEASUREMENTS OF THE CHILD/
ADOLESCENT AS EXACT AS POSSIBLE BEFORE THE FIRST
USE OF THE MOBILE STANDING DEVICE. WHEN THE USER
IS STANDING IN THE MOBILE STANDING DEVICE, ONLY
FINE ADJUSTMENTS ARE THEN ALLOWED TO BE MADE.

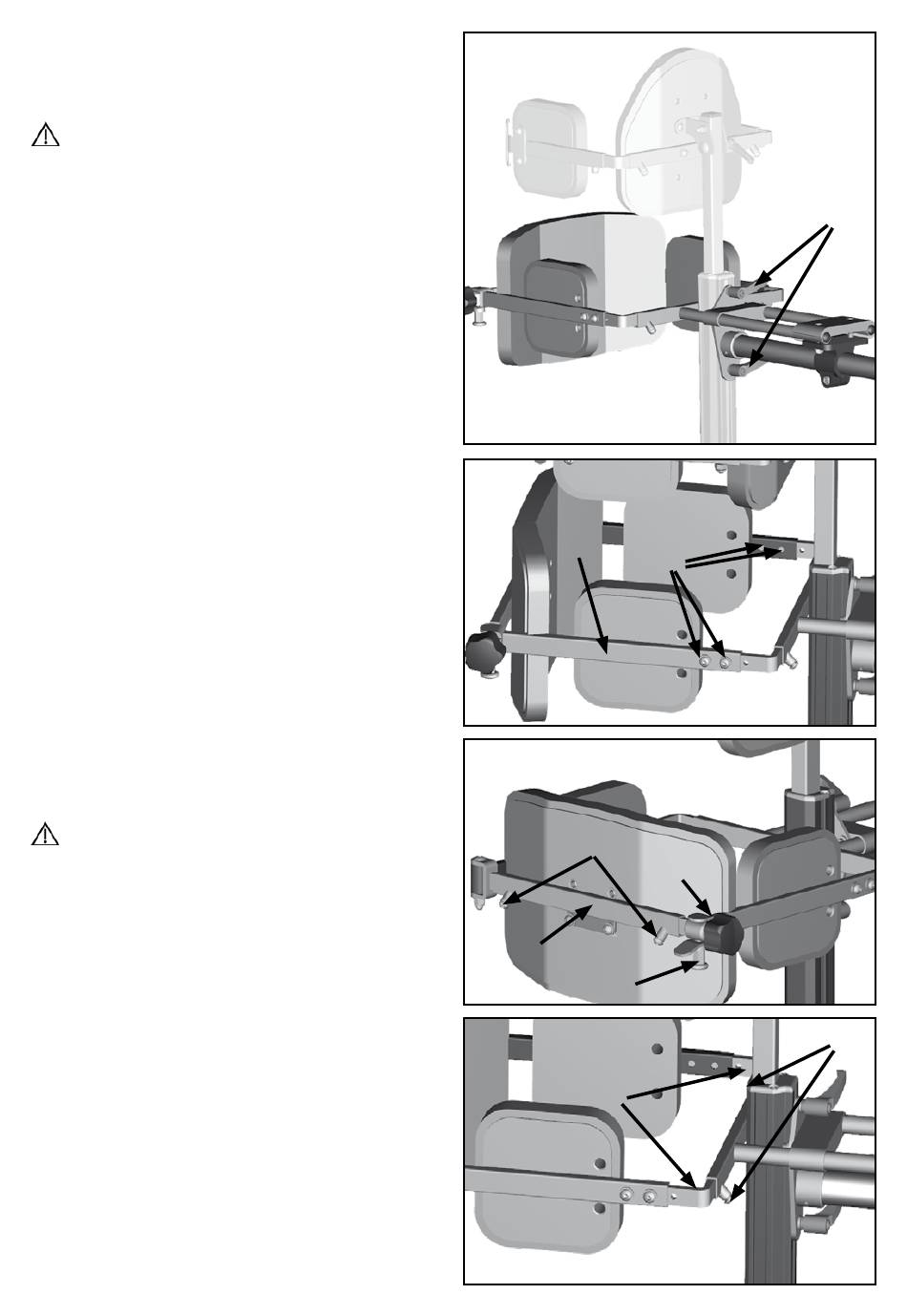

2.9.1 Adjusting the height

(1) To adjust the height:
• Loosen both clamp levers (A),
• move the whole posterior truss pad to the desired
height,
• retighten the clamp levers (A).

2.9.2 Adjusting the depth

(2) To adjust the depth:
• Remove all four screws (A),
• move the pillar (B) in the alternative drill holes and
• screw all four screws (A) back on tightly.

2.9.3 Adjusting the width

To adjust the width:
• (3) Loosen both set screws (C) on the back.
• (4) Loosen both set screws (E) on the front.
• (4) Telescope both holders (F) in front to the desired
width.
• (3) Telescope the rod (D) to the same width.
• (4) Retighten both set screws (E) on the front.
• (3) Retighten both set screws (C) on the back.
• Be sure that the rod (D) is secure and cannot move
around.
ATTENTION
CRUCIAL FOR THE TIGHT AND RELIABLE LOCK WITHOUT
PLAY OF THE POSTERIOR TRUSS PAD IS THE STAR KNOB
SCREW.
IN BOTH DESIGNS OF THE POSTERIOR TRUSS PADS, THE
STAR KNOB SCREW MUST BE CLOSED TIGHTLY. THE LATCH
ALONE IS NOT ENOUGH FOR STABILIZING! WITHOUT A FIRM
FIT OF THE STAR KNOB SCREW, THE MOBILE STANDING DE-
VICE IS NOT USEABLE.
(1)
(2)
(B)
(3)
(C)
(D)
(B)
(4)
(F)
Service Record
(A)
(A)
(A)
(E)
17
