2.6 ASSEMBLY GROUP CHEST TRUSS
PAD
INFORMATION
The truss pads can be equipped with either set screws or
clamp levers.
In the following chapters the setting process will be
described according to the respective picture. Should
your mobile standing device be equipped differently then
please proceed correspondingly.
ATTENTION
THE CHEST TRUSS PAD MUST HAVE BEEN SET TO
THE INDIVIDUAL MEASUREMENTS OF THE CHILD/
ADOLESCENT AS EXACT AS POSSIBLE BEFORE THE FIRST
USE OF THE MOBILE STANDING DEVICE. WHEN THE USER
IS STANDING IN THE MOBILE STANDING DEVICE, ONLY
FINE ADJUSTMENTS ARE THEN ALLOWED TO BE MADE.

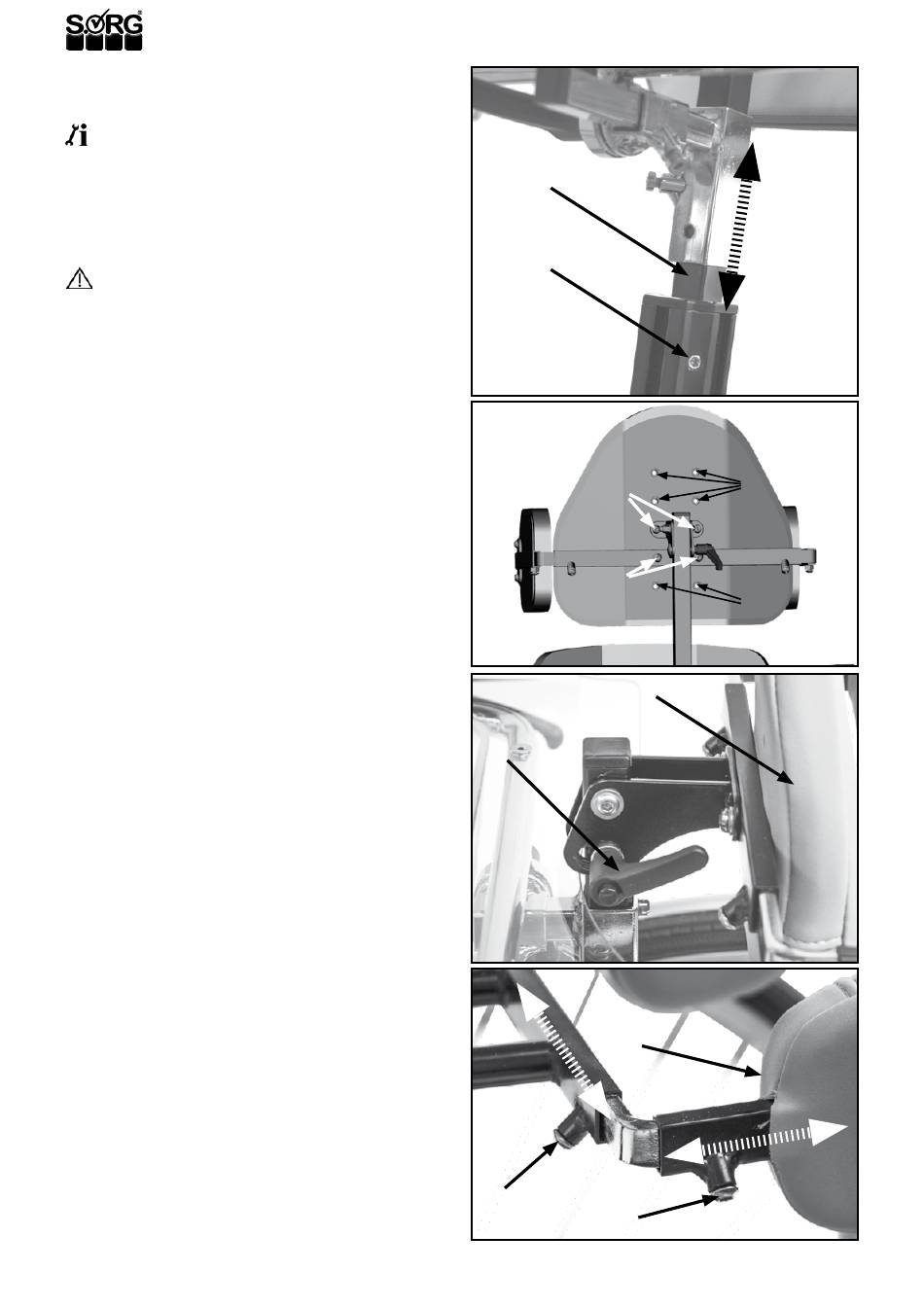

2.6.1 Height of the chest truss pad

(1) To adjust the height:
• Loosen the set screw (A) ,
• telescope the whole pillar of the chest truss pad
(B) in the desired position and
• retighten the screw (A).
(2) And/or :
• Remove both screws (A),
• move the chest truss pad in the alternative holes
(B) and
• retighten both screws (A).

2.6.2 Angle of the chest truss pad

(3) To adjust the angle:
• Loosen the clamp lever (A),
• place the chest truss pad (B) to the desired angle
and
• retighten the clamp lever (A).

2.6.3 Side chest truss pad

(2) To adjust the height:
• Remove both screws (C),
• place the holder of the side chest truss pads in the
alternative holes (B) and
• retighten the screws (C).
(4) To adjust the width:
• Loosen the set screws on both sides (A),
• place the side chest truss pads (B) in the desired
distance and
• retighten the set screws (A).
(4) To adjust the depth:
• Loosen the set screws on both sides (C),
• place the side chest truss pads (B) in the desired
position and
• retighten all set screws/clamp levers (C).
