2.12 ASSEMBLY GROUP THERAPY
TABLE
The therapy table is attached to the centre column ex works
(standard assembly). However, it can be varied in height
and also attached to the chest truss pad holder..

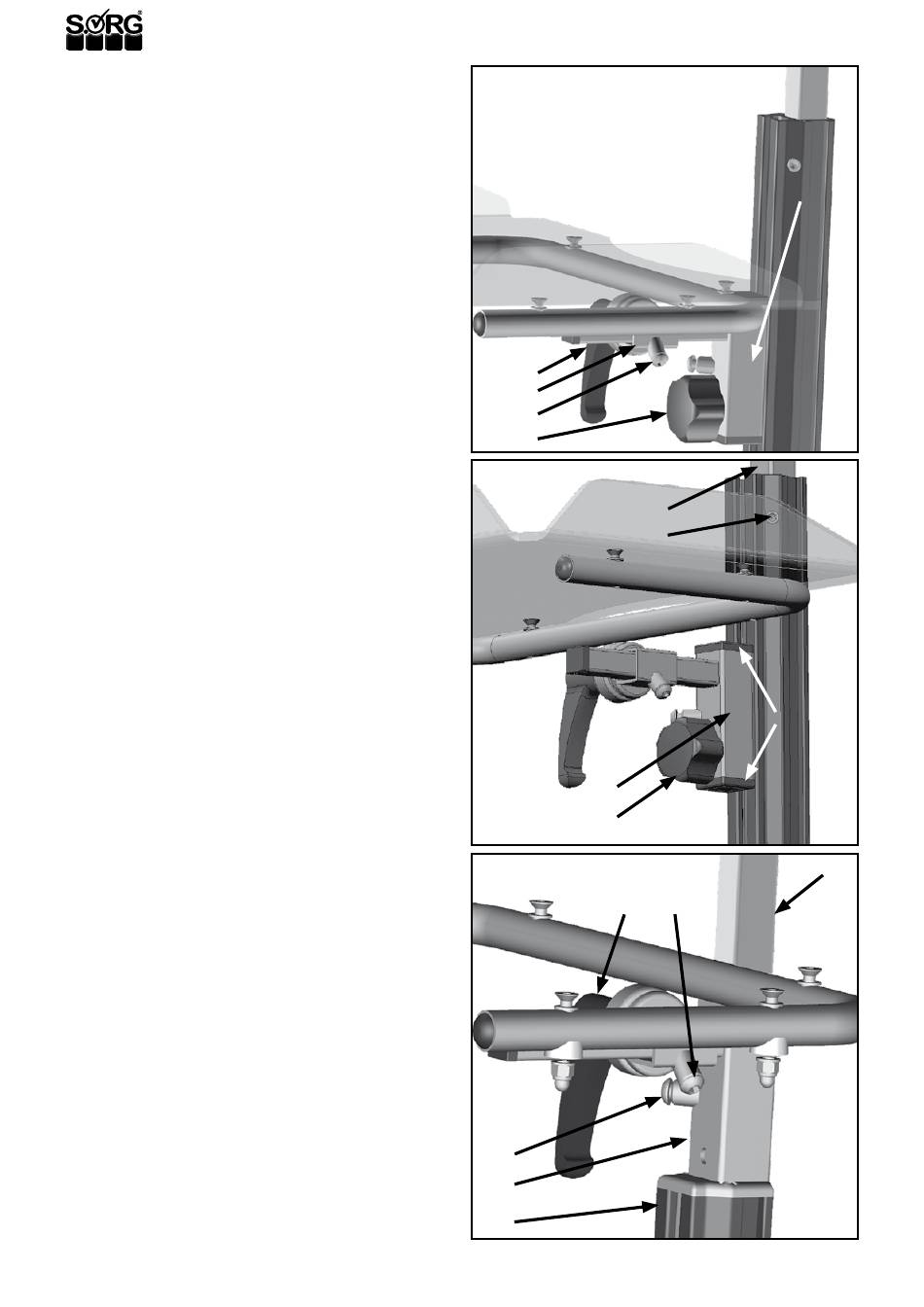

2.12.1 Standard mounting

(1) To adjust the height:
• Loosen the star screw (A),
• move the therapy table on the holder (B)
• and retighten the star screw (A).
(1) To adjust the distance:
• Loosent the set screws (C),
• place the therapy table on the holder (D) in the
desired position and
• retighten the set screws (A).
(1) To adjust the tilt angle:
• Loosen the clamp lever (E),
• place the therapy table in the wanted tilt and
• retighten the clamp lever (E).

2.12.2 Mounting on the chest truss pad holder

To convert to the fixture on the chest truss pad holder
(high mounting):
• (2) Remove the star screw (A) incl. the nut and the
caps (B).
• Loosen the set screw (C) and pull the holder (D) of
the chest truss pad out.
• (3) Place the holder (E) of the therapy table on the
holder (F) of the chest truss pad and
• replace the chest truss pad (F) in the centre
column (G).
• At the suitable height, retighten the setscrew (H).
(3) To adjust the height:
• Loosen the set screw (H),
• move the therapy table on the holder (B) and
• retighten the set screw (H).
(3) To adjust the distance:
• Loosen the set screw (I),
• place the therapy table in the wanted distance and
• retighten the set screw (I).
(3) To adjust the tilt angle:
• Loosen the clamp lever (J),
• place the therapy table in the wanted tilt
• retighten the clamp lever (J).
20
(1)
(E)
(D)
(C)
(A)
(2)
(D)
(C)
(E)
(A)
(3)
(J)
(H)
(E)
(G)
(B)
(B)
(F)
(I)
