2.13 ASSEMBLY GROUP FRAME

2.13.1 Frame size 1 and 2 (gas pressure spring
or telescope)

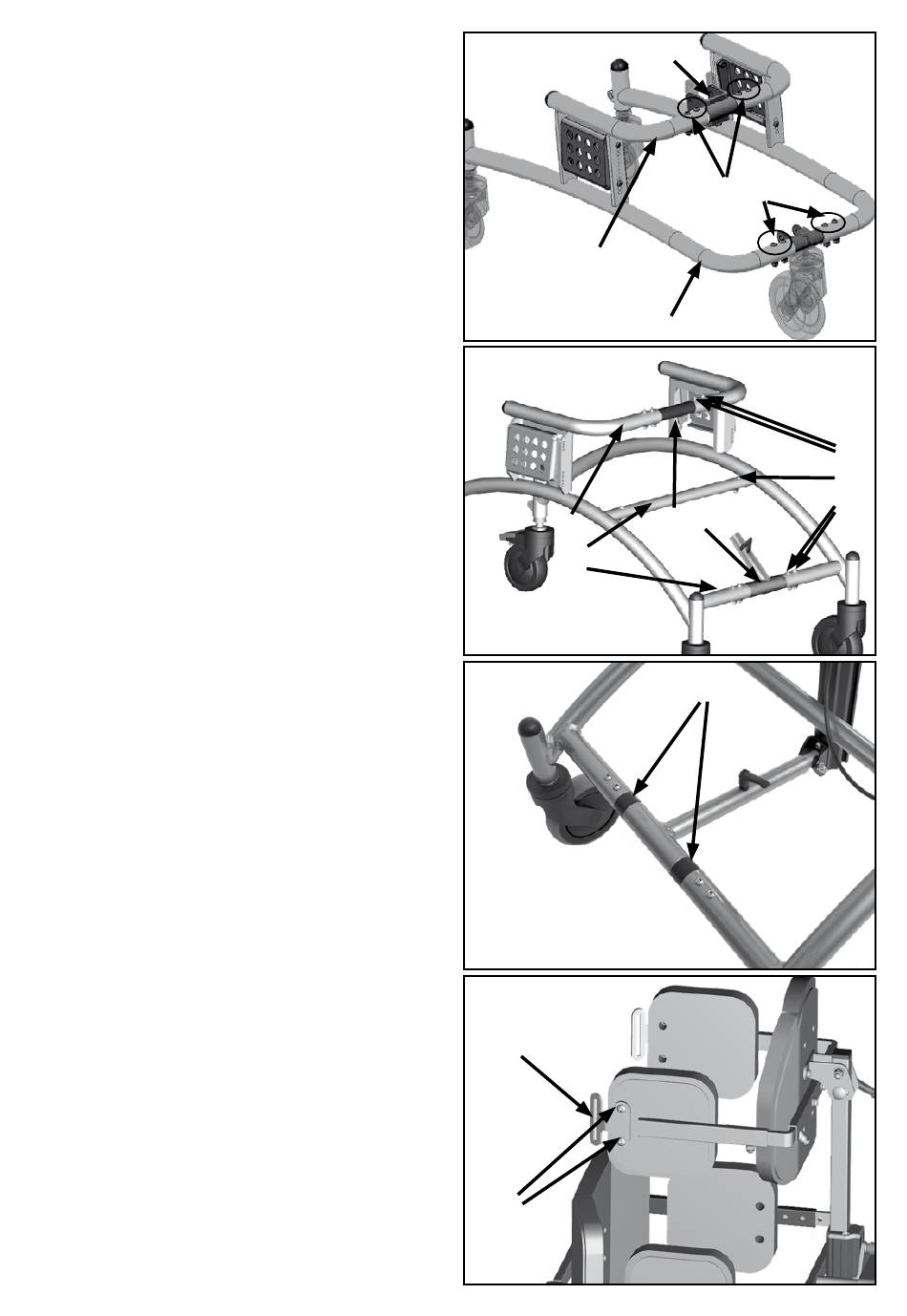

(1) To widen the frame by 4 cm
• we recommend to remove the centre column.
• Remove the driving wheels.
• Remove at first only on one side the screws (A) on
the frame crossbar (B).
• Remove on the same side the screws (C) on the
frame crossbar (D).
• Pull the frame completely apart.
• Place the included bushing between the crossbar
(B) and the middle piece (E).
• Put the frame back together.
• Replace the screws (A+C) and
• retighten all the screws.
• Proceed the same on the opposite side.
2.13.2 Frame size 3 and 4 (gas pressure spring)
To widen the frame by 4 cm with tilting adjustment of the
centre column with gas pressure spring
• Please proceed as described in chapter 2.13.1.
2.13.3 Frame size 3 and 4 (telescope)
To widen the frame by 4 cm with tilting adjustment of the
centre column with telescope
(2) To widen the frame by 4 cm
• we recommend to remove the centre column.
• Remove the driving wheels.
• Remove at first only on one side the 5 screws
(A+B+C) on the frame crossbars (D+E+F).
• Pull the frame completely apart.
• Place the included bushing between the middle
pieces (G+H) and the cross bars (D+F) (see picture
3).
• Replace the 5 screws (A+B+C) in the new drilled
holes and
• retighten all screws.
• Proceed the same on the opposite side.

2.14 ASSEMBLY GROUP BELTS

(4) To later mount the belt holders on the chest and/or
pelvic truss pad:
• Secure the mobile standing device from rolling
away with the drum brake and the wheel locks of
the back casters.
• Open the zippers of the relevent cushions and
push the covers back so that the mounting part is
free,
• mount the holder (A) in the drilled holes (B),
• pull the covers back over the cushions
• and close the zippers.
(1)
(B)
(2)
(F)
(E)
(D)
(3)
(4)
(A)
(B)
Service Record
(E)
(A) (C)
(D)
(G) (H)
(A)
(C)
(B)
(A)
21
