Boogie Drive
2.3 ASSEMBLY GROUP STANDARD
FOOT PLATES

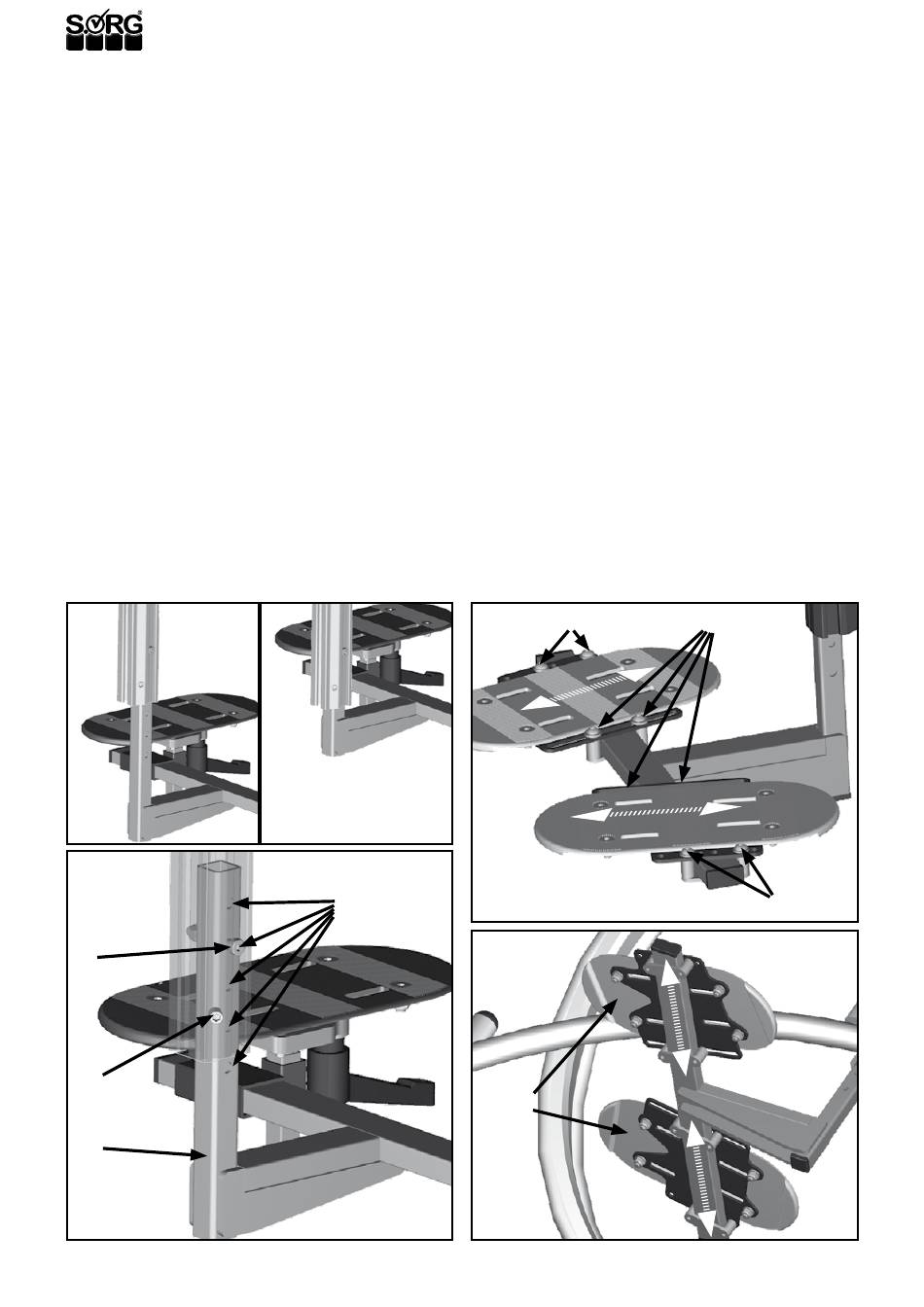

(1+2) With the position of the foot plate holder, the
distance between foot plates and the top of the hand rim
can be set (regarding the possible measurements see
chapter 2.1.1).
The foot plates can be shifted independently from one
another forward/backward, abducted in the distance to
the centre column and additionally can be turned inward or
outward on the foot plate holder independently.
For all adjustment work on the foot plates, remove the driving
wheels first and secure the mobile standing device with the
wheel locks of the back casters from rolling away.
2.3.1 Setting the height of the foot plate
holder
(3) To adjust the height of the foot plate holder (A):
• Loosen the set screw (B)
• and remove the screw (C).
• Move the foot plate holder (A) in the centre column
(D) along the drilled holes (E).
• Place the screw (C) back in and tighten it.
• Retighten the set screw (B).
• Replace the wheels.
(1)
(3)
(C)
(B)
(A)
12
(2)
(D)
(E)

2.3.2 Positioning the standard foot plates

(4) Zum Anpassen der Position nach vorne/hinten:
• Loosen the four screws (A).
• Remove the four screws (B) and move the foot
plates (C) forward or backward to the desired
measuremen.
• Replace the four screws (B) and retighten all eight
screws (A+B).

2.3.3 Abducting the standard foot plates

(4) To abduct:
• Loosen the screws (A+B).
• (5) Move the foot plates (C) to the desired position,
• retighten all screws.
2.3.4 Turning the standard foot plates
horizontally
(4) To turn:
• Loosen all eight screws (A+B) and turn the foot
plates (C) to the desired position.
• Retighten all eight screws (A+B).
(4) (B)
(C)
(C)
(5)
(C)
(A)
(B)
