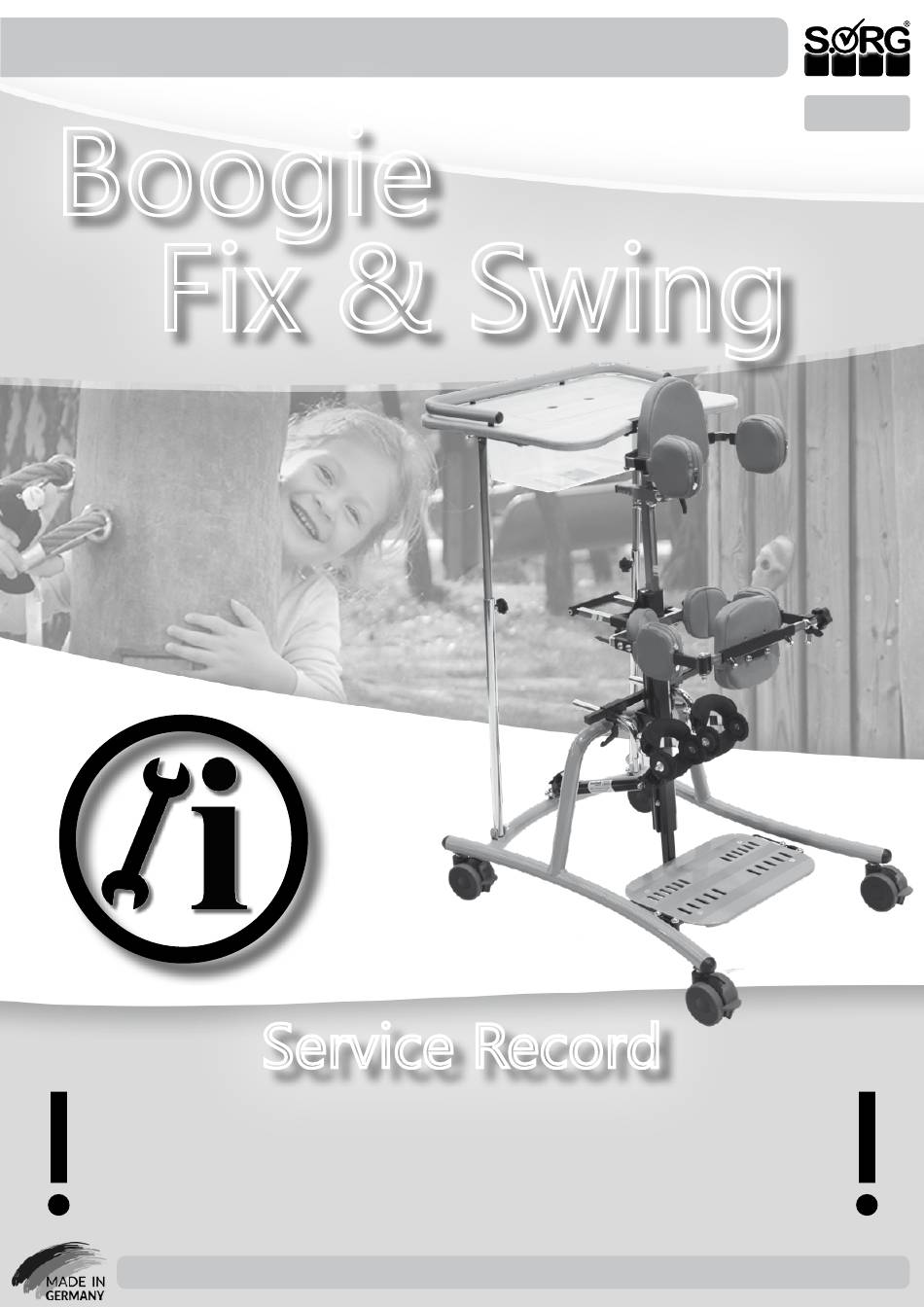

Service Record Boogie Fix and Swing
Boogie
ENG
Fix & Swing
Service Record
In the following all individual adjustments of the standing aid are
described. These adjustments require tools and specialised
knowledge. Please leave the adjustments to a qualified rehab
consultant.
Service Record Boogie Fix and Swing
2019-08-12
Unique people, unique solutions.
1 of 28

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Boogie Fix & Boogie Swing Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SORG Boogie Fix & Boogie Swing Series

Summary of Contents for SORG Boogie Fix & Boogie Swing Series

  • Page 1 Service Record Boogie Fix and Swing Boogie Fix & Swing Service Record In the following all individual adjustments of the standing aid are described. These adjustments require tools and specialised knowledge. Please leave the adjustments to a qualified rehab consultant. Service Record Boogie Fix and Swing 2019-08-12 Unique people, unique solutions.
  • Page 2 All texts, pictures and graphics underlie co- pyright protection. All rights, including co- pying, publishing, editing and translating, remain reserved. © by SORG Rollstuhltech- nik GmbH+Co. KG Benzstraße 3-5, 68794 Oberhausen-Rhein hausen / Germany. Our terms and conditions can be found on our order forms and at www.sorgrollstuhl-...

  • Page 3: Table Of Contents

    Table of content 1 Standing aid overview 4 Repairs and maintenance 4.1 Repairs 2 General information 4.2 Spare parts 2.1 General indications 4.3 Maintenance 2.2 Documentation indications 4.4 Disinfection 2.3 Required torques and tools 4.5 Storage 2.4 Explanation of symbols 4.6 Reinstatement 2.5 General safety instructions 4.7 Disposal...

  • Page 4: Standing Aid Overview

    1 Standing aid overview Overview Boogie Swing 1 chest truss pad 2 back truss pad 3 side chest truss pad 4 spine truss pad 5 side posterior truss pad 6 posterior truss pad 7 knee truss pad 8 centre column 9 frame „Swing“...

  • Page 5: General Information

    2 General information 2.1 General indications In the following all individual settings, adjustments and repairs as well as the yearly inspection of the standing aid are described. These adjustments require tools and specialised knowledge. Please leave the adjustments to a qualified rehab consultant. Should questions or suggestions come up then please contact your medical supply store or our team (+49 7254 9279-0).

  • Page 6: Explanation Of Symbols

    2 General information 2.4 Explanation of symbols ATTENTION! Warnings for perso- important detail nal Safety aspects that are of the utmost importance. correct or proper use/setting CORRECT safety adjustment/ use WRONG adjustment/ use incorrect or improper use/setting NOT ALLOWED ( A ) ; ( B ) reference from text to detail References to additional/conti- nuing reading.

  • Page 7: General Safety Instructions

    2 General information 2.5 General safety instructions Check before every use: • the firm seat of all pads, • Frames, attachments and accessories for visible damage, bends, cracks or missing / loose screws, • Wheels / thru axles on firm seat, •...

  • Page 8: Assembly Groups

    3.1 Assembly Group Centre column 3.1.1 Height adjustment In the frame version "Fix" and in the frame version swing size 1, the center column can be adjusted in height. For taller people, use the lower mounting holes, and for small people, the upper mounting holes.

  • Page 9: Assembly Group Leg Support

    3.2 Assembly Group leg support For all adjustment work on the footplates, the user ist not allowed to stand in the standing aid. 3.2.1 Height adjustment In the frame version "Swing" the footplate can be adjusted in height: (1) Position the footplate(s) for easier entry and exit from the standing aid as close as pos- sible to the floor.

  • Page 10: Footplate With Angle Adjustment

    3.2 Assembly Group leg support 3.2.3 3D footplate with angle adjustment The 3D footplates can be separately adjusted, tilted and rotated three-dimensionally. (1) For 3D angle adjustment: • Release the clamp lever (A) and move the footplate to the desired inclination / position / turn.

  • Page 11: Assembly Group Foot Shells

    3.3 Assembly Group foot shells 3.3.1 Shift (1) To shift the foot shells: • Loosen both screw connections (A), • move the footrest forwards or back- wards to the desired position and • retighten the screw connections (A). 3.3.2 Move (1) For moving the foot shells: •...

  • Page 12: Assembly Group Knee Truss Pad

    3.4 Assembly Group Knee truss pad The pads can optionally be equipped with set screws or clamping levers. In the following chapters, the setting process is described based on the picture used. If your standing aid is equipped differently, please proceed accordingly. 3.4.1 Standard knee truss pad Before the first use of the standing aid, the knee truss pad must have been adjusted as far as possible to the individual measurements of the child / adolescent.

  • Page 13: Knee Truss Pads With Resting Brackets

    3.4 Assembly Group Knee trus pad (1) To adjust the depth: • Loosen the clamping levers (C) on both sides, • on both sides move the support (D) of the knee pad to the desired position • and retighten the clamping levers (C). (1) To adjust the distance: •...
  • Page 14 3.4 Assembly Group Knee truss pad (1) To adjust the height: • Release the clamping lever (A), • move the entire support of the knee truss pads (B) to the desired position • retighten the clamping lever (A). (2) To adjust the depth: •...

  • Page 15: Assembly Group Posterior Truss Pad

    3.5 Assembly Group Posterior truss pad 3.5.1 Posterior truss pad pluggable Before the first use of the standing aid, the posterior pelotte must have been adjusted as far as possible to the individual size of the child / adolescent. If the user stands in the standing aid, only fine adjustments may be made.

  • Page 16: Posterior Truss Pad With Swivel Bracket

    3.5 Assembly Group Posterior truss pad 3.5.2 Posterior truss pad with swivel bracket Before the first use of the standing aid, the posterior pad must have been adjusted as far as possible to the individual size of the child / adolescent. If the user stands in the standing aid, only fine adjustments may be made.

  • Page 17: Assembly Group Pelvis Truss Pad

    3.6 Assembly Group Pelvis truss pad Before using the standing aid for the first time, the pelvis truss pad must have been adjus- ted as far as possible to the individual level of the child / adolescent. If the user is in standing aid, only fine adjustments may be made.

  • Page 18: Assembly Group Pelvis Truss Pad

    3.7 Assembly Group Pelvis truss pad Before using the standing aid for the first time, the breast pelottes must be largely adjus- ted to the individual measurements of the user. If the user stands in the standing aid, only fine adjustments may be made.
  • Page 19 3.7 Assembly Group Pelvis truss pad (1) To adjust the depth: • Loosen the adjusting screws (C) on both sides, • put the side chest pads (B) in the desi- red position and • retighten all set screws / clamping le- vers (C).

  • Page 20: Assembly Group Belt

    3.8 Assembly Group Belt (1) For retrofitting of belt holders on the chest and / or pelvic support: • Secure the standing aid against rolling away. • Open the zips of the corresponding side cushions and push back the covers to expose the mounting point, •...

  • Page 21: Assembly Group Back Truss Pad

    3.9 Assembly Group back truss pad (1) To adjust the depth: • Loosen the screws (A), • slide the pad into the desired position • and tighten the screws (A) again. (1) To adjust the width: • Loosen the screws (B), •...

  • Page 22: Assembly Group Theraphy Table

    3.10 Assembly Group Theraphy table (1) To adjust the height • Loosen the adjusting screw (A), • move the therapy table to the holder • and tighten the set screw (A) again. (2) For frame variant "swing": • In addition, please loosen the star knobs (A) on the telescopic rod of the therapy table •...

  • Page 23: Repairs And Maintenance

    4 Repairs and maintenance 4.1 Repairs Repairs are to be done by your specialized retailer. 4.2 Spare parts Only original spare parts can be used! They are available at your medical supply store. The spare parts list can be downloaded at www.sorgrollstuhltechnik.de or can be reques- ted directly from us.

  • Page 24: Reinstatement

    4 Repairs and maintenance 4.6 Reinstatement Before reuse, a full inspection according the the checklist must be carried out by a specialized retailer. All disinfection measures for reuse must be carried out according to a validated hygie- ne plan. 4.7 Disposal The standing aid may only be disposed of with the approval of the payee.
  • Page 25 4 Repairs and maintenance Checklist yearly inspection (specialized retailer) Template (available for download at www.sorgrollstuhltechnik.de/downloadportal) Preparatory Work cleaning done Check: Frame, back, mounted parts and accessories checked for damage, bends, cracks and corrosion, all fixing screws checked for firm fit and completeness, casters and rear wheels as well as the associated attachments checked for good condition, functionality and proper running qualities, spokes checked for firm fit and completeness,...

  • Page 26: Technical Specifications

    5 Technical specifications 5.1 Data and measurements Model: Boogie Fix und Boogie Swing Type: 886/ 885 All measurements ± 5% Frame size Size 1 Size 2 Size 3 body height 80-110 cm 100-130 cm 120-150 cm length x width without 67 x 54 cm 73 x 58 cm 80 x 64 cm...

  • Page 27: Meaning Of Label

    5.2 Meaning of labels The meaning of the individual labes is explained in the texts at the respective place. If the type plate is damaged or gets lost, a new one can be ordered from SORG Rollstuhltechnik. Type plate (exemplary Boogie Swing):...
  • Page 28 Service Record Boogie Fix and Swing SORG Rollstuhltechnik GmbH + Co. KG Benzstraße 3-5 68794 Oberhausen-Rheinhausen Germany Fon +49 7254 9279-0 Fax +49 7254 9279-10 info@sorgrollstuhltechnik.de www.sorgrollstuhltechnik.de company stamp...
