2.2 ASSEMBLY GROUP CENTRE
COLUMN
The centre column can be set and adjusted in angle and
with frame size 1 it can also be adjusted in height.

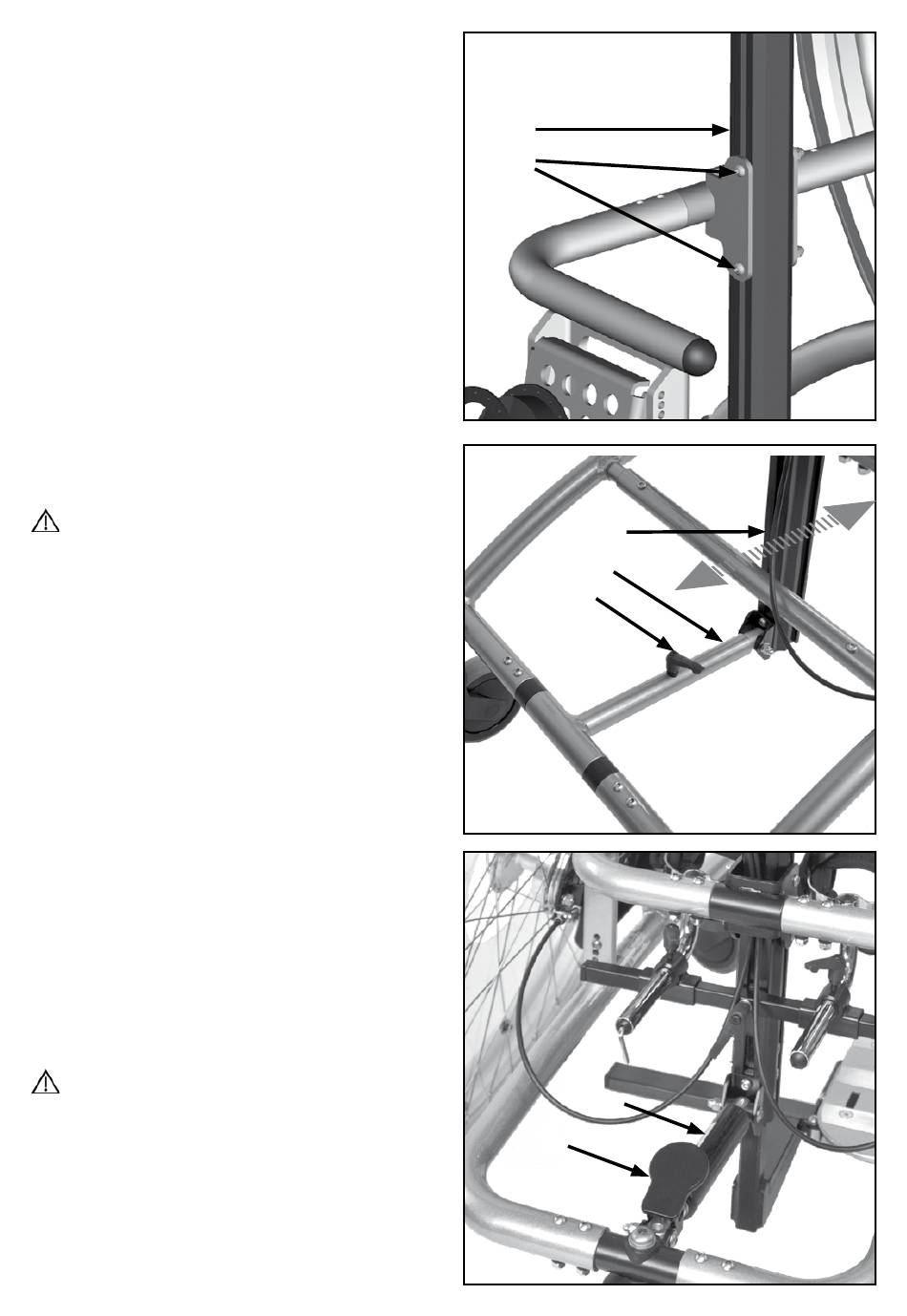

2.2.1 Height adjustment of the centre column
with frame size 1
Should it become necessary to move the centre column
down:
• (1) Secure the mobile standing device from rolling
away by operating the drum brakes and with the
wheel locks of the back casters.
• Remove the driving wheels and, for better hand-
ling, all truss pads.
• Remove both screws (A) and spacer bushings on
the centre column (B).
• Move the centre column (B) one drilled hole down.
• Replace the screws (A) and the spacer bushings
• and retighten them.
2.2.2 Setting the angle of the centre column
by telescope and clamp lever
ATTENTION
THE ANGLE SETTING OF THE CENTRE COLUMN WITH TE-
LESCOPE AND CLAMP LEVER CAN ONLY TAKE PLACE
WHEN NOBODY IS IN THE MOBILE STANDING DEVICE.
(2) To change the angle:
• Secure the mobile standing device from rolling
away by operating the drum brakes and with the
wheel locks of the back casters.
• Loosen the clamp lever (A) of the telescope (B),
• place the centre column (C) in the desired position,
• close the clamp lever (A) tightly.

2.2.3 Angle adjustment of the centre column

by gas pressure spring

For frequent angle adjustment of the the centre column
(e.g. for alternating load) it is recommended to adjust the
angle with a gas pressure spring.
(3) To change the angle:
• Secure the mobile standing device from rolling
away by operating all wheel locks (see above).
• Carefully operate the foot lever (A) of the gas pres-
sure spring (B) and place the centre column in the
desired tilt.
• Secure the user (with/without the help of a carer)
with both hands at the same time.
• Release the foot lever.
ATTENTION
THE ANGLE ADJUSTMENT OF THE CENTRE COLUMN CAN
ONLY TAKE PLACE WHEN THE MOBILE STANDING DEVICE
IS STILL AND WITH ACTIVATED WHEEL LOCKS (DRUM
BRAKES AND BACK CASTERS).
