2.7 ASSEMBLY GROUP PELVIC TRUSS
PADS
INFORMATION
The truss pads can be equipped with either set screws or
clamp levers.
In the following chapters the setting process will be
described according to the respective picture. Should
your mobile standing device be equipped differently then
please proceed correspondingly.

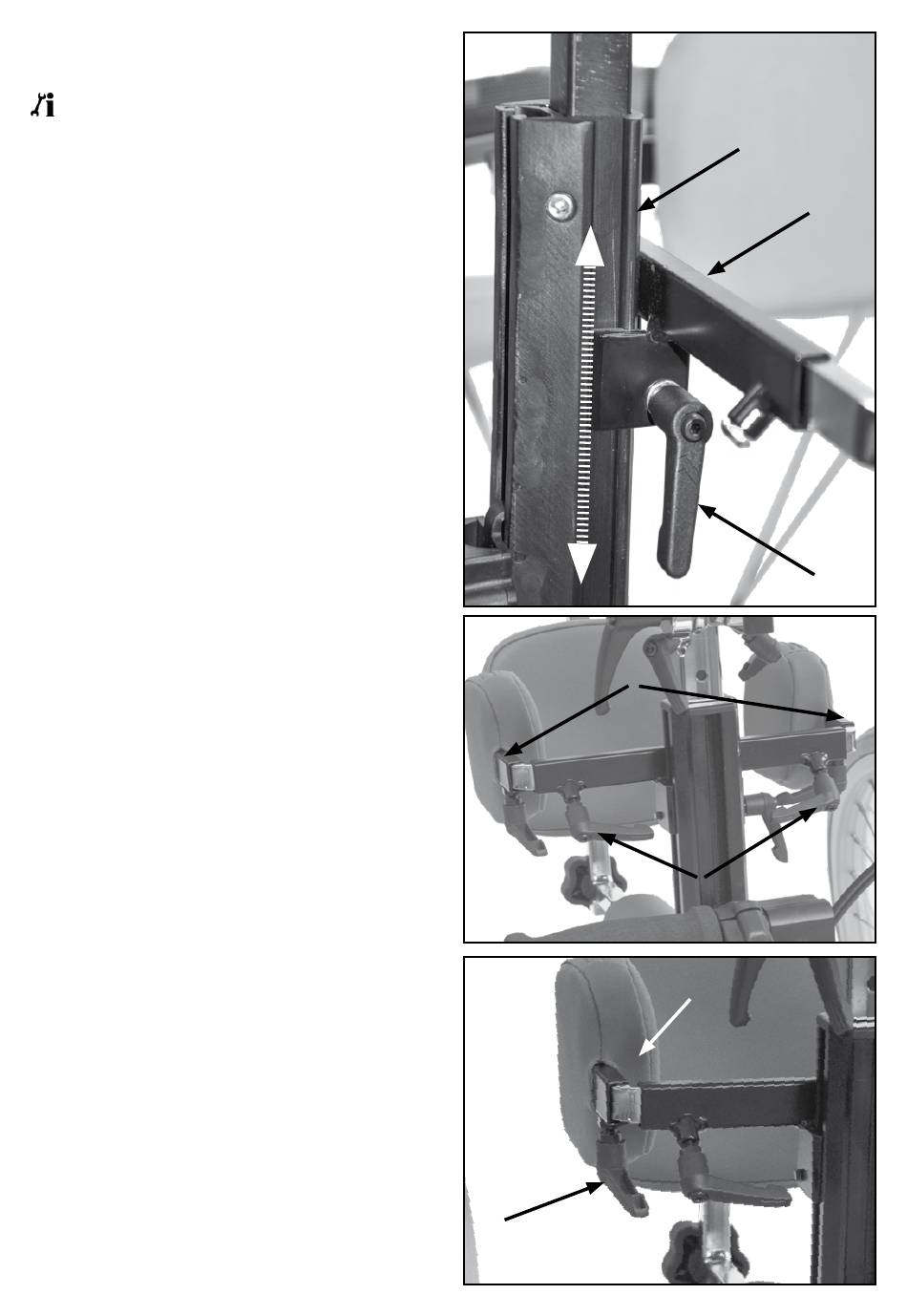

2.7.1 Adjusting the height

(1) To adjust the height:
• Open the clamp lever (A),
• Move the holder (B) along the centre column (C) to
the desired spot
• and retigthen the clamp lever (A).

2.7.2 Adjusting the width

(2) To adjust the width:
• Open both clamp levers (A),
• telescope both bails (B) to the desired measure-
ments
• and retighten the clamp levers (A).

2.7.3 Adjusting the depth

(3) To adjust the depth
• Open the clamp levers (A) on both sides,
• move both truss pads (B) to the desired position
• and retighten both clamp levers (A).
(1)
(2)
(B)
(3)
(A)
Service Record
(C)
(B)
(A)
(A)
(B)
