2.1.3 Sprung back casters

If the mobile standing device is used in an area without
thresholds, it is recommended to set the wheels so that
each wheel has contact with the ground.
If you need to overcome doorways or the like more
frequently, it is recommended to set the back casters so
that the front casters are not touching the ground. These
adjustments are made by the height adjustment of the
back casters

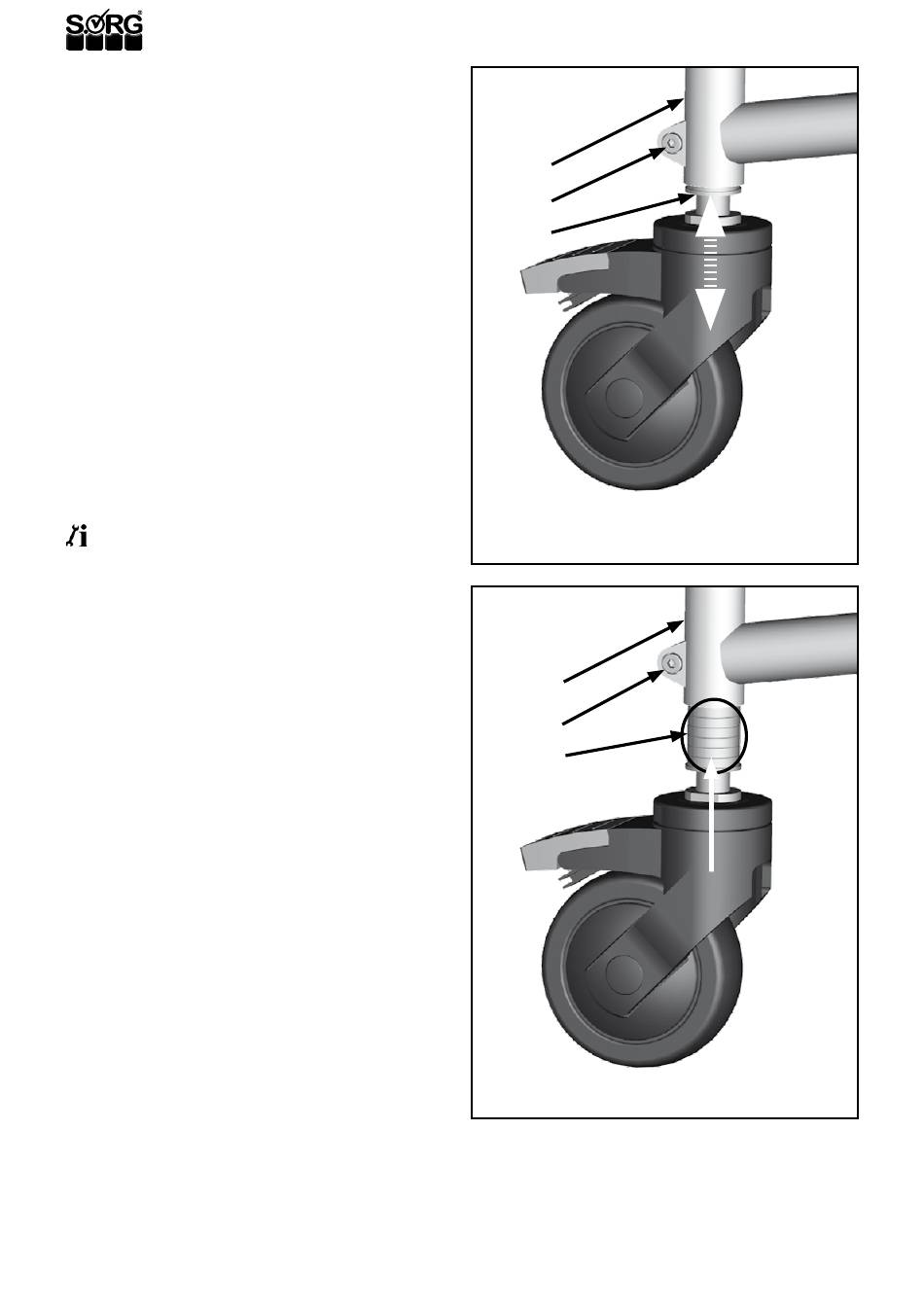

(1+2) The height of the back casters is set as follows:
• Place the mobile standing device on an even
surface and secure it from rolling away by locking
the drum brake.
• Loosen, on both sides, the screw (A) of the clamp (B)
on the back caster wheels,
• pull the steering gear case (C) as far out of the clamp
(B) or push it in as far until the desired height is
reached.
• First tighten the screw (A) on one side.
• Adjust the steering gear case on the other side
according to this adjustment.
• Proceed as just described
• and also retighten the screws (A) there.
INFORMATION
On the steering gear case (C) there are grooves (D)
at a distance of 5 mm with which you can control the
evenness on both sides.
10
(1)
(B)
(A)
(C)
Steering gear case mounted short.
(2)
(B)
(A)
(C)
Steering gear case mounted long.
(D)
