2.10 ASSEMBLY GROUP STANDARD
KNEE TRUSS PADS
ATTENTION
THE KNEE TRUSS PADS MUST HAVE BEEN SET TO
THE INDIVIDUAL MEASUREMENTS OF THE CHILD/
ADOLESCENT AS EXACT AS POSSIBLE BEFORE THE FIRST
USE OF THE MOBILE STANDING DEVICE. WHEN THE USER
IS STANDING IN THE MOBILE STANDING DEVICE, ONLY
FINE ADJUSTMENTS ARE THEN ALLOWED TO BE MADE.
INFORMATION
We recommend BEFORE the first use, to set the width of
the knee truss pads to the measurements of the user. For
this, please remove the knee truss pads.

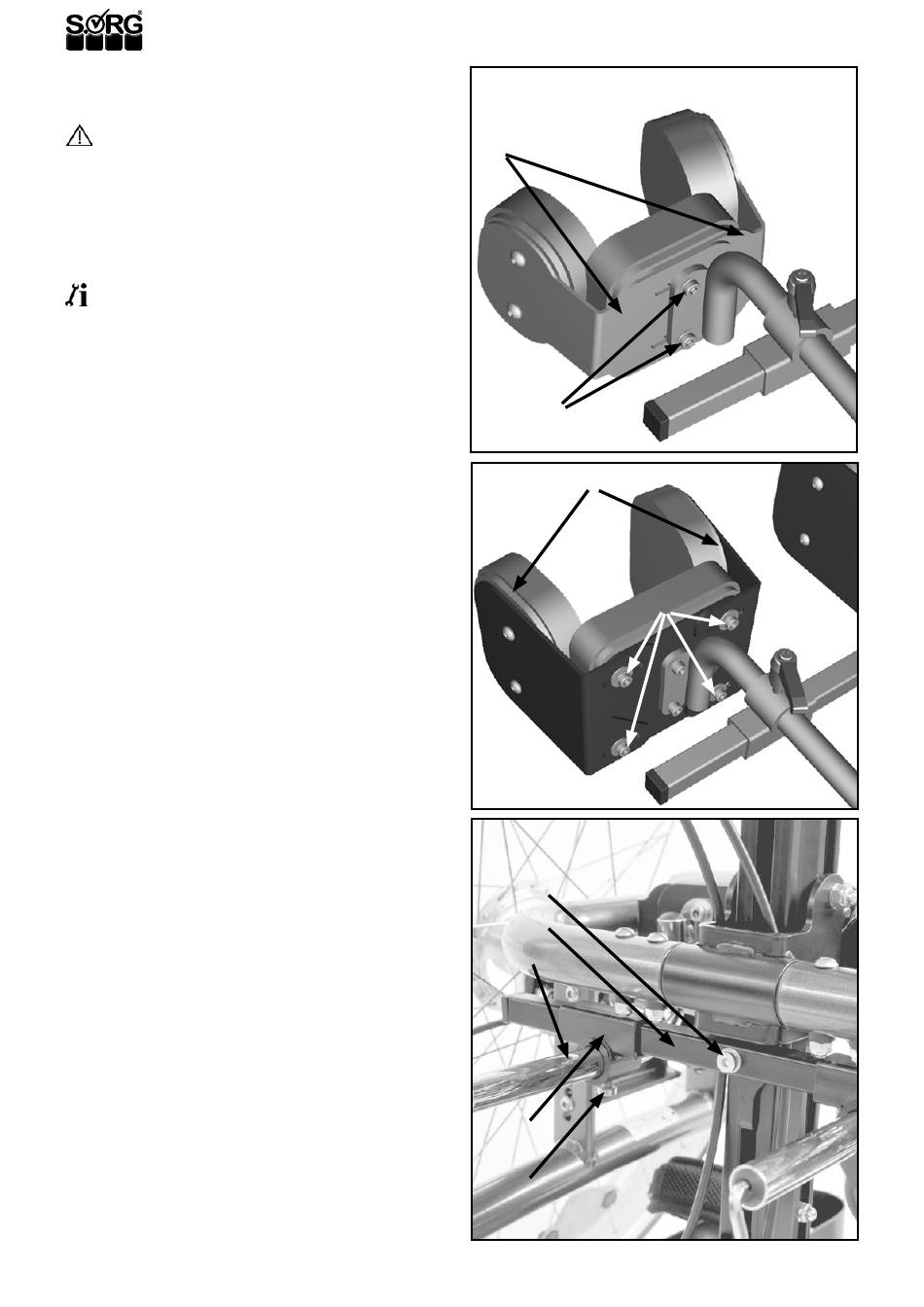

2.10.1 Adjusting the truss pad width size 1

(1) To adjust the knee truss pad:
• Loosen both screws (A),
• telescope both holders (B) along the elongated
hole to the desired measurement
• and retighten both screws (A).
2.10.2 Adjusting the truss pad width size 2
(2) To adjust the knee truss pad:
• Loosen all four screws (A),
• telescope both holders (B) to the desired
measusrements
• and retighten all screws (A).

2.10.3 Adjusting the height

(3) To adjust the height:
• Loosen the screw (A),
• displace the holder (B) to the desired height and
• retighten the screws (A).
(3) And/or:
• Loosen the screws (D) on both sides,
• turn the holders (C) 180° and
• retighten the screws (D).
(3) And/or:
• Loosen the screws (D) on both sides,
• remove the holder (C),
• turn the holder (C) vertical 180°,
• place it back on the holder (B) and
• retighten the screws (D).

2.10.4 Adjusting the depth

(3) To adjust the depth:
• Loosen the screws (D) on both sides,
• move the pillars (C) of the knee truss pads, on both
sides, to the desired position
• and retighten the screws (D).

2.10.5 Adjusting the distance

(3) To adjust the depth:
• Loosen the screws (D) on both sides,
• move the holders (E) of the knee truss pads, on
both sides, to the desired position
• and retighten the screws (D).
18
(1)
(B)
(A)
(2) (B)
(3)
(A)
(B)
(C)
(E)
(D)
(A)
