2.11 ASSEMBLY GROUP KNEE TRUSS

PADS WITH RESTING BRACKETS

ATTENTION
THE KNEE TRUSS PAD MUST HAVE BEEN SET TO
THE INDIVIDUAL MEASUREMENTS OF THE CHILD/
ADOLESCENT AS EXACT AS POSSIBLE BEFORE THE FIRST
USE OF THE MOBILE STANDING DEVICE. WHEN THE USER
IS STANDING IN THE MOBILE STANDING DEVICE, ONLY
FINE ADJUSTMENTS ARE THEN ALLOWED TO BE MADE.
INFORMATION
We recommend BEFORE the first use, to set the width
and the shear angle of the resting brackets to the mea-
surements of the user. For this, please remove the knee
truss pads

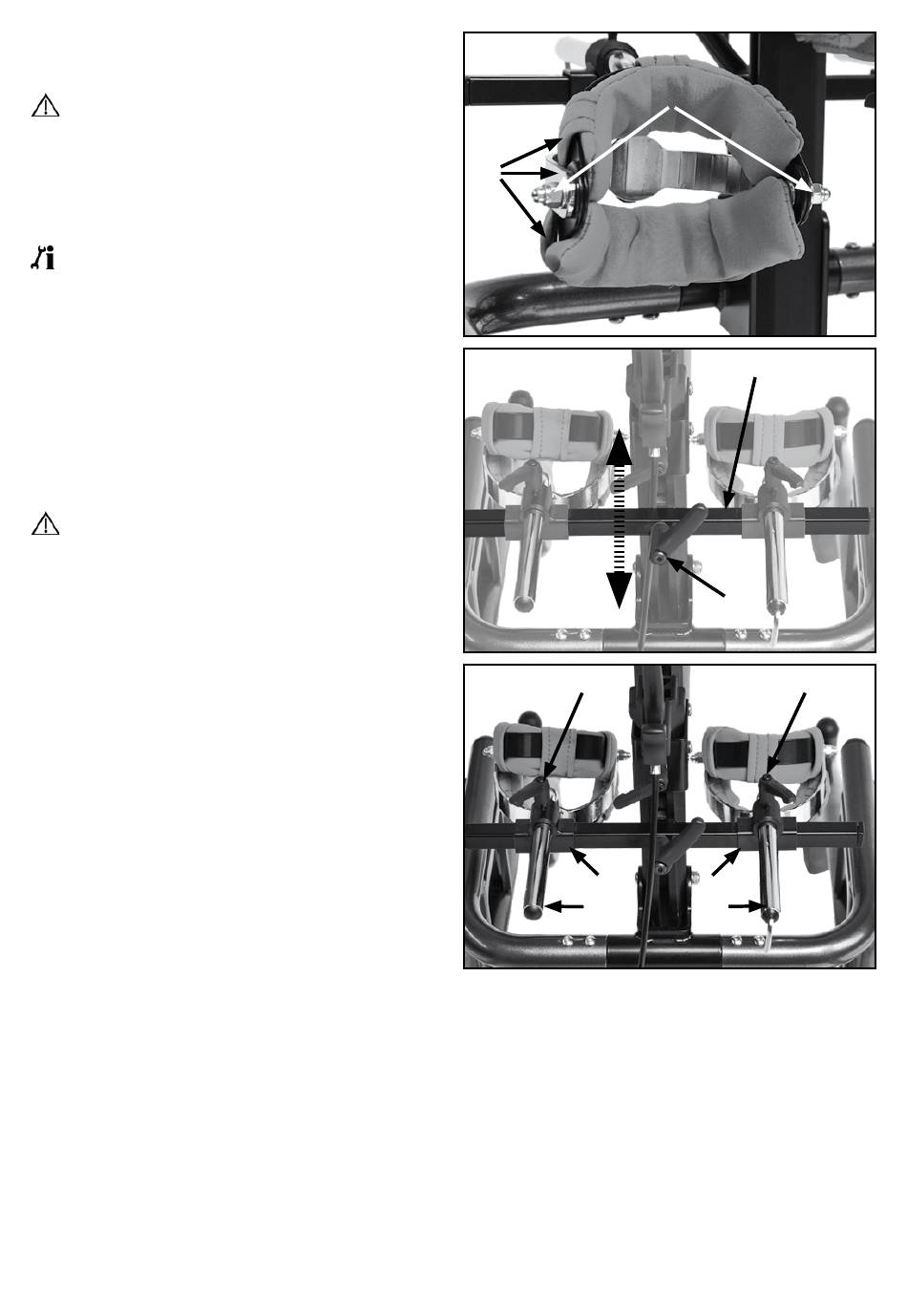

2.11.1 Adjusting the truss pad width

(1) The brackets (A) of the knee truss pads can be bent.
• Press the brackets (A) on both nuts (B) apart or
togther to the desired measurement.
• After, test the fitting of the knee truss pads on the
user.
ATTENTION INJURY RISK
ONLY PRESS THE BRACKETS TOGETHER WHEN THE TRUSS
PAD IS „EMPTY". VICE VERSA, YOU CANNOT FORCE THE
KNEE OF THE USER IN A TOO TIGHT TRUSS PAD IN ORDER
TO WIDEN IT.

2.11.2 Adjusting the shear angle

(1) To change the shear angle:
• Loosen both nuts (B) of the truss pad on the inner
and outer side,
• place the brackers (A) in the desired angle
• and retighten all nuts (B).
• Test the fitting of the knee truss pads on the user.
• After, mount the knee truss pads back on to the
Boogie.

2.11.3 Adjusting the height

(2) To adjust the height:
• Loosen the clamp lever (A),
• displace the whole pillar of the knee truss pads (B)
to the desired position and
• retighten the clamp lever (A).

2.11.4 Adjusting the depth

(3) To adjust the depth:
• Loosen the clamp lever (A),
• displace the whole pillar of the knee truss pads (B)
to the desired position and
• retighten the clamp lever (A).

2.11.5 Adjusting the distance

(4) To adjust the distance:
• Loosen the clamp lever (A),
• displace the holder (C) of the knee truss pads in
the desired position and
• retighten the clamp lever (A).
(1)
(A)
(2)
(A)
(3)
(C)
(B)
(4)
Service Record
(B)
(B)
(A)
(A)
(C)
(B)
19
