CPU 4.0X Clock Setting

Pentium II (klamath) – 266/66 MHz
SW1
Off Off Off Off
ON
On On
6 5 4 3 2 1
82371SB 82441FX
Pentium II (Klamath)-266

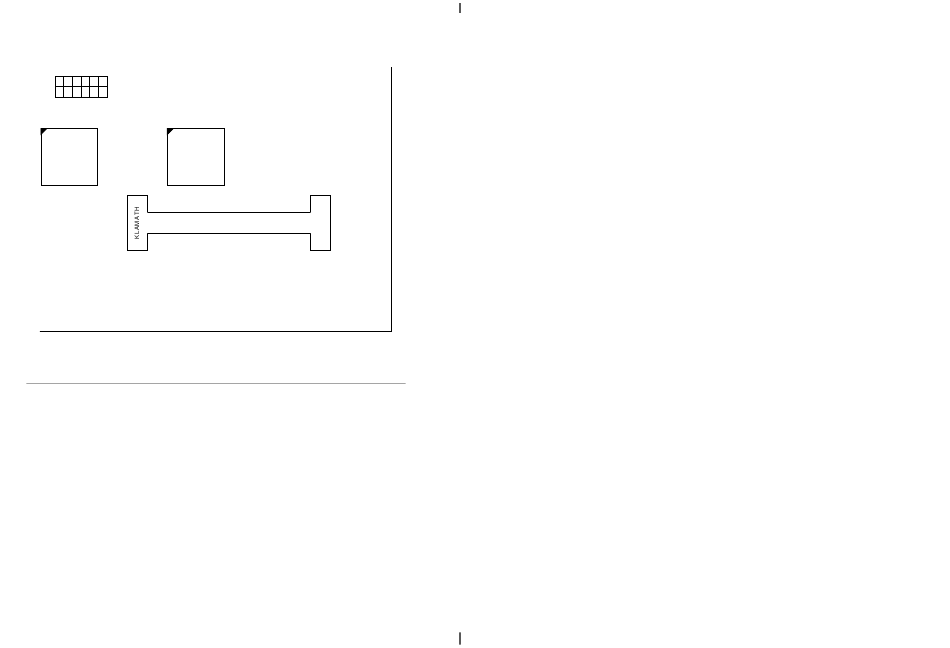

Figure 2Ð2. CPU Type Configuration

System Memory Configuration

This 82440FX motherboard supports 72-pin SIMMs and 168
pin DIMM of 4MB, 8MB, 16MB, or 32MB to form a memory
size between 8MB to 384MB. Each bank must have 2 pcs of
DRAM modules (w/i same size and type) installed.
82440FX chipsets provide ÒTable-FreeÓ function. It means
that users can install DRAM with any configuration and in
any bank, and that is why the DRAM table is not needed.
Hardware Installation 5
