caution during the removal process in order to minimize
damage.
Cover

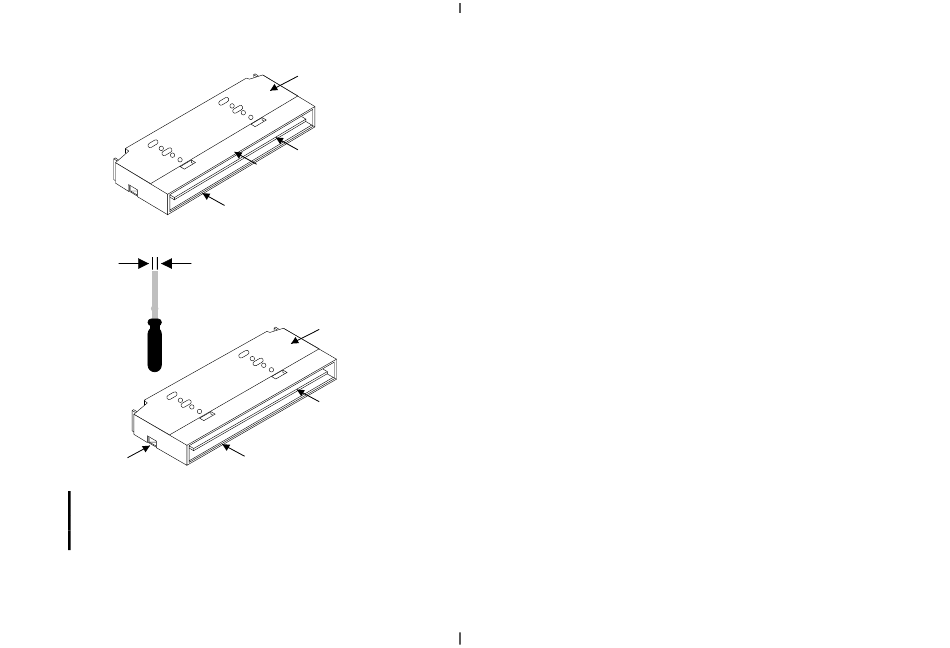

Figure 2Ð3. S.E.C. Cartridge
1/8 Small Flat
Blade Screwdriver
S.E.C. Cartridge
Cover
Latch
Figure 2Ð4. Suggested Tools
Note:
This procedure is not intended to allow re-assembly of the
S.E.C. Cartridge. Damage to the cover and thermal plate
are likely to occur.
Place the S.E.C. cartridge (and possible attached heat sink)
on an anti-static surface with the thermal plate/heat sink
facing up. It is not necessary to remove the heat sink, but
this would reduce the weight of the thermal plate/heat sink
Themal Plate
Processor Card
Skirt
Themal Plate
Processor Card
Hardware Installation 11
