assembly and improve the handling of the S.E.C. cartridge
assembly.
Themal Plate
Barbed posts which are
inside the S.E.C. cartridge
and are not visible, hold the
cover to the thermal plate.
They will release when
enough force is applied.

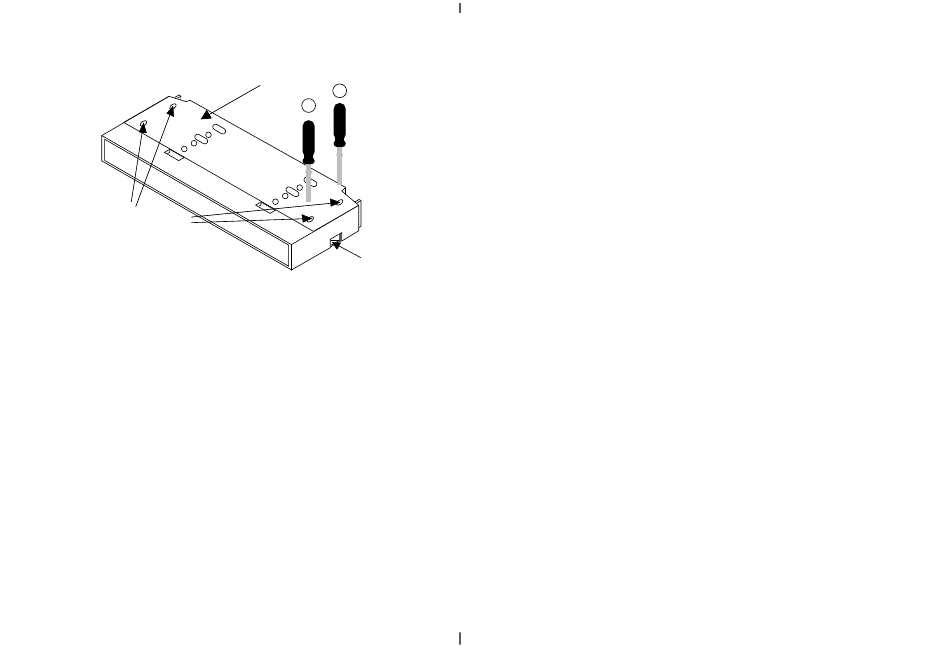

1. Place screwdriver between latch and thermal plate.
Twist crewdriver until the thermal plate pops up away
from the cover. The cover might crush under the force.
2. Slide the screwdriver down near the indent on the
thermal plate and tist until the bottom of the plate pops
up. Repeat on other end of the S.E.C. cartridge.

Thermal Plate Removal

Tool

Fine-tip round nose pliers (e.g., Sandvik part # 7590)

Procedure

1. Turn processor card over, so that the thermal plate is on
the bottom.
2. Insert tips of round-nose pliers between tabs and locator
pin as illustrated in Fig. 2.
12
2
1
Latch
