Notice to End Users
This UserÕs Guide & Technical Reference is for assisting system
manufacturers and end users in setting up and installing the
mainboard.
Every effort has been made to ensure that the information in this
manual is accurate. Soltek Computer Inc. is not responsible for
printing or clerical errors. Information in this document is subject to
change without notice and does not represent a commitment on the
part of Soltek Computer Inc.
No part of this manual may be reproduced, transmitted, translated
into any language in any form or by any means, electronic or
mechanical, including photocopying and recording, for any purpose
without the express written permission of Soltek Computer Inc.
Companies and products mentioned in this manual are for
identification purposes only. Product names appearing in this
manual may or may not be registered trademarks or copyrights of
their respective companies.
S
C
I
.
OLTEK
OMPUTER
NC
PROVIDES THIS MANUAL
WITHOUT WARRANTY OF ANY KIND
INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR
CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A
. I
PARTICULAR PURPOSE
N NO EVENT SHALL
I
.
NC
BE LIABLE FOR ANY LOSS OR PROFITS
,
OF USE OR DATA
INTERRUPTION OF BUSINESS
,
,
SPECIAL
INCIDENTAL
OR CONSEQUENTIAL DAMAGES OF ANY
,
S
C
KIND
EVEN IF
OLTEK
OMPUTER
POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR
ERROR IN THIS MANUAL OR PRODUCT
© Copyright 1998 Soltek Computer Inc. All right reserved
Web site: http://www.soltek.com.tw
email:
support@soltek.com.tw
Edition: December 1998
Version: 1.0
SL-67EZ SERIALS
Ò
Ó
AS IS
,
,
EITHER EXPRESS OR IMPLIED
S
C
OLTEK
OMPUTER
,
,
LOSS OF BUSINESS
LOSS
,
,
OR FOR INDIRECT
I
.
NC
HAS BEEN ADVISED OF THE
.
®
i
Advertisement
Table of Contents
Related Manuals for SOLTEK SL-67EZ
Summary of Contents for SOLTEK SL-67EZ
- Page 1 Every effort has been made to ensure that the information in this manual is accurate. Soltek Computer Inc. is not responsible for printing or clerical errors. Information in this document is subject to change without notice and does not represent a commitment on the part of Soltek Computer Inc.
-
Page 3: Table Of Contents
Contents Chapter 1: Introduction --------------------------------------- 1 Features ------------------------------------------------------------------------- 1 CPU ------------------------------------------------------------------------ 1 Chipset -------------------------------------------------------------------- 1 L2 Cache ------------------------------------------------------------------ 1 Main Memory ----------------------------------------------------------- 1 BIOS ------------------------------------------------------------------------ 2 Super I/O Function ---------------------------------------------------- 2 Other Functions --------------------------------------------------------- 2 Mainboard Layout with Default Settings ------------------------------ 3 Chapter 2: Hardware Setup ---------------------------------- 4 CPU Type Configuration --------------------------------------------------- 4 CPU 3.5X Clock Setting ----------------------------------------------- 4... - Page 4 Jumper Settings ------------------------------------------------------------- 10 JP2: Keyboard Power Selection ----------------------------------- 10 XFAN 1: Onboard FAN (12V) Connector ---------------------- 11 JBAT1: Clear CMOS Data ------------------------------------------ 11 JP6: Power Lost Resume-------------------------------------------- 11 JP3, JP4: USB Port Select-------------------------------------------- 12 JVGA1: VGA Card --------------------------------------------------- 12 SW1: 5Ð6 Bus Clock Select ----------------------------------------- 12 SW1: 1Ð4: Bus Ratio Select ----------------------------------------- 13 IDE LED Activity Light: (J2 pin1Ð4)------------------------------ 13...
-
Page 5: Chapter 1: Introduction
Chapter 1 Introduction Features 1. Supports Intel Pentium II, Deschutes, and Celeron CPUs using SLOT1 at 233 ~ 533 MHz (PII/Celeron) or 800MHz (Deschutes) 2. Supports CPU voltage autodetect circuit 3. Supports 66/100MHz Bus Clock with autodetect (BIOS provides 103/112 MHz Bus Clock without auto detect) Chipset 1. -
Page 6: Bios
BIOS 1. AWARD Plug and Play BIOS 2. Supports Advanced Power Management Function 3. Flash Memory for easy upgrade Super I/O Function 1. Integrated USB (Universal Serial Bus) controller with two USB ports. 2. Supports 2 IDE channels with 4IDE devices (including 120MB IDE floppy) 3. -

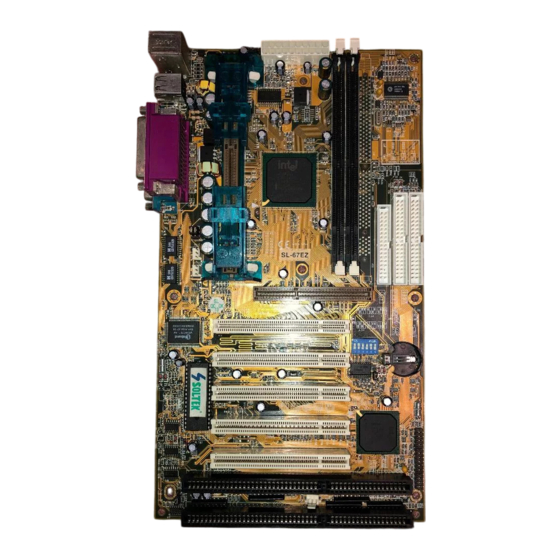

Page 7: Mainboard Layout With Default Settings
Mainboard Layout with Default Settings The default settings of the following figure is for the Pentium II (Celeron) 233/66MHz or Deschutes 350/100MHz Figure 1-1. Motherboard Layout Note: For 100MHz CPU environment, the SDRAM specification must comply with PC-100 spec. Introduction... -
Page 8: Chapter 2 Hardware Setup
Chapter 2 Hardware Setup CPU Type Configuration CPU 3.5X Clock Setting Deschutes ¡ Ð 3 50/100MHz Pentium II ¡ Ð 2 33/66MHz Figure 2-1 CPU Type Configuration... -
Page 9: Cpu 4.0X Clock Setting
CPU 4.0X Clock Setting Deschutes - 400/100MHz Pentium II -266/66 MHz Figure 2-2 CPU Type Configuration CPU 4.5X Clock Setting Deschutes - 450/100MHz Pentium II -300/66 MHz Figure 2-3 CPU Type Configuration CPU 5.0X Clock Setting Deschutes -500/100MHz Pentium II -333/66 MHz Figure 2-4 CPU Type Configuration Hardware Introduction... -
Page 10: System Memory Configuration
System Memory Configuration This 82440ZX motherboard supports 168 pin DIMM of 4MB, 8MB, 16MB, 32MB or 64MB to form a memory size between 8MB to 256MB(SDRAM). 82440ZX chipsets provide ÒTable- FreeÓ function. It means that users can install DRAM with any configuration and in any bank, and that is why the DRAM table is not needed but do remember that the DRAM must be 3.3V type. - Page 11 Step 2: Install the 2 pairs of screws, which are shown in the following drawing, onto the mainboard under the SLOT1 Socket. Two of the screws are right around the SLOT1 Socket and the other pair of screws should be inserted opposite the first pair.
- Page 12 The retention clip should be inserted so that the small rectangle window is more toward to the right hand side of the board. If installed incorrectly, you will not be able to insert the CPU into the retention clip and in this situation you might need to rotate the retention clip by 180°...
- Page 13 Latch Latch Side View of CPU Supporter Base Step 5: Flatten the two latches on the side of CPU. Insert the CPU into the retention clip and notice that the heat sink is on the right hand side of the board. Lock the two latches to secure the CPU.
-
Page 14: Jumper Settings
Step 6: Insert the clip portion of the CPU supporter so that the heat sink can sit on the top of the whole CPU supporter. Top View of CPU Support Clip Notice that the base and the clip of CPU Supporter may be different from the figures shown here. -
Page 15: Xfan 1: Onboard Fan (12V) Connector
XFAN 1: Onboard FAN (12V) Connector FAN# Function SFAN1 System FAN CFAN1 CPU FAN PFAN1 Chasis FAN JBAT1: Clear CMOS Data Clear the CMOS memory by shorting this jumper momentarily; then remove the cap to retain new settings. JBAT1 CMOS Data Clear Data Retain Data (default) -
Page 16: Jp3, Jp4: Usb Port Select
JP3, JP4: USB Port Select USB Port JP3/JP4 Redirect all USB ports to USB connector (default) Redirect USB1 to AGP port JVGA1: VGA Card JVGA1 For Special VGA Card* Normal (default) Note: This jumper is set for the special VGA card. Open this jumper when the systme isn’t able to boot SW1: 5–6 Bus Clock Select Bus Clock... -
Page 17: Sw1: 1Ð4: Bus Ratio Select
SW1: 1–4: Bus Ratio Select Bus Ratio SW: 1~4 Bus Ratio SW: 1~4 Bus Ratio SW: 1~4 3.0x 5.0x 7.0x 3.5x 5.5x 7.5x 4.0x 6.0x 8.0x 4.5x 6.5x IDE LED Activity Light: (J2 pin1–4) This connector connects to the hard disk activity indicator light on the case. -
Page 18: Infrared Port Module Connector (J2 Pin6Ð10)
Infrared Port Module Connector (J2 pin6–10) The system board provides a 5-pin infrared connectorÑIR1 as an optional module for wireless transmitting and receiving. Pin 6 through 10 are Transmit, GND, Receive (low speed), Receive (high speed), and Vcc, respectively. J2 pin12, 13: PWR Switch Power Switch: Toggle this pin for turnning on/off of the power supply (for ATX power only). -
Page 19: Jwol1: Wake On Lan (Wol) Connector
JWOL1: Wake On Lan (WOL) Connector This connector is designed to use Lan to bootup the system. Connect the wake on signal from Lan card to this connector. Green LED (J3 pin14, 15) Reserved. EXTSM1 HD/LED PWR/SW RESET KEYLOCK GRN-LED EXTSM1 HD/LED PWR/SW... -
Page 20: J2 Switch Signal Summary
J2 Switch Signal Summary Signal Description HDD LED Connector HDD LED Signal HDD LED Signal N.C. No Connection Infrared Transmit Signal Infrared Connector Infrared Receive Signal (low speed) Infrared Receive Signal (high speed) N.C. No Connection Power Switch (for ATX Power) SLEEP Sleep Signal... -
Page 21: J3 Switch Signal Summary
J3 Switch Signal Summary Signal Description Speaker Signal Speaker Connector No Connection Ground Reset Switch Reset Signal Ground N.C. No Connection Power LED Connector No Connection Ground Keylock Connector Keylock Signal N.C. No Connection Power Saving No Connection Connector No Connection Hardware Installation 17... -
Page 22: Chapter 3: Bios Setup
Chapter 3 Award BIOS Setup This 82440ZX motherboard comes with the AWARD BIOS from AWARD Software Inc. Enter the Award BIOS programÕs Main Menu as follows: 1. Turn on or reboot the system. After a series of diagnostic checks, the following message will appear: PRESS <DEL>... -
Page 23: Standard Cmos Setup
3. Using one of the arrows on your keyboard to select an option and press <Enter>. Modify the system parameters to reflect the options installed in the system. 4. You may return to the Main Menu anytime by press <ESC> . 5. - Page 24 A short description of screen options follows: Date (mm:dd:yy) Set the current date and time. Time (hh:mm:ss) This field records the specifications Primary (Secondary) for all non-SCSI hard disk drives Master/Slave installed in your system. Refer to the respective documentation on how to install the drivers.
-
Page 25: Bios Features Setup
BIOS Features Setup BIOS Features Setup allows you to improve your system performance or set up some system features according to your preference. Run the BIOS Features Setup as follows: 1. Choose ÒBIOS FEATURES SETUPÓ from the Main Menu and a screen with a list of options appears. ROM PCI/ISA BIOS BIOS FEATURES SETUP AWARD SOFTWARE, INC. - Page 26 A short description of screen options follows: Virus Warning Enabled: Activates automatically when the system boots up causing a warning message to appear if there is anything attempts to access the boot sector or hard disk partition table. Disabled: No warning message will appear when there is something attempts to access the boot sector or...
- Page 27 Boot Sequence Default is ÒA, C, SCSIÓ. This option determines which drive to look for first for an operating system. Swap Floppy Drive Choose Enabled or Disabled (default). This option swaps floppy drive assignments when it is enabled. Boot Up Floppy Enabled (default): During POST, Seek BIOS checks the track number of the...
- Page 28 Security Option Choose System or Setup (default). This option is to prevent unauthorized system boot-up or use of BIOS Setup. PCI/VGA palette Choose Enabled or Disabled Snoop (default). It determines whether the MPEG ISA cards can work with PCI/VGA or not. Assign IRQ for Choose Enabled (default) or Disabled.
-
Page 29: Chipset Features Setup
Chipset Features Setup Chipset Features Setup changes the values of the chipset registers. These registers control the system options. Run the Chipset Features Setup as follows: 1. Choose ÒCHIPSET FEATURES SETUPÓ from the Main Menu and a screen with a list of options appears. ROM PCI/ISA BIOS CHIPSET FEATURES SETUP AWARD SOFTWARE, INC. - Page 30 EDO CASX# MA Use the default setting. Wait State EDO RASX# Wait Use the default setting. State SDRAM CAS Use the default setting. Latency Time DRAM Data Choose Non-ECC (default) or ECC Integrity Mode depending on the DRAM type. ECC stands for Error Check and Correct.
- Page 31 8 Bit I/O Recovery This delay happens when the CPU Time is running so much faster than the I/O bus that the CPU must be 16 Bit I/O Recovery delayed to allow for the completion Time of the I/O. The choices for 8 bit I/O are NA, 1 to 8 CPU clock.
- Page 32 CPU Warning Choose Disabled (default), Temperature + 50¡C/122¡F, 53¡C/127¡F, 56¡C/133¡F, 60¡C/140¡F, 63¡C/145¡F, 66¡C/151¡F, 70¡C/150¡F. When CPU temperature is over the setting value, the speaker will sound an alarm and the clock will drop until the temperature is within optimum the temperature range. Current System + BIOS will displays SystemÕs temperature, fan speed, and voltage...
-
Page 33: Power Management Setup
Power Management Setup Power Management Setup sets the systemÕs power saving functions. 1. Choose ÒPOWER MANAGEMENT SETUPÓ from the Main Menu and a screen with a list of options appears. ROM PCI/ISA BIOS POWER MANAGEMENT SETUP AWARD SOFTWARE, INC. ** Reload Global Timer Events ** Power Management : User Define IRQ[3-7,9-15], NMI... - Page 34 Video Off Method Choose Blank , DPMS, or V/H Sync+Blank (default). You can chose either DPMS or V/H Sync+Blank when the monitor has the Green function. You need to choose Blank when the monitor has neither the Green function. Video Off After Choose NA, Suspend, Standby (default), or Doze.
- Page 35 VGA Active Enabled: the system can not enter the power saving mode Monitor when monitor is on. Disabled: the system can enter the power saving mode when monitor is on. Soft-Off by PWR- Instant-off: (default) turns off the BTTN system power at once after pushing the power button.
- Page 36 Wake On LAN Enabled: Wake up the system from LAN card (LAN card must support Wake Up On LAN function and the power supply must provide at least 5V/750mA standby current. Disabled: (default) Disabled Wake On LAN function. IRQ (#), NMI; Enabled: (default) The system can not enter the power Primary IDE 0...
-
Page 37: Pnp/Pci Configuration Setup
PnP/PCI Configuration Setup PnP/PCI Configuration Setup configures the PCI bus slots. Run the Chipset Features Setup as follows: 1. Choose ÒPnP/PCI CONFIGURATION SETUPÓ from the Main Menu and a screen with a list of options appears. ROM PCI/ISA BIOS PNP/PCI CONFIGURATION AWARD SOFTWARE, INC. - Page 38 A short description of screen options follows: PNP OS Installed Yes: OS supports Plug and Play function. No (default): OS doesnÕt support Plug and Play function. Note: BIOS will automaticaly disable all PnP resources except the boot device card when select Yes on Non-PnP Resources Choose Manual or Auto (default).
-
Page 39: Load Setup Defaults
Used MEM Choose 8K, 16K, 32K, or 64K. Length* With the above two functions, users can define where the used memory address is located and its corresponding length of the legacy area. BIOS will skip the UMB area which is used by the legacy device to avoid memory space conflict. -
Page 40: Integrated Peripherals
Integrated Peripherals Integrated Peripherals option changes the values of the chipset registers. These registers control system options in the computer. 1. Choose ÒINTEGRATED PERIPHERALSÓ from the Main Menu and a screen with a list of options appears. ROM PCI/ISA BIOS INTEGRATED PERIPHERALS AWARD SOFTWARE, INC. - Page 41 IDE Primary Choose Auto (default) or Mode 0~4. The BIOS will detect the HDD Mode Master/Slave PIO IDE Secondary type automatically when you Master/Slave PIO choose Auto. You need to set to a lower mode than Auto when your hard disk becomes unstable. On-Chip Primary/ Enabled: (default)Turn on the Secondary PCI IDE...
- Page 42 IR Transmition Enabled: Enabled delay when transfers data. Delay Disabled (default) Disabled delay when transfers data. Onboard Parallel Choose the printer I/O address: Port 378H/IRQ7 (default), 3BCH/IRQ7, 278H/IRQ5 Parallel Port Mode Choose SPP (default), ECP + EPP EPP, or ECP mode. The mode depends on your external device that connects to this port.
- Page 43 Power On Function Choose BUTTON ONLY (default), Password, Mouse Left, or Mouse Right. Mouse Left: Use the PS/2 Mouse Left to boot the system. Mouse Right: Use the PS/2 Mouse Right to boot the system. Password: Choose a special password which is defined by the user or use one of the HOT keys (from CTRL-F1 to CTRL- F12) to boot the system.
-
Page 44: Supervisor/User Password
Supervisor/User Password These two options allows you to set your system passwords. Normally, supervisor has a higher right to change the CMOS setup option than the user. The way to set up the passwords for both Supervisor and User are as follow: 1. -
Page 45: Ide Hdd Auto Detection
IDE HDD Auto Detection IDE HDD Auto Detection detects the parameters of an IDE hard disk drive and automatically enters them to the Standard CMOS Setup screen. The screen will ask you to select a specific hard disk for Primary Master after you select this option. If you accept a hard disk detected by the BIOS, you can enter ÒYÓ...
