Locator Pin
Retaining Clip
Tab
Side
Insert tips of round nose pliers
between tabs and locator pin
(A)

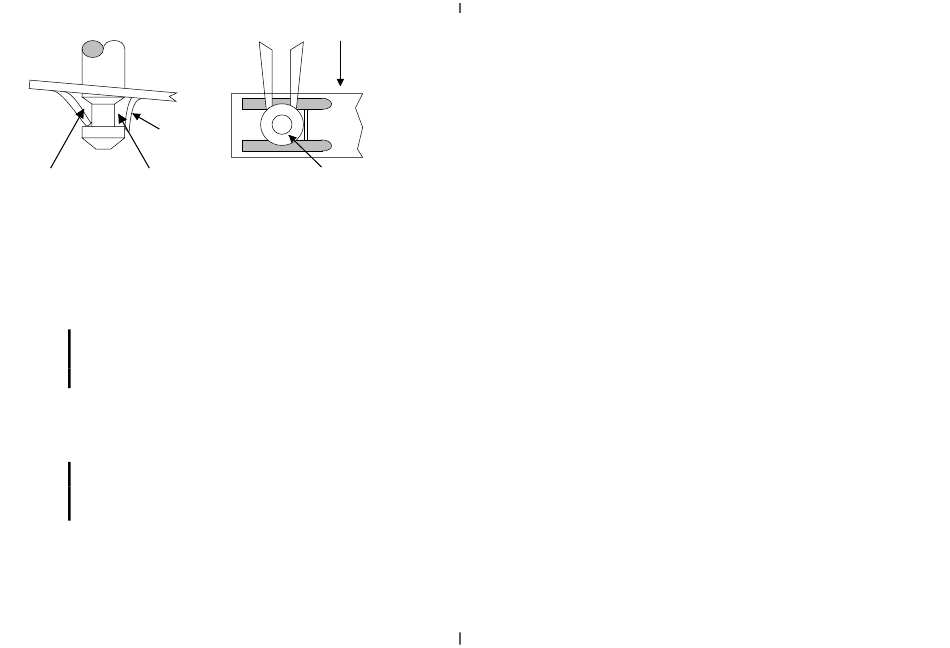

Figure 2Ð5. Round-nose pliers insertion points (a) side view (b) top view
3. Hold thermal plate firmly and push the round-nose
pliers toward the locator pin (in the direction of the
arrow in Fig. 2b). Push until the tabs bend away from
the locator pin.
Note:
When pushing pliers in, be sure not to angle the pliers so
that they damage the secondary side of the printed circuit
board (PCB). Pliers should be parallel to PCB.
4. Remove round-nose pliers. Spring clip should no longer
be attached to locator pin. If spring clip is still attached,
repeat steps 2 to 3 on same locator pin.
Note:
Remove spring clips carefully. The spring clip is under
compression and may spring back. Keep the edges of the
clips from damaging PCB.
5. Repeat steps 2 through 4 until both spring clips are no
longer attached.
Tips of round nose pliers
Locator Pin
TOP
(B)
Hardware Installation 13
