INTEL Pentium CPU Settings

CPU 1.5X Clock Setting (Red Caps)

Pentium – 75/90/100 MHz
Intel Pentium
JP11
JP12
1

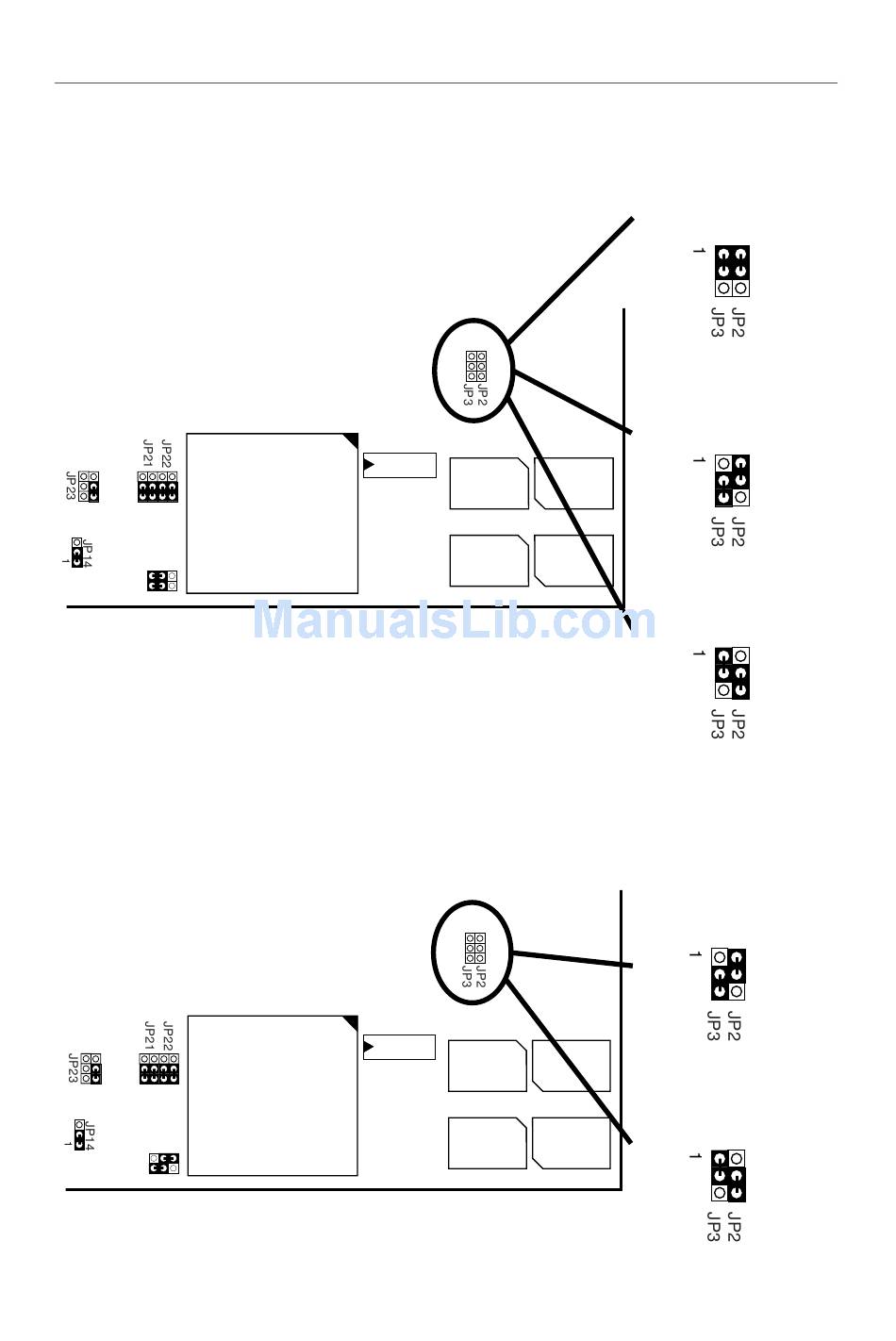

Figure 2Ð5. INTEL Pentium CPU Type Configuration

CPU 2.0X Clock Setting (Red Caps)

Intel Pentium – 120/133 MHz
Intel Pentium
JP11
JP12
1
Figure 2Ð6. INTEL Pentium CPU Type Configuration
12
TAG
CPU
TAG
CPU
1
PB
82438VX
SRAM
PB
82438VX
SRAM
1
PB
82438VX
SRAM
PB
82438VX
SRAM
Intel Pentium 75/50
Intel Pentium 90/60
Intel Pentium 100/66
Intel Pentium 120/60
Intel Pentium 133/66
