Configuration Options

Jumper Settings

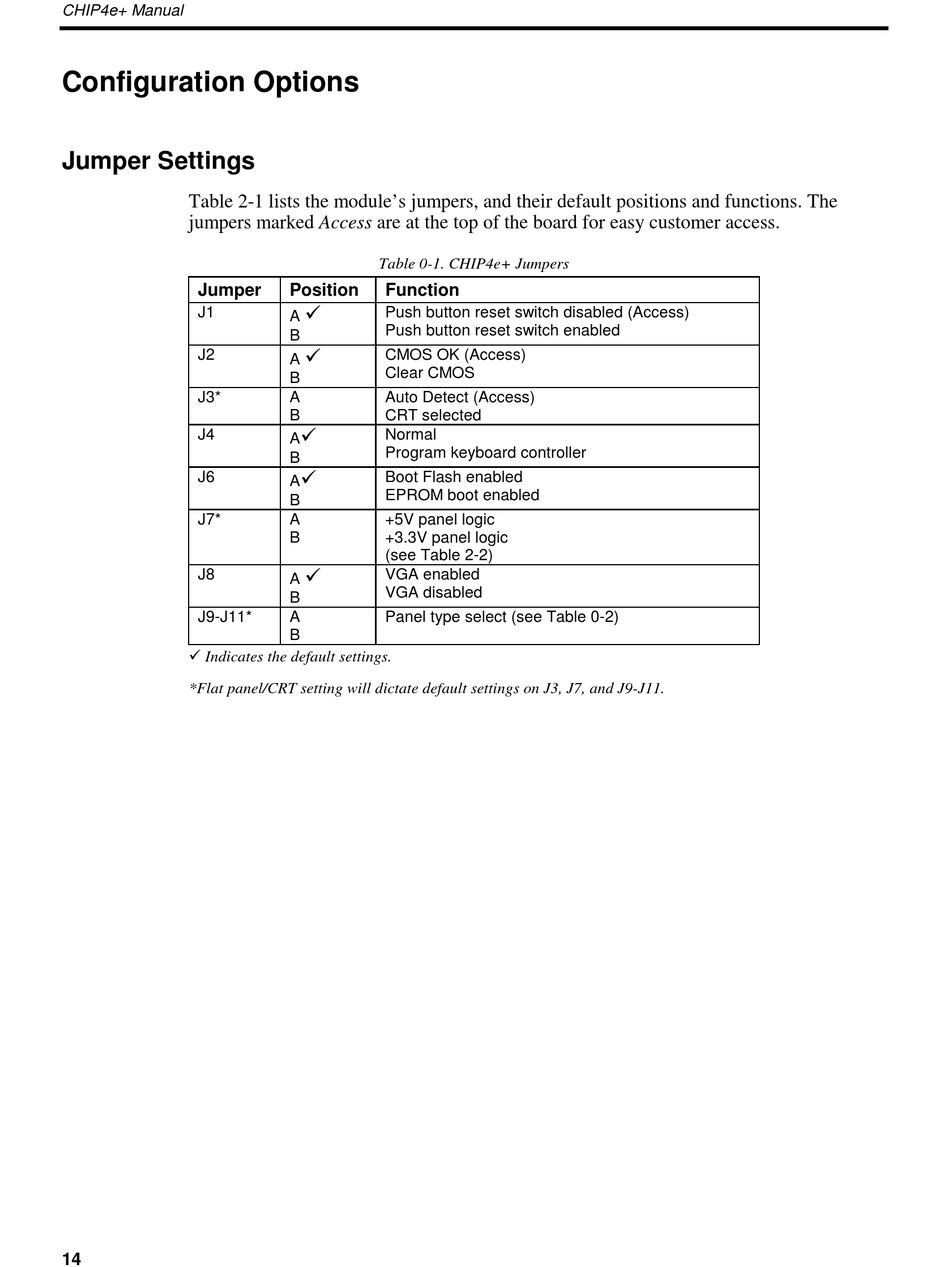

Table 2-1 lists the module's jumpers, and their default positions and functions. The
jumpers marked Access are at the top of the board for easy customer access.
Jumper
J1
J2
J3*
J4
J6
J7*
J8
J9-J11*
ü Indicates the default settings.
*Flat panel/CRT setting will dictate default settings on J3, J7, and J9-J11.
14
Table 0-1. CHIP4e+ Jumpers
Position Function
ü
Push button reset switch disabled (Access)
A
Push button reset switch enabled
B
ü
CMOS OK (Access)
A
Clear CMOS
B
A Auto Detect (Access)
B CRT selected
ü
Normal
A
Program keyboard controller
B
ü
Boot Flash enabled
A
EPROM boot enabled
B
A +5V panel logic
B +3.3V panel logic
(see Table 2-2)
ü
VGA enabled
A
VGA disabled
B
A Panel type select (see Table 0-2)
B
