Figure 2-1 Slc 8048 Unit (Front Side) - Part Number Slc 804812N-01-S - Lantronix SLC 8000 Series User Manual

status. If a single mode and a multi-mode are both installed the SLC 8000 unit, the
device can be configured to utilize one mode at a time.
Front Console Panel Ports (see

-
One serial console port (RJ45) for VT100 terminal or PC with emulation with LED for
activity indicators
- Two USB type A ports for use with flash drives or external USB modems
- Optional internal modem
- One Secure Digital (SD) memory card slot (SD card provided by the user)
- One RJ11 modem port on the front panel
Note:
card (Lantronix part number 56KINTMODEM-01) - see
page 43.
- LCD display and keypad
256 KB-per-port buffer memory for serial device ports

Software reversible device port pinouts

Either universal AC power input (100-240V, 50/60 Hz) or DC power input (20-72 VDC)

Note:
For more detailed information, see

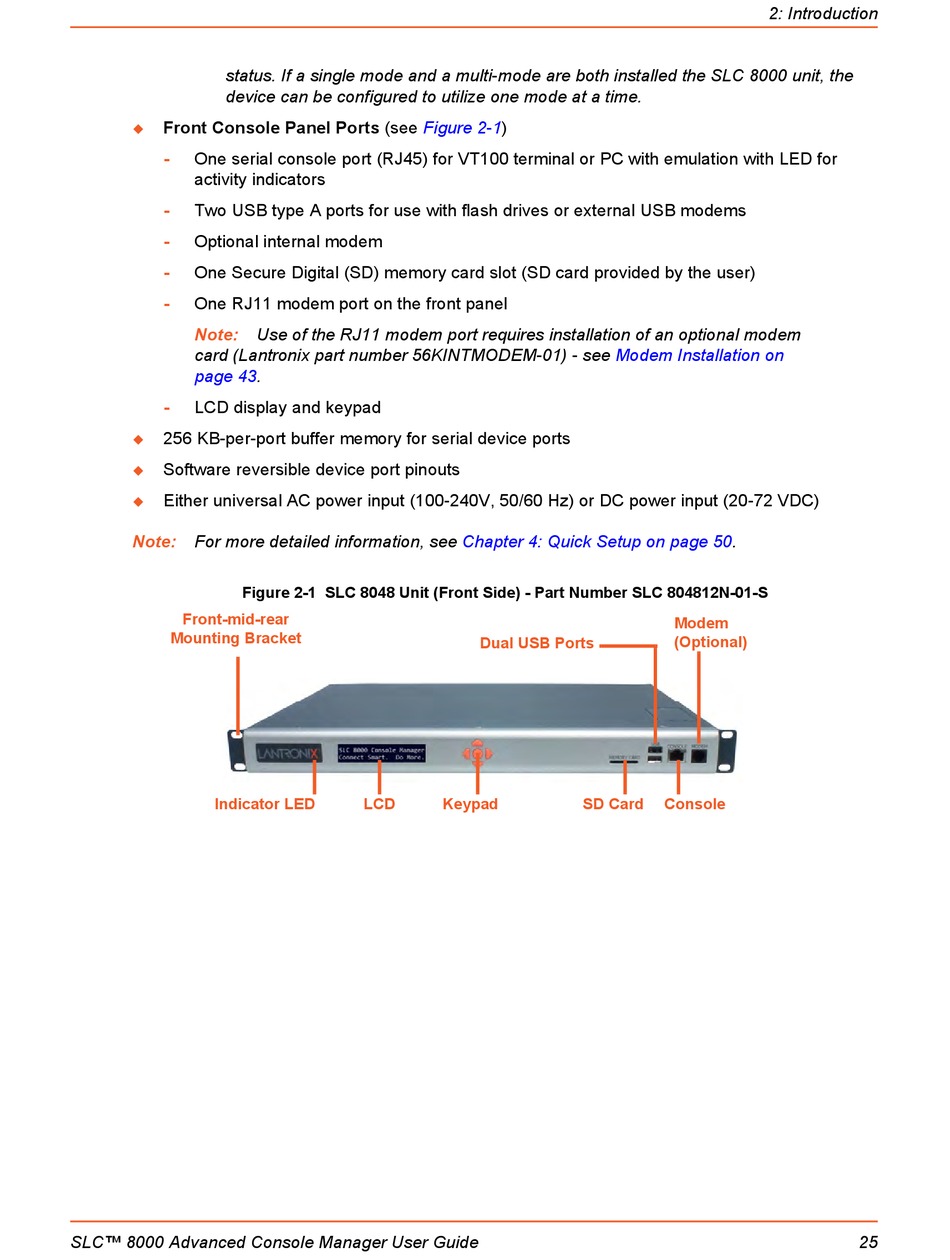

Figure 2-1 SLC 8048 Unit (Front Side) - Part Number SLC 804812N-01-S

Front-mid-rear
Mounting Bracket
Indicator LED
SLC™ 8000 Advanced Console Manager User Guide
Figure
Use of the RJ11 modem port requires installation of an optional modem
LCD
2-1)
Modem Installation on
Chapter 4: Quick Setup on page
Dual USB Ports
Keypad SD Card
2: Introduction
50.
Modem
(Optional)
