Related Manuals for Lantronix SISGM1040-284-LRT
Summary of Contents for Lantronix SISGM1040-284-LRT

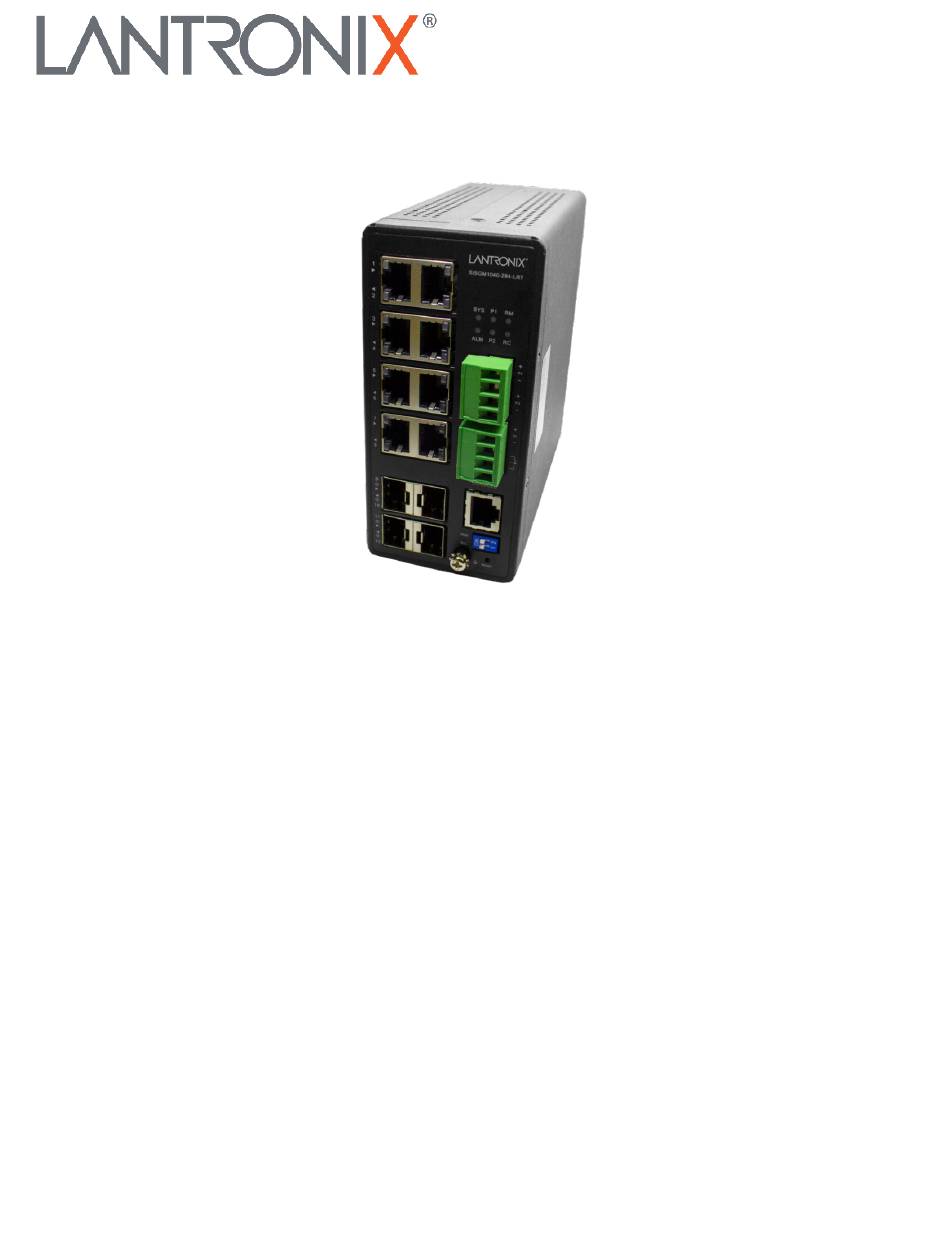

- Page 1 SISGM1040-284-LRT Managed Hardened Gigabit Ethernet Switch (8) 10/100/1000Base-T Ports + (4) 100/1000Base-X SFP Slots Install Guide Part Number 33808 Revision E October 2022...
- Page 2 Intellectual Property © 2022 Lantronix, Inc. All rights reserved. No part of the contents of this publication may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Lantronix is a registered trademark of Lantronix, Inc. in the United States and other countries.
-
Page 3: Safety Warnings And Cautions
Anyone using this product in such an application without express written consent of an officer of Lantronix does so at their own risk and agrees to fully indemnify Lantronix for any damages that may result from such use or sale. -
Page 4: Table Of Contents
Lantronix SISGM1040-284-LRT Install Guide Contents Safety Warnings and Cautions ............................. 3 Introduction ................................... 6 Features ..................................6 Benefits ..................................6 Ordering Information ..............................7 Specifications ................................7 Software Features ................................ 9 DC Power Consumption .............................12 Application Example ..............................13 About This Manual ..............................13 Related Manuals ................................14... - Page 5 Lantronix SISGM1040-284-LRT Install Guide User Information ..............................42 Innovation, Science and Economic Development Canada ICES-003 Compliance Label: ....... 42 RoHS, WEEE, and Environmental Programs ....................42 Declaration of Conformity ..........................42 Cautions and Warnings ............................. 42 Appendix A. Rapid Ring Operation ..........................43 Rapid Ring Operation .............................43...
-
Page 6: Introduction
SISGM1040-284-LRT also provides carrier Ethernet features such as OAM/CF, ERPS/EPS, and PTPv2, making it suitable for industrial and carrier Ethernet applications. The SISGM1040-284-LRT delivers eight 10M/100M/1G RJ45 ports, four GbE SFP ports and one RJ45 console port. SISGM1040-284-LRT provides high hardware performance and environment flexibility for industrial applications. -
Page 7: Ordering Information
SPS-UA12DHT Power Supply, Input: 90-264 VAC, 12VDC, 18 Watts output PS-DC-DUAL-5624T PS-DC-DUAL Series; Input: 100-240 VAC; 56VDC + 24V output SFPs See Lantronix full line of SFP transceivers on our webpage. EDCA-DIO-01 Enclosure Door Contact Alarm OCA-P181610 18x16x10” Polycarbonate Enclosure... - Page 8 Lantronix SISGM1040-284-LRT Install Guide Environmental Operating Operating Temperature Storage Temperature Altitude Humidity Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters 5% to 95% non-condensing -40 to +167⁰ -40 to +75⁰ -40 to +185⁰ -40 to +85⁰ < 10000 <3000 Dimension, Weights, Mounting...
-
Page 9: Software Features
Lantronix SISGM1040-284-LRT Install Guide Software Features Ring Management ITU-T G.8031 Supports ITU-T G.8031 Ethernet Linear Protection Switching ITU-T G.8032 Supports ITU-T G.8032 Ethernet Ring Protection Switching Rapid Ring Enables self-recovery time in less than 20ms The Media Redundancy Protocol data network protocol standardized IEC 62439-2 allows rings of Ethernet switches to overcome a single failure with recovery time much faster than with Spanning Tree Protocol. - Page 10 Lantronix SISGM1040-284-LRT Install Guide Snooping Supports 1024 multicast groups IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the IGMP Querier absence of a multicast router IGMP snooping with proxy reporting or report suppression actively filters IGMP...
- Page 11 Lantronix SISGM1040-284-LRT Install Guide Strict priority and weighted round-robin (WRR) Scheduling Queue assignment based on DSCP and class of service Port based 802.1p VLAN priority based Classification IPv4/IPv6 precedence / DSCP based Differentiated Services (DiffServ) ...
-
Page 12: Dc Power Consumption
• Perform on-demand backup and restore of device configuration ConsoleFlow • Perform secure remote device firmware upgrades • Lantronix-hosted public cloud offering Lantronix Provisioning Manager allows easy administration of Lantronix devices. LPM lets you quickly update firmware, update configuration, and provision one or more devices simultaneously. MTBF GB, GC - Ground Benign, Controlled 25°C... -
Page 13: Application Example
60 minutes later 1G SFP Port x 4 Application Example The SISGM1040-284-LRT switch is shown below in Industrial IOT and Surveillance applications. About This Manual This manual describes how to install, configure, and troubleshoot the switch, including how to: •... -
Page 14: Related Manuals
For Lantronix Documentation, Firmware, App Notes, etc. go to https://www.lantronix.com/technical-support/ Note that this manual provides links to third party web sites for which Lantronix is not responsible. Laser Safety Instructions When a connector is removed during installation, testing, or servicing, or when an energized fiber is broken, a risk of ocular exposure to optical energy that may be potentially hazardous occurs, depending on the laser output power. -
Page 15: Led Descriptions

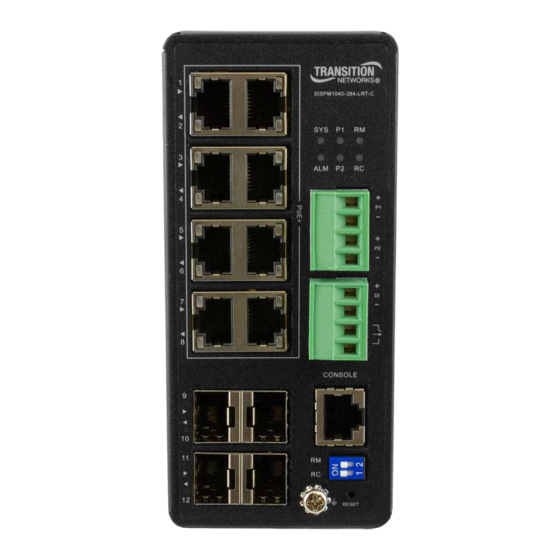

Lantronix SISGM1040-284-LRT Install Guide LED Descriptions The front panel LEDs provide switch status as follows: Power LEDs (P1 and P2): indicate whether the switch is powered up correctly. SYS (System) LED: indicates if the system is ready or not. ALM (Alarm) LED: indicates if the system is operating normally. - Page 16 Lantronix SISGM1040-284-LRT Install Guide ALM (Alarm) LED The ALM (Alarm) LED lights if the monitored temperature or internal voltages are exceeded. Issue critical stage for High / Low Voltage alarm (Power A or B Voltage) Lit Alarm LED in RED Color if Test-point (max) < Volts or if Test-point (min) < Volts.
- Page 17 Lantronix SISGM1040-284-LRT Install Guide Check the port status by reading the LED behaviors per the table below. Table 4: Port Status LEDs Color State Description The port is enabled and has established a link to the connected device, and Green the connection speed is 1000Mbps.
- Page 18 Lantronix SISGM1040-284-LRT Install Guide Table 5: RM (Ring Master) and RC (Rapid-Chain) LEDs RM (Ring Master) RC (Rapid-Chain) disable disable Green Ring Master is Enabled Rapid-Chain (Active path) Amber Ring Slave is Enabled Rapid-Chain (Backup path) Error: Rapid-Chain Switch did not find the...
-
Page 19: Installation
Lantronix SISGM1040-284-LRT Install Guide Installation This section describes switch mounting, grounding, cable connection, configuration, and power connection. Caution: Make sure you have read “Safety Warnings and Cautions” on page 2, “Safety Instructions” on page 17, “Power Supply Warnings & Cautions !!“... -
Page 20: Din Rail Mounting
Lantronix SISGM1040-284-LRT Install Guide DIN Rail Mounting Mounting steps: 1. Screw the DIN-Rail bracket on with the bracket and screws in the accessory kit. 2. Hook the unit over the DIN-Rail. 3. Push the bottom of the unit towards the DIN-Rail until it snaps into place. -
Page 21: Wall Mounting
Lantronix SISGM1040-284-LRT Install Guide Wall Mounting The Wall Mount Bracket WMBH-01 is an optional accessory that you must order separately. Mounting steps: 1. Screw on the wall-mount plate with the plate and screws in the accessory kit. 33808 Rev. E... -
Page 22: Ethernet Interface Connecting (Rj45 Ethernet)
Lantronix SISGM1040-284-LRT Install Guide Ethernet Interface Connecting (RJ45 Ethernet) The switch provides two types of electrical interfaces: RJ45 and optical (mini-GBIC). Connecting the Ethernet interface via RJ45: • To connect to a PC, use a straight-through or a cross-over Ethernet cable, •... -
Page 23: Ethernet Interface Connecting (Fiber, Sfp)
SFP module. Disconnect all cables before removing or installing an SFP module. For more information see the Lantronix manual specific to your SFP on the Lantronix SFP webpage. Fiber optics cable with LC duplex connector... -
Page 24: Alarm Relay (Digital Input And Digital Output Relay)
Lantronix SISGM1040-284-LRT Install Guide Alarm Relay (Digital Input and Digital Output Relay) Connecting the DI/DO (Digital Input / Digital Output) Relay 1. Insert the negative (ground)/positive DI/DO Relay wires into the terminals, respectively. 2. To keep the DI/DO Relay wires from pulling loose, use a small flat-blade screwdriver to tighten the wire-clamp screws on the front of the Terminal Block connector. -
Page 25: Digital Input And Digital Output Use Case
Lantronix SISGM1040-284-LRT Install Guide Digital Input and Digital Output Use Case The switch supports Digital Input and Digital Output. The Digital Input enables the switch to detect and log external device status (such as door intrusion detector). The Digital Output could be used to tell administrators if the switch port shows link down, link up or power failure. -
Page 26: Ground Screw
Lantronix SISGM1040-284-LRT Install Guide Ground Screw The front panel provides a ground screw. After the Switch is mounted and connected, the front panel grounding screw can be used for grounding. Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface before connecting devices. -
Page 27: Dip Switch (Ring Settings)
Lantronix SISGM1040-284-LRT Install Guide DIP Switch (Ring Settings) The front panel RM/CPL DIP switch lets you set Ring Settings. “DIP Switch (Ring Settings)” on page 27. Note that you can also configure Ring settings via the Web UI and CLI. -
Page 28: Power Supply Specifications
SISGM1040-284-LRT Install Guide Power Supply Specifications Various power supply models are available from Lantronix. Note that a Power Supply is not included (sold separately). Warning: You must use an isolated power supply in order for Lantronix to honor the warranty. -
Page 29: Industrial Power Supply 25165
Lantronix SISGM1040-284-LRT Install Guide Industrial Power Supply 25165 Features • Protected against Short Circuit, Overload, Over Voltage • Convection air cooling • DIN rail mountable • RoHS compliant • MTBF 968.1 Khrs • No load power consumption < 0.3W • Isolation class II •... -
Page 30: Industrial Power Supply 25130
Lantronix SISGM1040-284-LRT Install Guide Industrial Power Supply 25130 The 25130 (MDR-40-48) front panel has a DC OK LED and a +V ADJ screw. Features Variable AC input range Protected against Overload, Over Voltage Convection air cooling DIN rail mountable UL 508 approved... - Page 31 Lantronix SISGM1040-284-LRT Install Guide 25130 Layout and Dimensions 25130 Back Panel 33808 Rev. E https://www.lantronix.com/...
-
Page 32: Ps-Dc-Dual-5624T Stand-Alone Hardened Power Supply
Lantronix SISGM1040-284-LRT Install Guide PS-DC-DUAL-5624T Stand-Alone Hardened Power Supply This stand-alone power supply is designed to offer dual DC power output in extended temperature environments. It has a compact form factor and can be DIN rail mounted. Ordering Information PS-DC-DUAL-5624T: 345 Watt Power Supply with 56VDC and 24VDC dual output. -
Page 33: Sps-Ua12Dht Industrial Power Supply
Lantronix SISGM1040-284-LRT Install Guide SPS-UA12DHT Industrial Power Supply Features Input: 90 ~ 264 VAC; Output: 12 VDC, 1.3A, 18 Watts • • Protection:Short Circuit, Overload, Over Voltage, Overheating • Full load burn in test, RoHS compliant, MTBF 100.0 Khrs Specifications •... -
Page 34: Power Supply Mounting Instructions
Lantronix SISGM1040-284-LRT Install Guide Power Supply Mounting Instructions Mount as shown in figure only, with input terminals down, or else sufficient cooling will not be possible. Admissible DIN Rail: TS35/7.5 or TS35/15. For DIN Rail fastening: 1. Tilt the unit slightly rearwards. -
Page 35: Power Supply Installation
Lantronix SISGM1040-284-LRT Install Guide Power Supply Installation Each power supply is a DIN rail power supply with a 150% peak load capability (3 seconds) and high efficiency of up to 94%. They can be mounted on a TS35 Standard DIN rail. -
Page 36: Connecting Power
Lantronix SISGM1040-284-LRT Install Guide Connecting Power ATTENTION This case must be earth grounded. No DC input may be earth grounded. Use Isolated Power Supply. The switch can be powered from two power supplies (input range 12V ~ 58V). Insert the positive and negative wires into P1+ and P1- contacts on the terminal block and tighten the wireclamp screws to prevent the wires from being loosened. -
Page 37: Connect And Log In Via The Console Port
Port 22 (In Windows, you can run a terminal emulator such as PuTTY) CLI Initialization and Configuration (Optional) 1. Connect a PC to the SISGM1040-284-LRT Ethernet port (RJ45 Ethernet port). 2. In Telnet, enter the command telnet 192.168.1.77. 3. Login with default account and password (Username: admin / Password: admin). -
Page 38: Connect The Switch To A Windows 10 Pc
Lantronix SISGM1040-284-LRT Install Guide Connect the Switch to a Windows 10 PC Refer to your PC and OS documentation for more information. Go to your PC’s Control Panel > Network and Internet. Click on Network and Sharing Center. Click on Change adapter settings. -
Page 39: Troubleshooting
If the switch fails, isolate and correct the fault by determining the answers to the following questions and then taking the indicated action. First isolate the problem to the SISGM1040-284-LRT; troubleshoot any other network gear (e.g., other switches, remote devices like IP cameras, WAPs, midspan injectors, etc.) to isolate the problem to the SISGM1040-284-LRT. -
Page 40: Box Label And Device Label
Describe any action(s) already taken to resolve the problem (e.g., changing mode, resetting, etc.): _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ The model # and serial # of all other Lantronix products in the network: ______________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ Describe your network environment (layout, cable type, cable distance, etc.): ____________________________... -
Page 41: Compliance Information
Lantronix SISGM1040-284-LRT Install Guide List Lantronix or third party equipment in the network (e.g., PCs, servers, switches, routers, or hubs, remote devices (camera, etc.), SFPs, etc.): ____________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ _________________________________________________________________________________________ Compliance Information CE/EN 55022 EN55024 FCC part 15 approval Class A... -
Page 42: User Information
Manufacture’s Name: Lantronics, Inc. Manufacture’s Address: 48 Discovery, Suite 250, Irvine, California 92618 Declares that the products: SISGM1040-284-LRT Hardened Managed Ethernet Switch Conforms to the following Product Regulations: FCC Part 15 Class A, EN 55032:2015/AC:2016 Class A, EN 61000-3-2:2014, EN 61000-3-3:2013 and EN 55024:2010/A1:2015 (IEC 61000-4-2 Edition 2.0 2008-12, IEC 61000-4-3 Edition 3.2 2010-04, IEC 61000-4-4... -
Page 43: Appendix A. Rapid Ring Operation
Lantronix SISGM1040-284-LRT Install Guide Appendix A. Rapid Ring Operation Rapid Ring Operation Rapid Ring is a proprietary redundancy network ring protocol. It can be used to recover the network from critical link failure to provide fault failover protection. Many redundant or network recovery protocols are defined by IEEE, such as spanning tree (STP, RSTP, MSTP) are available to recover the network from link failures. -
Page 44: Rm And Rc Led Descriptions
Lantronix SISGM1040-284-LRT Install Guide RM and RC LED Descriptions The table below describes RM (Ring Master) and RC (Rapid Chain) LED status: Table 2: LED Status Color State Description Green Ring Master has been detected in the switch. Amber Ring Member has been detected in the switch. - Page 45 Irvine, CA 92618, USA Toll Free: 800-526-8766 Phone: 949-453-3990 Fax: 949-453-3995 Technical Support +1.952.358.3601, 1.800.260.1312, or https://www.lantronix.com/technical-support/ Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at www.lantronix.com/about/contact. 33808 Rev. E https://www.lantronix.com/...
