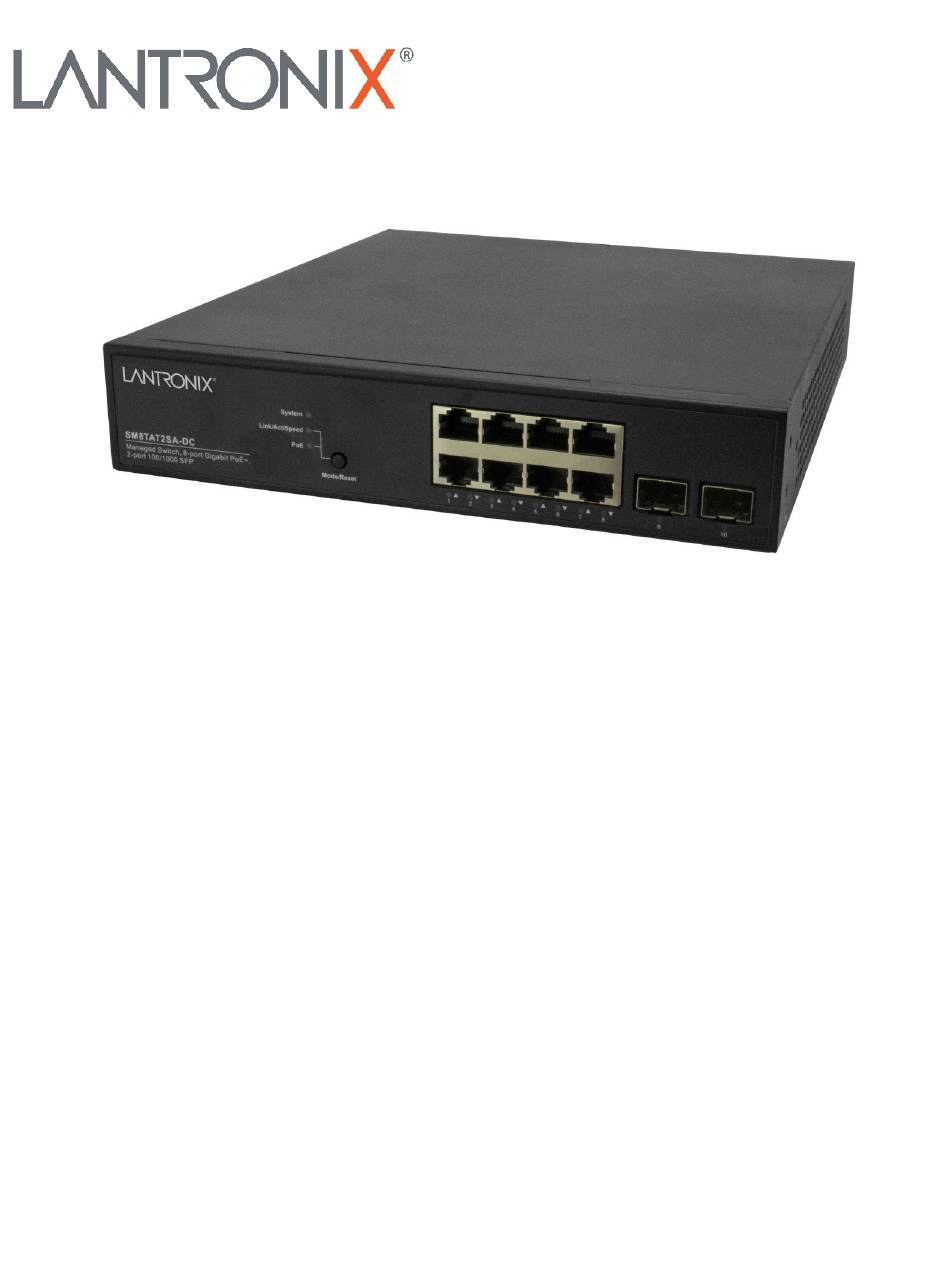

- Page 1 SM8TAT2SA-DC DC-Powered Smart Managed Gigabit Ethernet PoE+ Switch (8) 10/100/1000Base-T Ports + (2) 100/1000Base-X SFP Slots Install Guide Part Number 33814 Revision C August 2023...
- Page 2 SM8TAT2SA-DC Install Guide Intellectual Property © 2022, 2023 Lantronix, Inc. All rights reserved. No part of the contents of this publication may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Lantronix and Lantronix Spider are registered trademarks of Lantronix, Inc. in the United States and other countries.
- Page 3 Seller and user shall be noticed that this equipment is suitable for electromagnetic equipments for office work (Class A) and it can be used outside home. Changes or modifications made to this device that are not explicitly approved by Lantronix will void the user's authority to operate this device.
-
Page 4: Table Of Contents
Lantronix SM8TAT2SA-DC Install Guide Contents Product Description ..............................6 About This Manual ..............................6 Ordering Information ..............................6 Related Documentation ..............................6 Application Example ..............................7 Features ..................................7 PoE Features ................................8 Device Management System (DMS) ........................8 Software Features ..............................8 Specifications ................................8 Software Feature Descriptions ..........................10 Front and Back Panels ............................ - Page 5 Lantronix SM8TAT2SA-DC Install Guide Initial Switch Configuration via Web Browser ...................... 33 Connect the Switch to Your Windows 10 PC ...................... 34 Initial Switch Configuration via CLI ........................34 Troubleshooting ............................... 35 Troubleshooting PoE Problems ........................... 36 Box Label and Device Label ..........................37 Record Device and System Information ......................
-
Page 6: Product Description
L2 features with better functionality and usability. It delivers the cost-effectively business and transports Ethernet services via fiber or copper connections. The SM8TAT2SA-DC delivers 8 (10M/100M/1G) RJ45 with 8 PoE+ (supports 802.3 at/af and total up to 130W) ports and 2 GbE SFP ports. The SM8TAT2SA-DC provides high hardware performance and environment flexibility for SMBs and Enterprises. -
Page 7: Application Example
Lantronix SM8TAT2SA-DC Install Guide Application Example The SM8TAT2SA-DC is used in applications such as: • IP surveillance, supplying power and data to IP cameras Connecting and remotely powering wireless access points • Monitoring/managing attached powered devices from various vendors •... -
Page 8: Poe Features
Lantronix SM8TAT2SA-DC Install Guide PoE Features • Compliant with IEEE 802.3at PoE+ • Compliant with IEEE 802.3af PoE • PoE configuration • Auto Power Reset (APR) Device Management System (DMS) Graphical Monitoring – Topology view, Floor view, Map view •... - Page 9 Lantronix SM8TAT2SA-DC Install Guide Dimensions, Weight, Mounting Dimension (WxHxD) Weight Mounting Type Millimeters Inches Kilograms Pounds 1.49 Kg. w/o Pkg. 3.30 Lbs. w/o Pkg 220x 44x 242 8.6x 1.7x 9.5 19’’ Rack Mount 1.90 Kg. w/Pkg. 4.20 Lbs. w/Pkg. Voltage and Frequency...
-
Page 10: Software Feature Descriptions
Lantronix SM8TAT2SA-DC Install Guide Voltage Fluctuations European Standard EN 61000-3.3 Software Feature Descriptions Layer 2 Switching Standard Spanning Tree 802.1d Spanning Tree Rapid Spanning Tree (RSTP) 802.1w Protocol (STP) Multiple Spanning Tree (MSTP) 802.1s Link Aggregation Control Protocol (LACP) IEEE 802.3ad ... - Page 11 Lantronix SM8TAT2SA-DC Install Guide Quality of Service (QoS) Supports 8 hardware queues Hardware Queue Strict priority and weighted round-robin (WRR) Scheduling Queue assignment based on DSCP and class of service Port based Classification 802.1p VLAN priority based ...
- Page 12 Lantronix SM8TAT2SA-DC Install Guide Power Consumption DC power consumption measured after 60 minutes under full loading with wire speed forwarding. DC 52V Input: DC Current DC Power DC Voltage Device Status Device Interface Consumption Consumption BTU/Hr. Non-loading None 0.11 5.72 19.51...
-
Page 13: Front And Back Panels

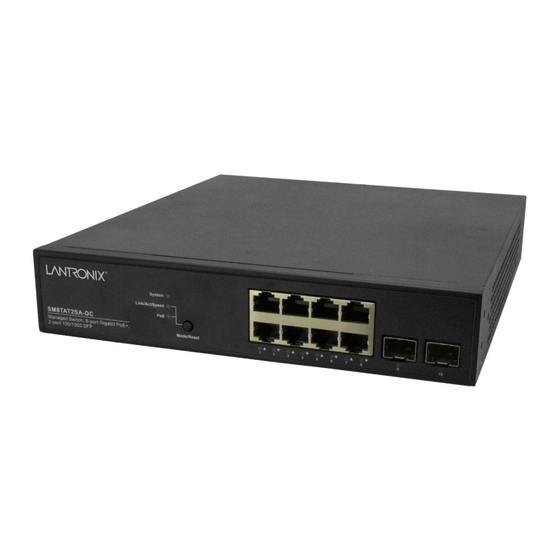

Front Panel The SM8TAT2SA-DC front panel provides the switch LEDs, ports, and MODE/RESET pushbutton switch. Back Panel The SM8TAT2SA-DC back panel provides the +52 to +54VDC or -52 to -54VDC power input connection. Page 13 of 41 33814 Rev. C... -
Page 14: Led Descriptions
Lantronix SM8TAT2SA-DC Install Guide LED Descriptions The LEDs on the front panel provide switch status checking and monitoring. The types of LEDs are as follows: System LED Indicates if the switch is powered up correctly, indicates if there is a system alarm triggered for troubleshooting. - Page 15 Lantronix SM8TAT2SA-DC Install Guide By pressing the MODE/RESET button for less than 2 seconds to change LED modes (Link/Act/Speed Mode or PoE Mode) you can check the port status by reading the LED behaviors per the table below. Table 3: Port Status LEDs...
-
Page 16: Mode/Reset Button
Lantronix SM8TAT2SA-DC Install Guide When PoE Mode LED Lit Color State Description Green The port is enabled and supplying power to connected device. An abnormal state, such as overload status, has been detected in the Amber switch. RJ45 Ports The port has no active network cable connected, or it is not connected a PoE PD device. -
Page 17: Installation
Lantronix SM8TAT2SA-DC Install Guide Installation This section describes switch mounting, grounding, cable connection, configuration, and power connection. Caution: Before proceeding make sure you have read “Power Supply Warnings & Cautions !!“on page Package Checklist Verify that the box contains the following items: □... -
Page 18: Rack Mount Dimensions
Lantronix SM8TAT2SA-DC Install Guide Rack Mount Dimensions SM8TAT2SA-DC with Rack Mount Brackets Rack Mount Brackets Page 18 of 41 33814 Rev. C https://www.lantronix.com... -
Page 19: Rack Mounting
Lantronix SM8TAT2SA-DC Install Guide Rack Mounting 1. Attach the mounting brackets to both sides of the chassis. Insert screws and tighten then with a screwdriver to secure the brackets. 2. Place the switch in the rack. Align the oval holes in the brackets with the mounting holes in the rack posts. -
Page 20: Mounting The Switch On Desk Or Shelf
Lantronix SM8TAT2SA-DC Install Guide Mounting the Switch on Desk or Shelf Step 1: Verify that the workbench is sturdy and reliably grounded. Step 2: Attach the four adhesive rubber feet to the bottom of the switch. Attaching the Rubber Feet Grounding The back panel provides a ground screw. - Page 21 Neither DC input polarity may be earth grounded. If DC power distribution bus has one side tied to earth ground, then the use of an isolated DC-DC power Supply between the DC power distribution bus and SM8TAT2SA-DC is required to ensure that the PoE ports are isolated from earth ground as required by IEEE802.3af/at/bt specification.
-
Page 22: Safety: Equipment Using -48V Dc Power Supplies
Lantronix SM8TAT2SA-DC Install Guide SAFETY: Equipment Using -48V DC Power Supplies Systems using -48V DC Power Supplies are intended for restricted access locations (dedicated equipment rooms, equipment closets, or similar) in accordance with Articles 110-5 (conductors), 110-6 (conductor sizes), 110-11... -
Page 23: Ethernet Interface Connecting (Rj45 Ethernet)
To connect to a PC, use a straight-through or a cross-over Ethernet cable. • To connect the SM8TAT2SA-DC to an Ethernet device, use UTP (Unshielded Twisted Pair) or STP (Shielded Twisted Pair) Ethernet cables. The RJ-45 connector pin assignments are shown below. -
Page 24: Poe Deployment Environments A And B
Environment B applications, i.e. building to building, copper to copper endpoint connections: 1) use an Ethernet network isolator module (PoE disabled), or 2) use mid-span injector(s) such as Lantronix’ MIL-L100i or L1000i-at, between this switch’s PSE port and link partner PD port. -
Page 25: Ethernet Interface Connecting (Fiber, Sfp)
SFP module. Disconnect all cables before removing or installing an SFP module. SFP webpage For more information see the manual specific to your SFP on the Lantronix Fiber optics cable with LC duplex connector Connect the optical fiber to the SFP socket... -
Page 26: Console Connection
To connect the host PC to the console port, an RJ45 (male) connector-to-RS232 DB9 (female) connector cable is required. The RJ45 connector of the cable is connected to the Console port of the SM8TAT2SA-DC. The DB9 connector of the cable is connected to the PC COM port. The console cable pin assignments are shown below: Page 26 of 41 33814 Rev. -
Page 27: Power Supply Warnings & Cautions
Optional Power Supplies The SM8TAT2SA-DC can be powered by either of two optional power supplies. Both the 25105 and 25104 power supplies are optional accessories that you must order separately. Power Connection Warning: Connect the power supply to the switch first while powered off, and then connect the power supply to power. -
Page 28: 25105 Industrial Din Rail Mounted Power Supply
Lantronix SM8TAT2SA-DC Install Guide 25105 Industrial DIN Rail Mounted Power Supply For more information see the 25105 Product page. Features (SDR-120-48) 91% High Efficiency 150% Peak Load Protected against Short Circuit, Overload, Over Voltage, and Overheating Convection air cooling DIN rail mountable... -
Page 29: 25104 Industrial Din Rail Mounted Power Supply
Lantronix SM8TAT2SA-DC Install Guide 25104 Industrial DIN Rail Mounted Power Supply For more information see the 25104 Product page. Description: Industrial DIN Rail Mounted Power Supply; Input: 85-264 VAC, 124-370 VDC; Output: 48~55 VDC, 5.0A, 240 Watts. Features (SDR-240-48) 94% High Efficiency... -
Page 30: Power Supply Mounting Instructions
Lantronix SM8TAT2SA-DC Install Guide Power Supply Mounting Instructions Mount as shown in figure only, with input terminals down, or else sufficient cooling will not be possible. Admissible DIN Rail: TS35/7.5 or TS35/15. For DIN Rail fastening: 1. Tilt the unit slightly rearwards. -
Page 31: Power Supply Installation
Lantronix SM8TAT2SA-DC Install Guide Power Supply Installation Each power supply is a DIN rail power supply with a 150% peak load capability (3 seconds) and high efficiency of up to 94%. They can be mounted on a TS35 Standard DIN rail. -
Page 32: Connecting Power
Or if the PD device is not isolated, then the chassis or earth voltage potential between the PD and SM8TAT2SA-DC must be maintained at the same voltage to eliminate the possibility of a voltage breakdown in the PD device or the SM8TAT2SA-DC. -
Page 33: Initial Switch Configuration
6. Enter the factory default username and password in login page. 7. Click “Login” to log into the switch. Note: The factory default Username and Password of the switch are both admin. See the SM8TAT2SA-DC Web User Guide for more information. Page 33 of 41 33814 Rev. C... -
Page 34: Connect The Switch To Your Windows 10 Pc
Lantronix SM8TAT2SA-DC Install Guide Connect the Switch to Your Windows 10 PC On your Win 10 PC, go to Control Panel > Network and Internet. Click on Network and Sharing Center. Click on Change adapter settings. Select the first available Ethernet connection: Right click on it and go to Properties. -
Page 35: Troubleshooting
If the switch fails, isolate and correct the fault by determining the answers to the following questions and then taking the indicated action. First isolate the problem to the SM8TAT2SA-DC by troubleshooting other network gear (e.g., other switches, IP cameras, WAPs, midspan injectors, etc.) to isolate the problem to the SM8TAT2SA- 1. -
Page 36: Troubleshooting Poe Problems
WAPs. The actual power requirement can be advertised by the powered device, and the unused class power is returned to the switch power budget. Typical PD Power Requirements □ 1.8 Watts: Lantronix’ M/GE-ISW-SFP-01-PD (Class 1 Powered Device (0.44 Watts - 3.84 Watts). □ 13W: IP Camera, VoIP Phone, Wireless Access Point, Networked Audio. □... -
Page 37: Box Label And Device Label
Describe any action(s) already taken to resolve the problem (e.g., changing mode, resetting, etc.): __________________________________________________________________________________________ __________________________________________________________________________________________ The model # and serial # of all other Lantronix products in the network: ________________________ __________________________________________________________________________________________ Describe your network environment (layout, cable type, cable distance, etc.): ____________________________... -
Page 38: User Information
Lantronix SM8TAT2SA-DC Install Guide User Information Caution: changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class A device, pursuant to part 15 of the FCC Rules. -
Page 39: Declaration Of Conformity
Lantronix SM8TAT2SA-DC Install Guide Declaration of Conformity Manufacture’s Name: Lantronics, Inc. Manufacture’s Address: 7535 Irvine Center Drive, Suite 100, Irvine, California 92618 Declares that the products: SM8TAT2SA-DC Conforms to the following Product Regulations: FCC Part 15 Class A, EN 55032:2012, EN 55024:2010... -
Page 40: Ps 25104 Uk Declaration Of Conformity
Lantronix SM8TAT2SA-DC Install Guide PS 25104 UK Declaration of Conformity Page 40 of 41 33814 Rev. C https://www.lantronix.com... - Page 41 Toll Free: 800-526-8766 Phone: 949-453-3990 Fax: 949-453-3995 Technical Support https://www.lantronix.com/technical-support/ Online: Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at www.lantronix.com/about/contact. Page 41 of 41 33814 Rev. C https://www.lantronix.com...
