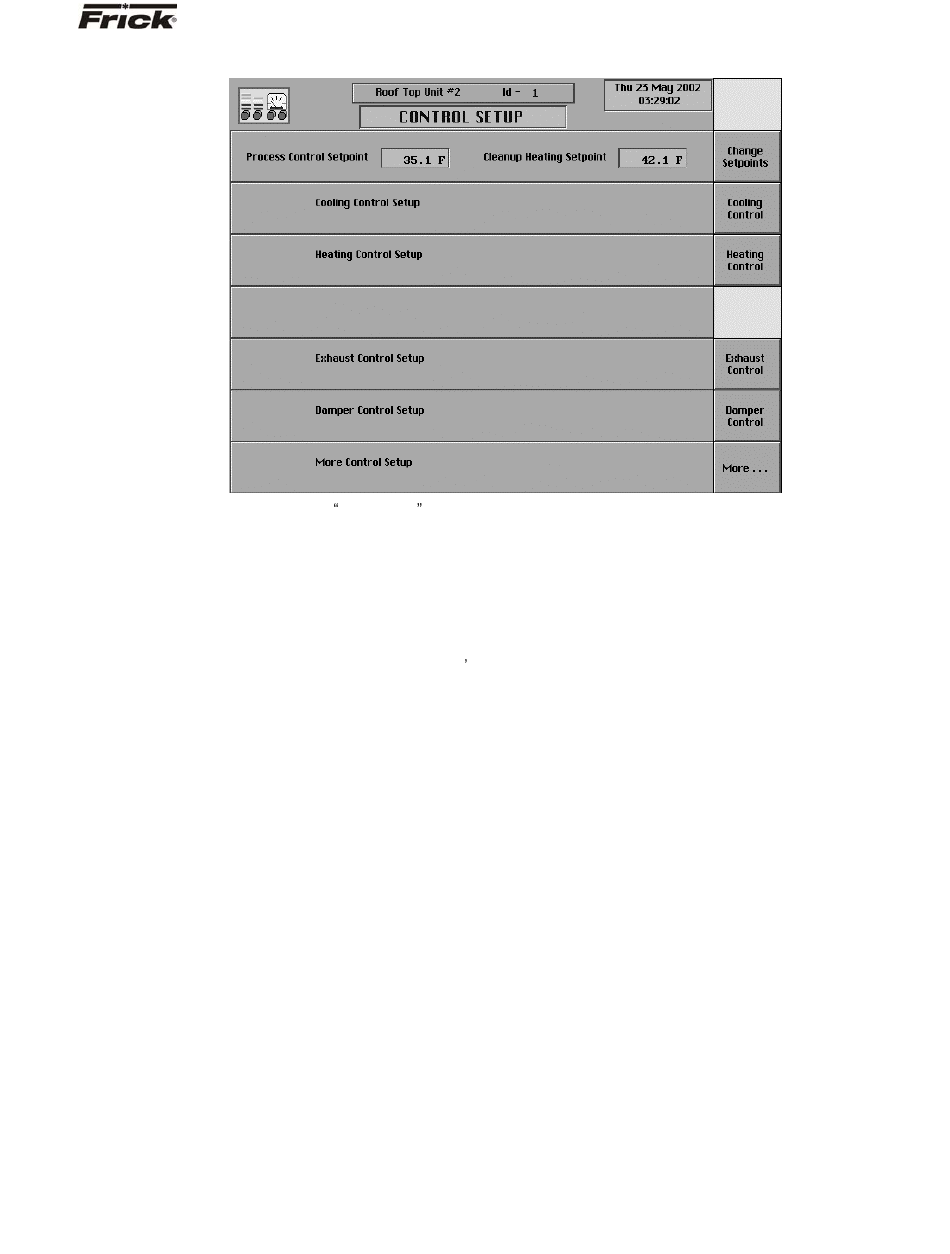

MAIN MENU SELECTION - "CONTROL SETUP" (2) SCREEN

This screen is accessible from the Main Menu screen
when Security is set to "Full Access". These setpoints
should not need to be changed during daily operation of
the unit.
From this screen, the operator can access the screens
that are used to setup the cooling and heating control
setpoints along with controlling the dampers and exhaust
fans. After responding [OK] to changing these control
setpoints, they are written to the ACUair
EPROM and read back from there to be re-displayed.
EPROM memory is non-volatile and all information is
retained even if the power to the panel is lost. This
process is used to confirm that an ACUair
properly receives control setpoint changes.
This screen has the following setpoints:
Process Control Setpoint - During Process Mode,
Return Air Temperature is maintained at this setpoint.
Cleanup Heating Setpoint -
®
FRICK QUANTUM™ ACUair
OPERATION
® GCU board s
® control board
®
CONTROL PANEL
The following are the "Control Setup" screen selections:
· [Cooling Control Setup]
· [Heating Control Setup]
· [Preheat Control Setup]
· [Exhaust Control Setup]
· [Damper Control Setup]
· [Humidity Control]
·
[Safety Setpoints]
·
[Defrost Control]
· [Var. Fan Control]
· [Analog Aux. Input]
· [Analog Aux. Output]
