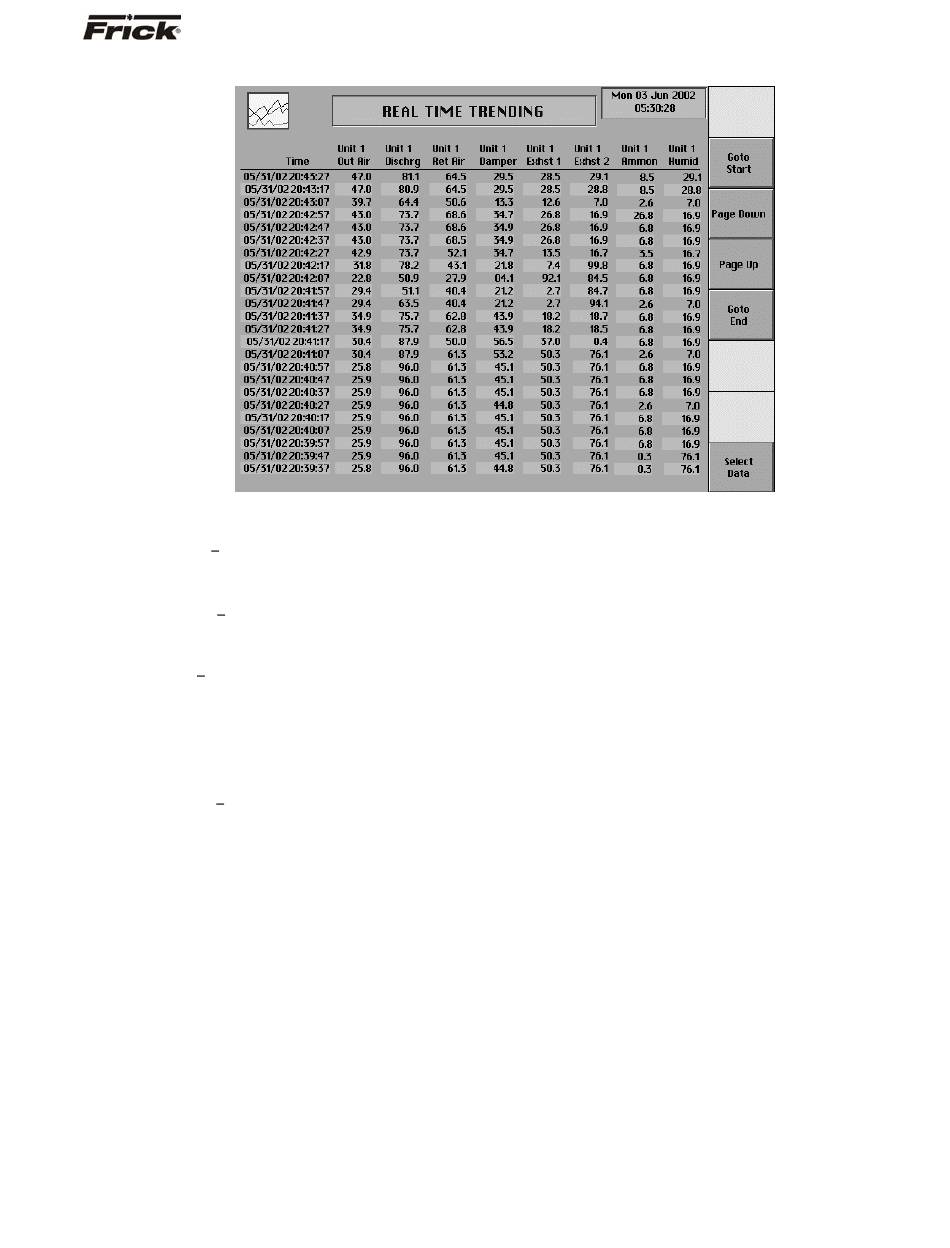

PANEL STATUS - "REAL TIME TRENDING" SCREEN – DATA LOG VIEW
The following screen command keys are provided:
Will cause the most recent page of
[Goto Start]
trending data to be shown, with the latested entry
appearing at the top.
[Page Down] If not at the end of the entries, this
will display the entries that have occurred since the
current page.
If not already at the beginning of the
[Page up]
entries, this will display the entires that have occurred
previous to the current page.
[Goto End] – If not already at the end of the entries,
this will cause the very earliest page of entries to be
displayed.
Changes the screen command keys
[Select Data]
to the following selections of data to show:
· Unit 1 Out Air
· Unit 1 Discharge
· Unit 1 Return Air
· Unit 1 Spare Temperature
· Unit 1 Damper
· Unit 1 Exhaust 1
· Unit 1 Exhaust 2
· Unit 1 Ammonia
· Unit 1 Humidity
· Unit 1 Room Pressure
· Unit 1 Coil Temperature
· Unit 2 Out Air
· Unit 2 Discharge
· Unit 2 Return Air
· Unit 2 Spare Temperature
· Unit 2 Damper
· Unit 2 Exhaust 1
®
FRICK QUANTUM™ ACUair
OPERATION
®
CONTROL PANEL
· Unit 2 Exhaust 2
· Unit 2 Ammonia
· Unit 2 Humidity
· Unit 2 Room Pressure
· Unit 2 Coil Temperature
· Unit 3 Out Air
· Unit 3 Discharge
· Unit 3 Return Air
· Unit 3 Spare Temperature
· Unit 3 Damper
· Unit 3 Exhaust 1
· Unit 3 Exhaust 2
· Unit 3 Ammonia
· Unit 3 Humidity
· Unit 3 Room Pressure
· Unit 3 Coil Temperature
· Unit 2 Out Air
· Unit 4 Discharge
· Unit 4 Return Air
· Unit 4 Spare Temperature
· Unit 4 Damper
· Unit 4 Exhaust 1
· Unit 4 Exhaust 2
· Unit 4 Ammonia
· Unit 4 Humidity
· Unit 4 Room Pressure
· Unit 4 Coil Temperature
Only eight of these data selections may be activated for
recording at any one time. If eight items are selected, and
you wish to view one more, you will first need to de-
activate one that is already choosen first. Selected data
items will appear with an asterisk (*) in front of the data on
this listing.
